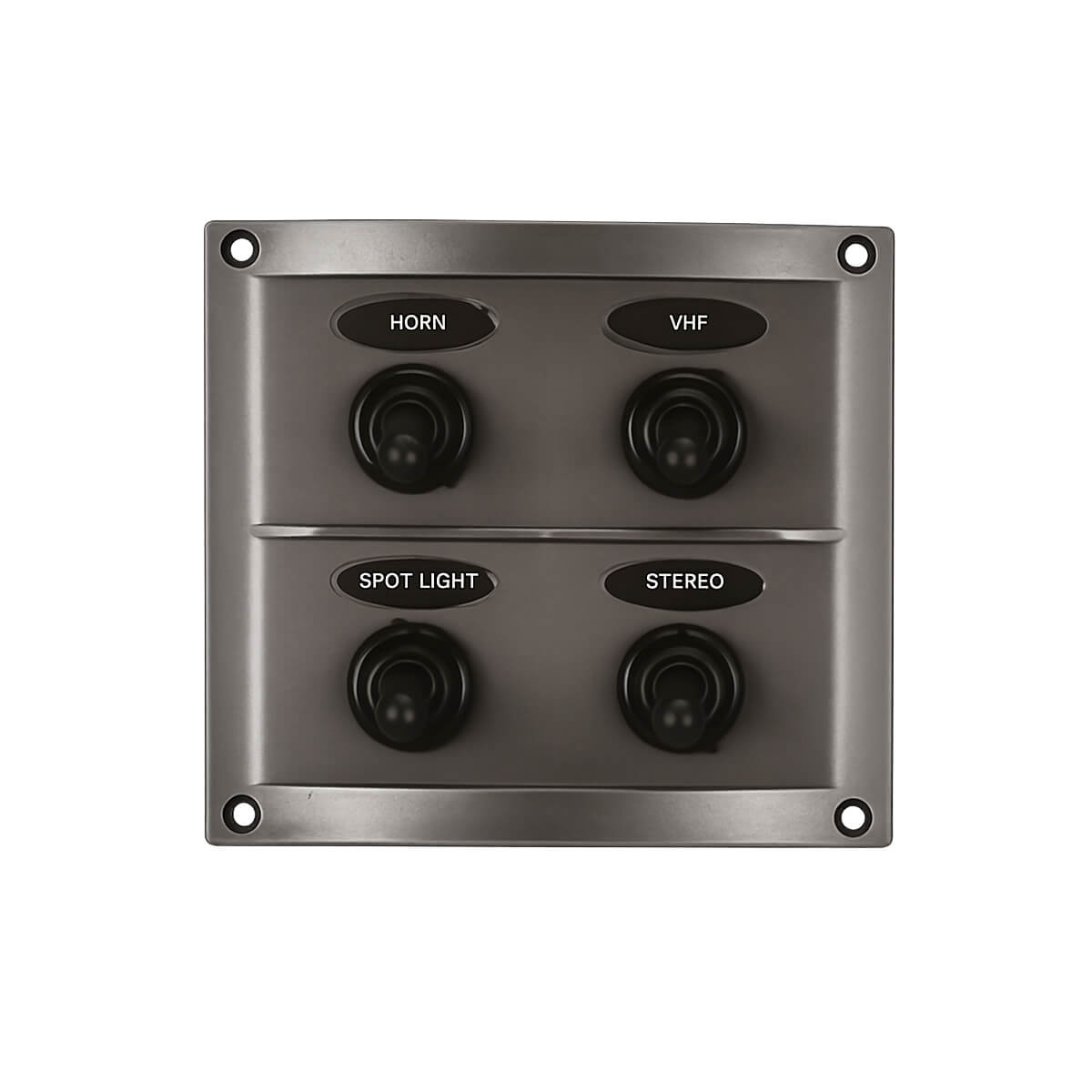

The AAA 4 Gang Toggle Switch Panel is a compact 12V marine electrical control panel designed to manage up to four onboard circuits from one organised location. It is suitable for boat owners, marine installers, yacht technicians, fishing boat operators, and other users who need a simple way to control essential 12V equipment. This marine switch panel can be used for circuits such as navigation lights, horn, VHF radio, cabin lighting, spreader lights, stereo systems, pumps, and other compatible low-voltage accessories.

Built with a UV-stabilized plastic panel, this 4 gang boat switch panel is available in black and grey finish options. The UV-stabilized material is suitable for marine environments where electrical components may be exposed to sunlight, moisture, salt air, and regular onboard use. Its compact size of 97.2mm x 109.4mm x 13.5mm helps it fit neatly into dashboards, helm consoles, control panels, instrument areas, and other limited-space mounting locations on boats and marine vessels.

Each panel includes four neoprene-capped toggle switches and LED spreader indicators to help identify the status of the connected circuits. The capped toggle switches help protect the switch area from moisture and dust during normal marine use. This makes the panel suitable for helm stations, cockpit consoles, cabin control areas, centre consoles, and enclosed or semi-exposed marine electrical locations. The panel carries an IP65 rating for protection against dust and water ingress, making it a practical waterproof switch panel option for many marine installations.

The AAA 4 Gang Toggle Switch Panel is pre-cabled and equipped with two 15A fuses. These fuses provide circuit protection for connected accessories according to the panel design. This model uses fuses rather than circuit breakers, so buyers should confirm the power requirements of each connected device and ensure proper installation by a qualified marine electrician where required. The pre-cabled layout can help keep marine wiring more organised compared with installing individual switches separately.

For clear circuit identification, the panel is supplied with pre-printed labels. The label set includes different common marine equipment names, allowing users to choose suitable labels for their connected accessories. Examples shown include Horn, VHF, Spot Light, and Stereo. Additional label options support clearer switch identification for different boat systems. Clearly labelled controls can make it easier to identify electrical functions while operating a vessel, especially when several accessories are installed in the same helm or dashboard area.

This marine toggle switch panel is designed for 12V DC systems only. It is suitable for a range of marine applications where four independently controlled electrical circuits are needed. Whether installed on a small fishing boat, centre-console boat, yacht tender, cabin cruiser, workboat, pontoon boat, or other 12V marine vessel, the panel provides a clean and practical electrical control solution. Its compact four-switch layout makes it useful for new installations, dashboard upgrades, or replacement of an older boat switch panel.

The black version offers a darker control-panel appearance, while the grey version provides an alternative finish for different dashboard and console designs. Both variants have the same confirmed 12V operating voltage, UV-stabilized plastic construction, 4-gang configuration, IP65 protection rating, pre-printed labels, and two 15A fuses. The product is intended for controlling suitable marine electrical accessories and should be installed according to proper marine wiring practices.

Key Features:

• 4 gang marine toggle switch panel for controlling four separate 12V circuits
• Designed for 12V DC marine electrical systems
• Available in black and grey UV-stabilized plastic panel variants
• Compact panel size: 97.2mm x 109.4mm x 13.5mm
• Four neoprene-capped toggle switches
• LED spreader indicators for circuit status visibility
• Pre-cabled design for organised installation
• Equipped with 15A fuses x 2 pcs
• IP65-rated protection against dust and water ingress
• Pre-printed switch labels included
• Suitable for marine dashboards, helm stations, cockpit consoles, and control panels
• Useful as a boat switch panel, marine switch panel, toggle switch panel, or waterproof switch panel

Applications / Suitable For:

• Boat navigation light control
• Horn switch control
• VHF radio power control
• Cabin light and cockpit light circuits
• Spreader light and spot light control
• Marine stereo and entertainment systems
• Fishing boat electrical accessories
• Yacht tender and small craft electrical panels
• Centre-console and helm dashboard upgrades
• Replacement of existing 12V marine switch panels
• Suitable low-voltage marine pumps, instruments, and electronics where correctly rated

FAQs:

Q: Is this AAA 4 Gang Toggle Switch Panel suitable for 12V boats?
A: Yes. This panel is designed for 12V DC electrical systems.

Q: Does this marine toggle switch panel include circuit breakers?
A: No. It is cabled and equipped with two 15A fuses, not circuit breakers.

Q: Are labels included with the boat switch panel?
A: Yes. Pre-printed labels are included for clear identification of switch functions.

Q: Is this panel suitable for exposed marine areas?
A: The panel has an IP65 rating for protection against dust and water ingress. It is suitable for many marine control-panel locations, but it should not be treated as submersible.
