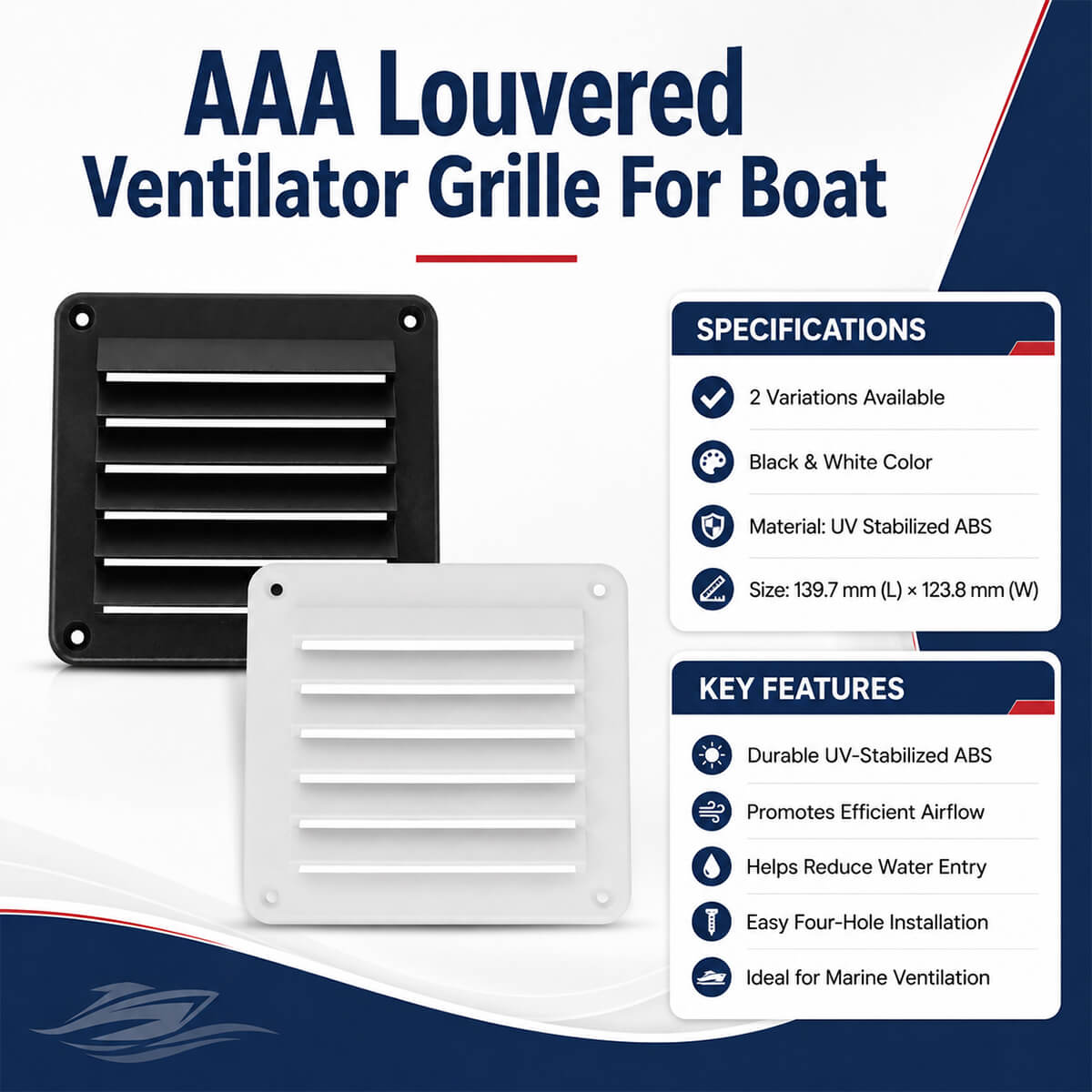

AAA Louvered Ventilator Grille For Boat is a compact marine ventilation grille designed to cover ventilation openings and support passive air circulation in boats and other suitable installations. Its fixed horizontal louvres allow air to pass through the opening while providing a neat, finished appearance. The grille can be used where enclosed areas require a practical ventilation opening, including cabins, lockers, storage spaces and equipment compartments.

Manufactured from UV-stabilized ABS, this boat ventilator is suitable for installations exposed to sunlight and everyday marine conditions. ABS offers a lightweight and practical alternative to metal ventilation grilles, while the UV-stabilized construction helps reduce material degradation caused by regular sun exposure. Because the grille contains no electrical components or moving mechanisms, it provides a simple passive ventilation solution that does not require a power connection.

The AAA Louvered Ventilator Grille For Boat measures 139.7 mm long by 123.8 mm wide. Its compact, nearly square profile is useful for smaller ventilation openings and areas where installation space is limited. Four pre-formed mounting holes—one near each corner—provide straightforward surface fastening to a suitable panel or structure. Installers should check the opening dimensions, mounting surface, required airflow, and available clearance before fitting. Suitable marine-grade fasteners should be selected according to the installation surface and operating environment.

This plastic vent is available in two colour variations: black and white. These options make it easier to coordinate the ventilator grille with different hull interiors, cabin panels, consoles, doors, lockers and equipment areas. The black version is identified as 13575-BK, while the white version is identified as 13575-WH. Both variations have the same 139.7 mm × 123.8 mm dimensions and UV-stabilized ABS construction.

The louvered face creates a tidy cover for an air opening while helping limit direct visibility through it. The fixed slats are angled in one direction, so the mounting orientation should be selected according to the installation location. This marine vent is intended as a grille for passive air transfer; it is not an electric blower, powered extractor fan, or complete ducted ventilation system. The actual airflow available will depend on the opening behind the grille, the surrounding air movement and the overall ventilation arrangement.

Regular ventilation can help reduce stagnant air in enclosed boat spaces. This makes a louvered vent useful in locations such as storage lockers, cabin partitions, interior doors and selected equipment enclosures where passive airflow is required. However, the grille should not be treated as a watertight closure. Installation in locations exposed to direct spray, boarding water or heavy weather should be carefully evaluated, and additional protection may be required depending on the vessel and application.

Before installation, confirm that the mounting area is flat, clean, and suitable for drilling or fastening. Position the grille over the prepared opening, check its alignment, and mark the four fixing points. Avoid overtightening the fasteners, as excessive pressure may damage plastic components. Periodic cleaning with fresh water and a mild cleaning solution can help remove salt, dust, and surface dirt. Harsh solvents and abrasive materials should be avoided to protect the ABS surface.

Key Features:

• AAA Louvered Ventilator Grille For Boat features a compact fixed-louvre design for passive air transfer through prepared openings.
• Manufactured from UV-stabilized ABS for a lightweight and practical marine ventilation solution.
• Measures 139.7 mm (L) × 123.8 mm (W).
• Available in black and white to coordinate with different panels, interiors, and installation areas.
• Black model: 13575-BK; white model: 13575-WH.
• Four corner mounting holes support straightforward surface installation.
• Fixed horizontal louvres provide a clean finished appearance and help reduce direct visibility through the vent opening.
• Requires no electrical supply, wiring, or powered operating mechanism.
• Compact size is suitable for installations where available panel space is limited.
• Easy-to-clean plastic construction supports routine marine maintenance.

Applications / Suitable For:

• AAA Louvered Ventilator Grille For Boat is suitable for covering passive ventilation openings in boats and other compatible marine installations.
• Cabin partitions and suitable interior wall panels requiring air transfer.
• Boat lockers, cupboards and general storage compartments where passive airflow is needed.
• Interior doors, access panels and selected equipment enclosures.
• Marine refurbishment, repair and replacement of a similarly sized plastic vent.
• Boat-building projects requiring a compact black or white ventilator grille.
• Other compatible applications where a 139.7 mm × 123.8 mm UV-stabilized ABS louvered vent is appropriate.

FAQs:

Q: What is the AAA Louvered Ventilator Grille For Boat used for?
A: It covers a prepared ventilation opening and supports passive airflow in suitable boat cabins, lockers, partitions, storage areas, and equipment compartments.

Q: What size is the AAA Louvered Ventilator Grille For Boat?
A: The grille measures 139.7 mm long × 123.8 mm wide. Check the mounting area and required opening before installation.

Q: Which colours are available for the AAA Louvered Ventilator Grille For Boat?
A: It is available in black and white. The model references are 13575-BK for black and 13575-WH for white.

Q: Is the AAA Louvered Ventilator Grille For Boat an electric fan?
A: No. It is a fixed louvered ventilator grille for passive air transfer and contains no fan, wiring, or powered mechanism.
