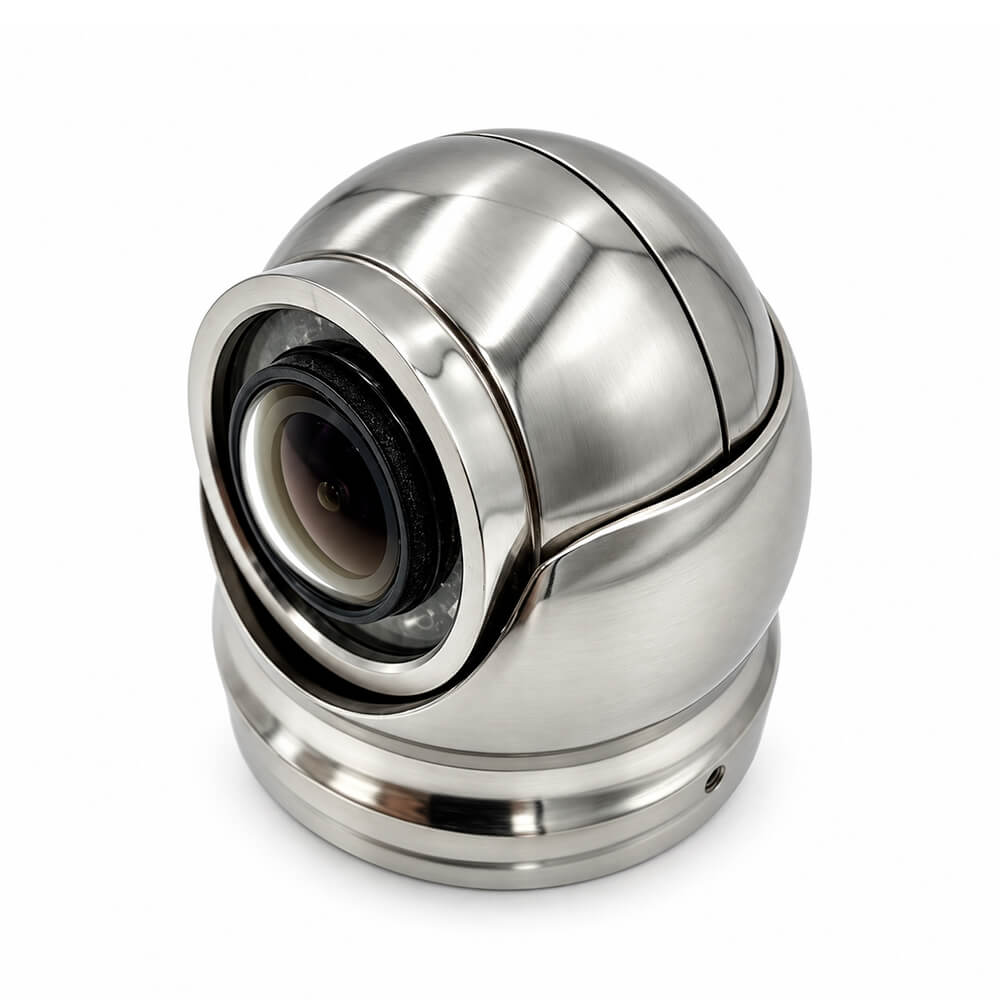

B&G IP CAM-1 1080p Marine Camera With Night Vision gives you a live view of selected areas on and around your boat through a compatible B&G display. This marine IP camera can be positioned to watch the stern while reversing, check the anchor area, observe sail positions, or keep an eye on people on deck. It can also face forward to provide another view ahead of the boat. For buyers who already use a compatible Zeus™ 3, Zeus 3S, or Glasshelm display, it brings camera footage into the onboard display setup.

The camera captures video at 1920 × 1080 resolution and uses a 1.8 mm wide-angle lens. The wide view is useful when one camera needs to cover an area such as the aft deck or a position near the bow. High-performance infrared LEDs support viewing at night and in dark areas, with a stated IR range of 10 metres. That makes the IP CAM-1 a practical choice when you want to check a camera view in changing light conditions, from a bright deck during the day to an unlit area after dark. Its night vision is intended to help you see the area in the camera’s field of view; the actual view will still depend on where and how the camera is installed.

The housing is made from 316 stainless steel and is designed for mounting locations exposed to the marine environment. This matters for a boat camera installed near saltwater, where equipment may face regular exposure to spray and the elements. The installation position should be chosen according to the area you need to monitor. A rear-facing camera can provide a view behind the vessel, while a forward-facing installation can show an area ahead. Other positions may be useful for viewing an anchor location, sail position, or part of the deck. The camera’s purpose is to add a visual reference at the helm or another compatible display location.

The B&G camera comes preconfigured for compatible Zeus™ 3, Zeus 3S, and Glasshelm displays. It can receive power through Power over Ethernet (PoE) or a 12V supply, giving installers two stated power options when planning the boat’s network and wiring. Multiple IP CAM-1 cameras can be added to the vessel’s network, and the user can cycle through their views on a compatible display. This is useful when one camera position cannot cover every area of interest. Before fitting the camera, check the exact display model, available network connections, power arrangement, and intended mounting position so the installation suits the vessel.

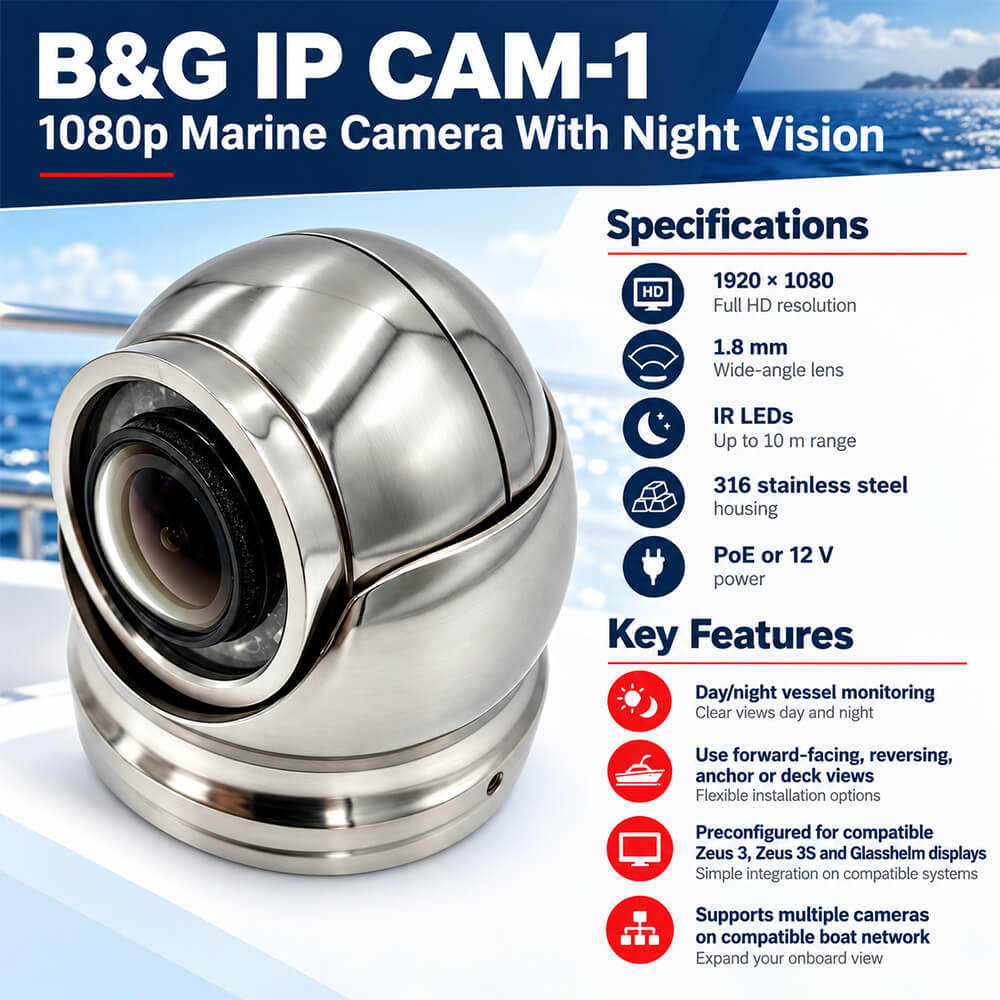

Key Features:

• B&G IP CAM-1 1080p Marine Camera With Night Vision provides live camera views on compatible Zeus™ 3, Zeus 3S, and Glasshelm displays.
• Its 1920 × 1080 resolution provides a detailed view of the area being monitored.
• A 1.8 mm wide-angle lens helps cover a broader area from the selected mounting position.
• Infrared LEDs support operation at night or in dark areas, with a stated range of 10 metres.
• The 316 stainless steel housing is designed for use in exposed saltwater environments.
• Power options include Power over Ethernet (PoE) or a 12V supply.
• Multiple cameras can be connected to the boat’s network, with views cycled on a compatible display.

Applications / Suitable For:

• B&G IP CAM-1 1080p Marine Camera With Night Vision is suitable for viewing areas of a boat that are difficult to see directly from the helm.
• Rear-facing installation for a camera view behind the vessel when reversing.
• Forward-facing installation for an additional view of the area ahead.
• Monitoring an anchor location, sail positions, or people on deck.
• Boats equipped with a compatible B&G Zeus™ 3, Zeus 3S, or Glasshelm display and a suitable camera network connection.
• Installations that benefit from several camera positions and the ability to cycle between their views on a compatible display.

FAQs:

Q: Can B&G IP CAM-1 1080p Marine Camera With Night Vision show images after dark?
A: Yes. Its infrared LEDs support night and dark-area viewing, with a stated IR range of 10 metres.

Q: Which B&G displays are listed as compatible with B&G IP CAM-1 1080p Marine Camera With Night Vision?
A: B&G lists compatible Zeus™ 3, Zeus 3S, and Glasshelm displays. Check your exact display model before installation.

Q: Can B&G IP CAM-1 1080p Marine Camera With Night Vision be powered by PoE?
A: Yes. It supports Power over Ethernet or a 12V power supply.

Q: Can I use more than one B&G IP CAM-1 1080p Marine Camera With Night Vision?
A: Yes. Multiple cameras can be added to the boat’s network, and you can cycle through their views on a compatible display.
