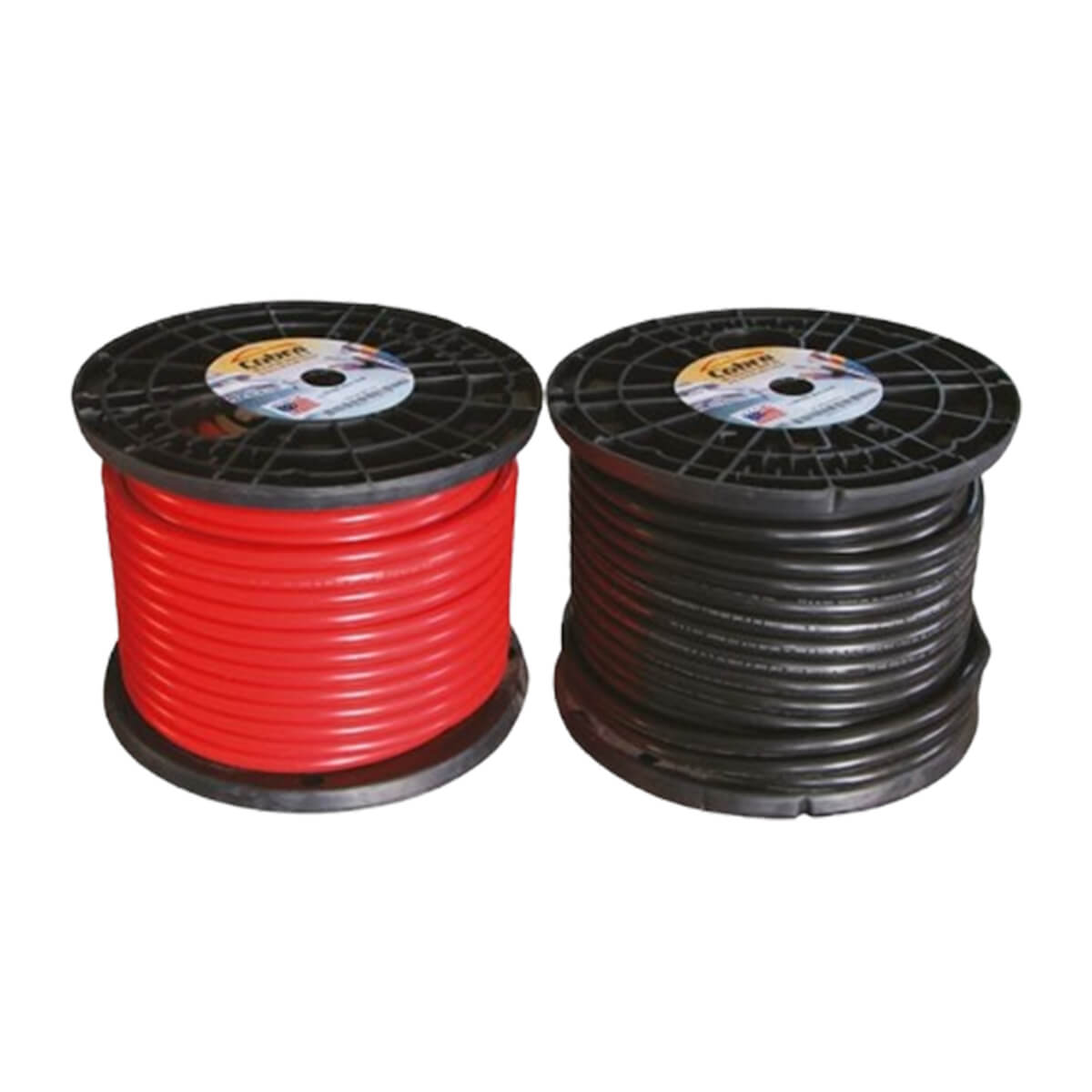

Cobra Extra Flexible Marine Battery Cable | Tinned Copper Battery Wire For Boats (16mm²-50mm²) is a heavy-duty, single-conductor marine grade wire designed for battery circuits, charging systems, electrical panels, motor leads, and power connections. It belongs to the marine electrical cable and marine battery cable category and is manufactured with soft-drawn, Class K stranded tinned copper conductors. The fine-stranded construction provides the flexibility needed for routing cable through confined spaces, control cabinets, engine compartments, and other installations where rigid wire may be difficult to handle. Its tinned copper construction also helps protect the conductor against corrosion in moisture-prone electrical environments.

This Cobra marine battery cable uses flame-retardant polyvinyl chloride insulation with a VW-1 rating. The insulation is designed to resist moisture, abrasion, acid, diesel fuel and oil, making the cable suitable for demanding marine and electrical installations. It has a rated operating temperature of 105°C in dry conditions and 75°C in wet conditions, with a stated voltage rating of 600/1000 volts. The product is specified to UL 1426 and UL Listed BC-5W2 requirements. UL 1426 covers electrical cables intended for boats, including stranded copper boat cables with defined wet and dry temperature ratings.

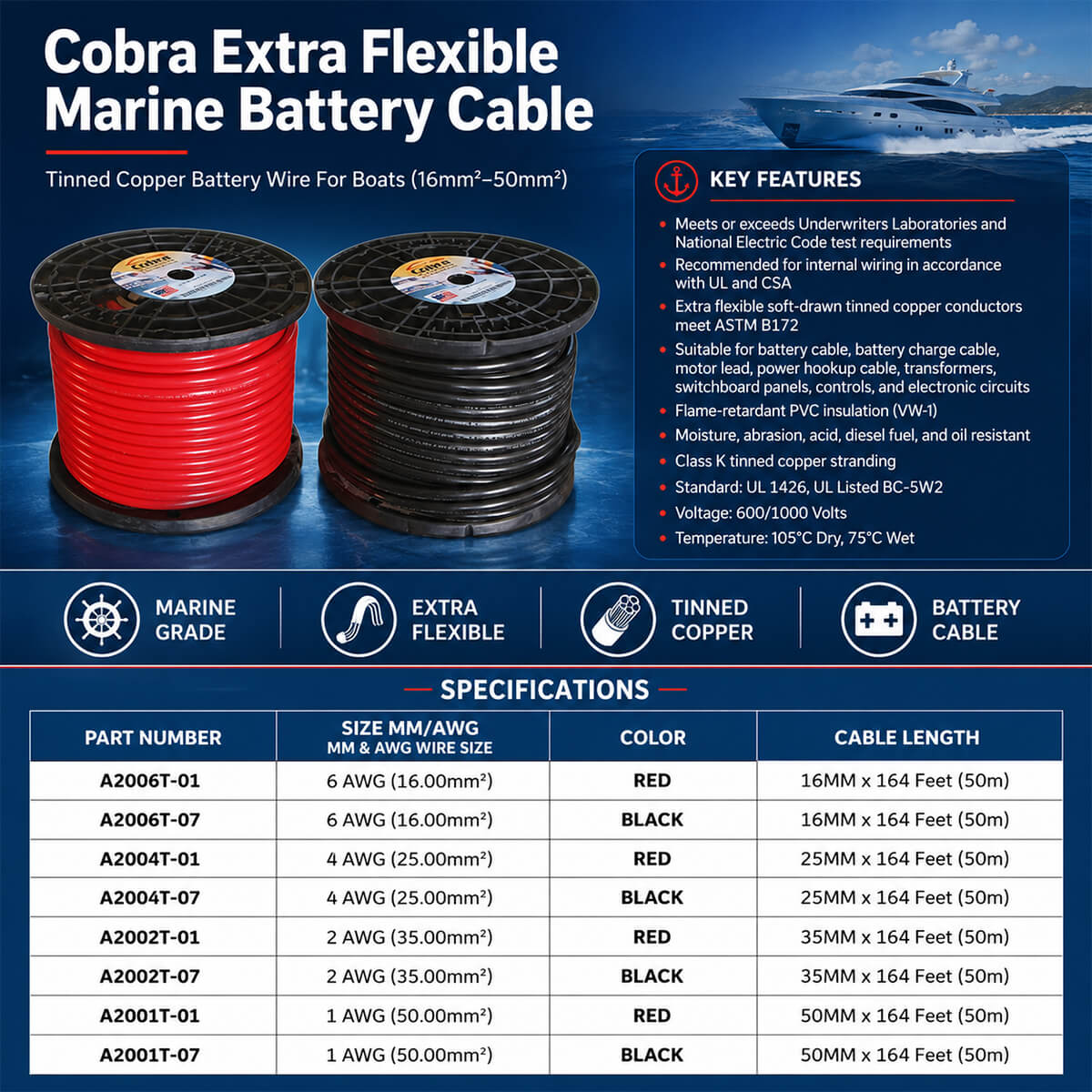

The available conductor sizes are 16mm² or 6 AWG, 25mm² or 4 AWG, 35mm² or 2 AWG, and 50mm² or 1 AWG. Each size is supplied in red and black, allowing positive and negative battery connections to be identified clearly. The 16mm² cable is listed with 266 strands of 30 AWG wire, a nominal outside diameter of 0.342 inches, and a reference rating of 118 amps. The 25mm² version uses 420 × 30 stranding, has a nominal outside diameter of 0.386 inches, and is listed at 157 amps. The 35mm² cable uses 665 × 30 stranding, measures approximately 0.446 inches in outside diameter, and is listed at 213 amps. The largest 50mm² option uses 836 × 30 stranding, has a nominal outside diameter of 0.520 inches, and is listed at 246 amps. All listed options are supplied on 50-metre or 164-foot reels.

The extra flexible conductors meet ASTM B172, which covers rope-lay-stranded copper electrical conductors made with bunch-stranded members, including Class K constructions and conductors manufactured with tin-coated copper wire. This construction makes the cable suitable not only as a marine battery cable but also for battery charger connections, transformers, switchboard panels, electronic circuits, control systems, motor leads, and general power hook-up applications. The combination of flexible tinned copper, resistant PVC insulation, multiple conductor sizes, and red or black identification provides a practical cable option for professional boat wiring and other heavy-duty electrical work.

Key Features:

• Cobra Extra Flexible Marine Battery Cable | Tinned Copper Battery Wire For Boats (16mm²-50mm²) combines fine-stranded Class K tinned copper conductors with flexible PVC insulation for easier routing and installation.
• Available in four conductor sizes: 16mm² or 6 AWG, 25mm² or 4 AWG, 35mm² or 2 AWG, and 50mm² or 1 AWG.
• Red and black cable options support clear identification of positive and negative electrical connections.
• Soft-drawn tinned copper conductors meet ASTM B172 requirements for flexible stranded electrical conductors.
• Flame-retardant VW-1 polyvinyl chloride insulation.
• Resistant to moisture, abrasion, acid, diesel fuel, and oil.
• Rated at 600/1000 volts.
• Temperature rating of 105°C dry and 75°C wet.
• Specified to UL 1426 and UL Listed BC-5W2.
• Supplied in 50-metre or approximately 164-foot cable reels.

Applications / Suitable For:

• Cobra Extra Flexible Marine Battery Cable | Tinned Copper Battery Wire For Boats (16mm²-50mm²) is suitable for boat battery wiring, battery charging circuits and other high-capacity onboard electrical connections.
• Marine electrical systems on boats, yachts, and other pleasure craft.
• Battery cable and battery charger cable installations.
• Switchboard panels and electrical distribution equipment.
• Transformers, control panels, and electronic circuits.
• Motor lead and power hook-up cable applications.
• Installations requiring flexible heavy-duty battery cables that are easier to route around bends and through limited spaces.
• Electrical environments where cable insulation may be exposed to moisture, oil, diesel fuel, acid, or abrasion.

FAQs:

Q: What sizes are available for the Cobra Extra Flexible Marine Battery Cable | Tinned Copper Battery Wire For Boats (16mm²-50mm²)?
A: It is available in 16mm² or 6 AWG, 25mm² or 4 AWG, 35mm² or 2 AWG, and 50mm² or 1 AWG.

Q: Is this marine battery cable made from tinned copper?
A: Yes. It uses soft-drawn, Class K stranded tinned copper conductors manufactured to ASTM B172 specifications.

Q: What colours and reel lengths are available?
A: Each cable size is available in red and black. The listed cable length is 50 metres or approximately 164 feet per reel.

Q: Can this cable be used only for boat batteries?
A: No. In addition to marine battery connections, it is suitable for battery chargers, switchboard panels, transformers, control systems, electrical circuits, motor leads, and power hook-up applications.
