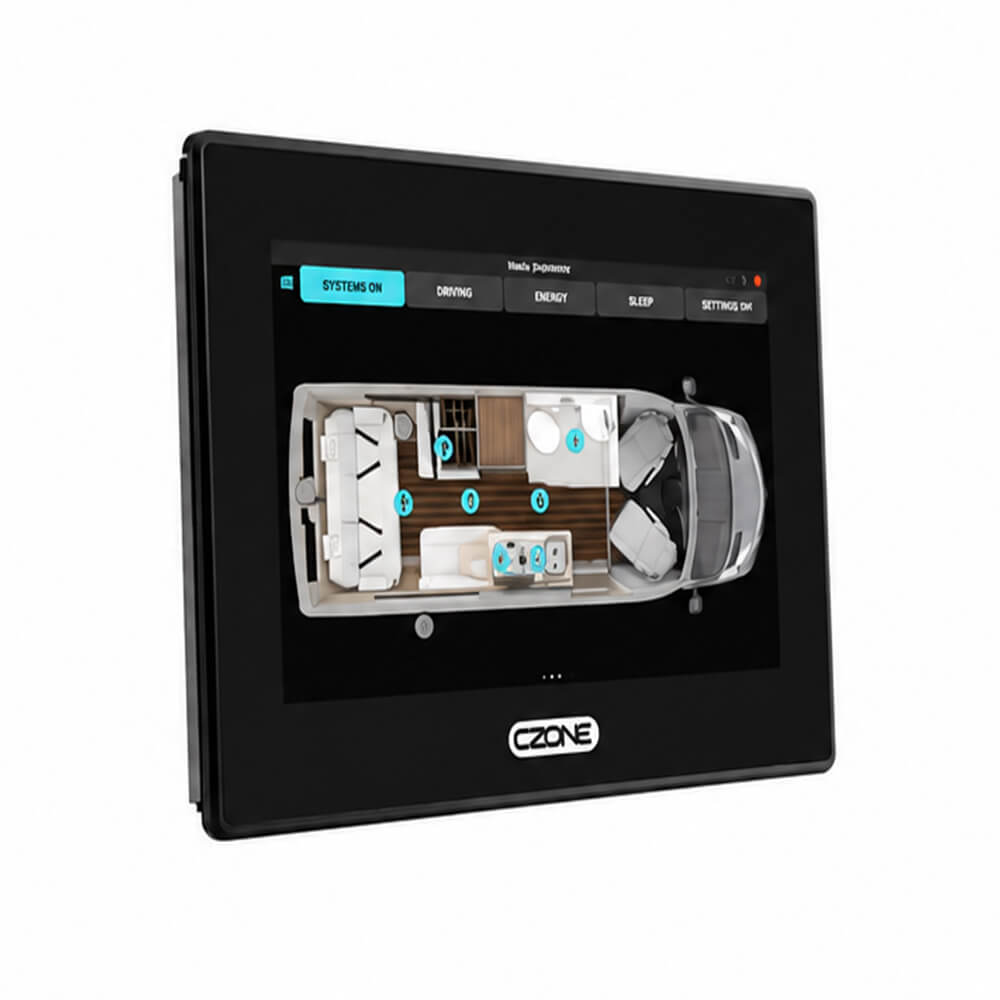

CZone Touch 7 Marine Touchscreen Display – 7-Inch LCD With WiFi is a touchscreen control and monitoring display for a configured CZone digital switching system. Model 80-911-0200-00 provides an accessible interface for viewing electrical system information and operating connected functions through the CZone 2.0 User Interface. For boat and yacht owners, it brings configured controls and monitoring pages together on one screen. Favourite pages can be customised to display frequently used switches and information, while vessel-specific layouts and schematics can place controls and alerts alongside the relevant areas of the boat. The functions available depend on the connected equipment and system configuration.

The 7-inch, optically bonded LCD uses IPS technology for wide viewing angles, helping users read the display from different positions around an interior control station. Its 1024 × 600-pixel resolution and 24-bit RGB colour depth provide clear presentation of interface graphics, control buttons and system information. A projected capacitive touchscreen allows direct interaction with the on-screen controls. The specified brightness is 500 cd/m², with dimming available for nighttime viewing. Inside, an NXP / Freescale i.MX6DL Dual-Cortex A9 processor supports the display’s interface. Its low-profile glass design suits an integrated control panel where screen visibility, convenient access, and a clean installation are important.

Built-in WiFi and Ethernet support tablet connectivity, including iPad pairing for local wireless access to the configured CZone system. This gives owners another way to access supported controls while aboard, subject to the correct app and network setup. The display also includes NMEA 2000 and USB 2.0 interfaces, providing connection options for its intended system installation. As a marine control panel or boat control panel, the Touch 7 serves as the user interface within a wider CZone installation. Buyers should match the display to their existing or planned CZone digital switching equipment and confirm the required configuration before installation.

The 8–32 V DC operating voltage range accommodates nominal 12V and 24V electrical installations within the specified limits. Front mounting, screwless rear access, and a stated 35 mm mounting depth including cables help with installation planning. Overall dimensions are 195 × 130 × 41 mm, and the unit weighs approximately 0.7 kg. The operating temperature range is −20°C to +70°C. Supplied items include a mounting bracket, a 1-metre NMEA 2000 drop cable and a power connector. Importantly, the Touch 7 has an IPX0 protection rating and must be installed in a part of the vessel that remains dry. Choose an interior mounting position and check the mounting template, cable routing, and available clearance before cutting the panel.

Key Features:

• CZone Touch 7 Marine Touchscreen Display – 7-Inch LCD With WiFi provides a dedicated touchscreen interface for accessing configured CZone controls and electrical monitoring information.
• Readable 7-inch screen: Optically bonded IPS LCD technology, 1024 × 600 resolution and 24-bit RGB colour support detailed interface graphics and wide viewing angles.
• Adjustable screen brightness: The 500 cd/m² display can be dimmed for nighttime use, allowing its illumination to suit the viewing conditions.
• Customisable interface: CZone 2.0 supports favourite pages and tailored layouts, helping users keep frequently accessed information and controls together.
• Integrated connectivity: WiFi, Ethernet, NMEA 2000 and USB 2.0 interfaces support the display’s connection requirements, with built-in WiFi available for iPad pairing.
• Practical installation package: Front mounting and shallow mounting depth are complemented by the supplied bracket, network drop cable, and power connector.
• Defined electrical requirements: Operates on 8–32 V DC; specified current consumption is 430 mA at 12V with full backlighting and 130 mA in standby with the backlight off.
• Dry-location installation: IPX0 protection makes mounting location an essential consideration for marine use; the display must remain protected from water exposure.

Applications / Suitable For:

• CZone Touch 7 Marine Touchscreen Display – 7-Inch LCD With WiFi is suitable for dry interior control stations on boats and yachts equipped with an appropriately configured CZone system.
• Interior electrical management panels: Provides a touchscreen access point for the switches, monitoring information, and alerts included in the vessel’s configuration.
• Boat and yacht refit projects: Suitable for consideration when planning a CZone display installation, subject to checking network requirements, panel space and mounting details.
• Local tablet access aboard: Supports iPad pairing for compatible CZone wireless control, with the required app and network configuration.
• Nominal 12V or 24V installations: Suitable where the display’s supplied voltage remains within its specified 8–32 V DC operating range.

FAQs:

Q: What does the CZone Touch 7 Marine Touchscreen Display – 7-Inch LCD With WiFi control do?
A: It provides access to the controls and monitoring functions configured in the connected CZone system. Available functions depend on the installed equipment and programming.

Q: Is the CZone Touch 7 waterproof?
A: No. It has an IPX0 rating. Marine installations must be restricted to areas of the vessel that remain dry.

Q: Can it connect to an iPad?
A: Yes. Built-in WiFi supports iPad pairing for local CZone access with the appropriate app and system setup.

Q: What is included with model 80-911-0200-00?
A: The kit includes the Touch 7 display, mounting bracket, 1-metre NMEA 2000 drop cable, and power connector.
