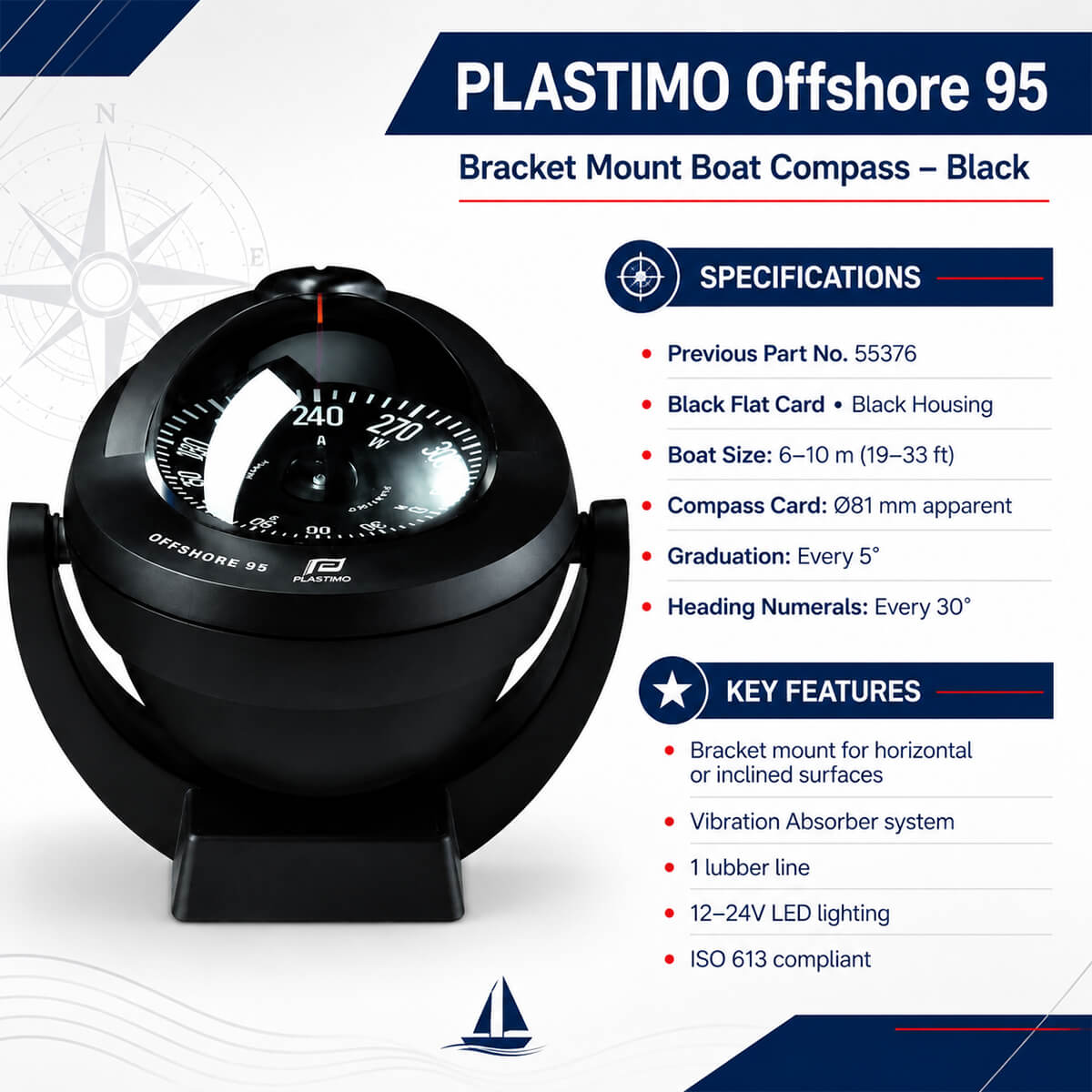

PLASTIMO Offshore Bracket Mount Boat Compass – 95 Black is a compact marine navigation compass designed for powerboats measuring 6 to 10 metres (19 to 33 feet). Its black housing and black flat compass card provide a practical, coordinated appearance for installation around a boat’s helm, dashboard, or steering console. The bracket-mount configuration is suitable for horizontal or inclined mounting surfaces, giving boat owners and installers more flexibility where flush mounting is unsuitable or where cutting a large opening in the dashboard is not preferred.

This PLASTIMO Offshore 95 marine compass features a flat card with an apparent diameter of 81 mm. The card is graduated every 5 degrees, while clearly arranged heading numerals appear every 30 degrees to support quick directional readings while navigating. A red lubber line provides an immediate reference for reading the vessel’s heading. The card is individually balanced and designed for stable, legible viewing in changing marine conditions. This makes the compass useful as a primary visual heading instrument or as a dependable navigational reference alongside GPS, chartplotters, and other marine electronics.

Powerboats can experience continuous engine vibration, wave impact and hull pounding, especially during coastal cruising or operation in open water. To help maintain card stability, this surface mount compass uses Plastimo’s distinctive “Vibration Absorber” magnetic-cell system. Minimal contact between the pivot and sapphire cup contributes to steady card movement and dependable readability. Its broad bracket base also helps absorb vibration at the mounting point. The compass and card unit must remain horizontal during installation, even when the supporting bracket is secured to an inclined surface.

The watertight compass construction incorporates a one-piece moulded flange and bowl, UV-treated components and a scratch-resistant dome. A Viton® diaphragm accommodates changes in compass-fluid volume caused by differences in atmospheric pressure and temperature, helping prevent bubble formation inside the compass. Integrated 12–24V LED lighting evenly illuminates the card for easier night-time reading and makes the compass compatible with common boat electrical systems. Compensation is supplied as standard and can be adjusted externally on the bracket version without opening the compass. The bracket-mounted unit is removable through its clip-plate arrangement and is supplied with a clip plate, mounting screws, and drilling template. This black flat-card version corresponds to current product reference 65734 and replaces previous part number 55376.

Key Features:

• PLASTIMO Offshore Bracket Mount Boat Compass – 95 Black provides clear heading information for powerboats from 6 to 10 m (19 to 33 ft).
• Black housing with a black flat compass card for a coordinated marine dashboard installation.
• Flat card with an 81 mm apparent diameter for convenient viewing from the helm position.
• Graduated every 5°, with heading numerals displayed every 30°.
• One red lubber line provides a clear reference point for reading the vessel’s heading.
• Bracket mount supports installation on horizontal or inclined surfaces while keeping the compass unit level.
• Broad, sturdy bracket base helps absorb vibration around the helm or steering console.
• Removable clip-plate arrangement facilitates practical installation and removal when required.
• Exclusive “Vibration Absorber” magnetic-cell system helps maintain card stability during vibration and hull pounding.
• Individually balanced compass card supports stable and consistent directional readings.
• Integrated 12–24V LED illumination provides even card lighting for low-light and night navigation.
• Standard compensation can be adjusted externally on the bracket version without opening the compass housing.
• Watertight one-piece moulded flange and bowl are designed for marine operating conditions.
• Viton® diaphragm accommodates fluid-volume changes caused by temperature and atmospheric-pressure variations.
• UV-treated components and a scratch-resistant dome support continued outdoor marine use.
• Supplied with a clip plate, screws, and drilling template to assist installation.
• Current product reference: 65734; previous part number: 55376.
• Compliant with the applicable ISO 25862 marine magnetic compass standard.

Applications / Suitable For:

• PLASTIMO Offshore Bracket Mount Boat Compass – 95 Black is suitable for powerboats requiring a visible, bracket-mounted directional reference at the helm.
• Recommended for powerboats measuring approximately 6–10 m (19–33 ft).
• Suitable for installation on a boat dashboard, steering console, or other appropriate horizontal or inclined mounting surface.
• Useful where a flush mount compass cannot be fitted or where avoiding a large dashboard cut-out is preferred.
• Appropriate for coastal cruising, leisure boating, fishing boats, sports boats, day boats and small motor yachts within the stated vessel-size range.
• Suitable as a dedicated magnetic boat compass or as a visual heading reference alongside a GPS, multifunction display or chartplotter.
• Useful for new marine dashboard installations, steering-console upgrades and replacement of the previous Plastimo 55376 compass.

FAQs:

Q: Is the PLASTIMO Offshore Bracket Mount Boat Compass – 95 Black suitable for my powerboat?
A: It is designed for powerboats measuring 6 to 10 m (19 to 33 ft). The available mounting area and viewing position should also be checked before installation.

Q: Can this compass be installed on an inclined surface?
A: Yes. The bracket can be mounted on a horizontal or inclined surface, provided the compass and card assembly remain horizontal and level.

Q: Does this Plastimo Offshore 95 compass have lighting?
A: Yes. It includes integrated 12–24V LED illumination for reading the compass card in low-light or night-time conditions.
