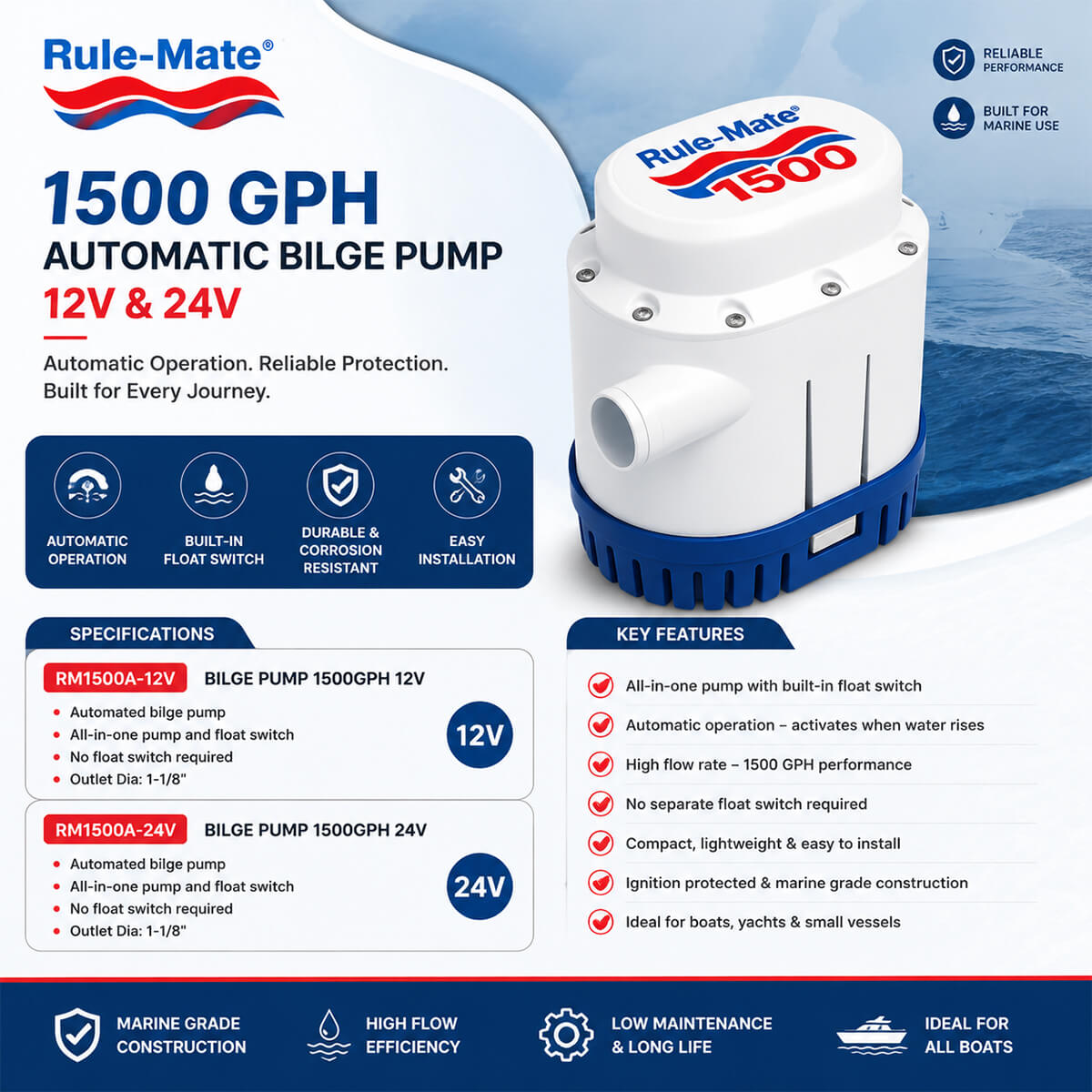

Rule Mate 1500 GPH Automatic Bilge Pump – 12V & 24V is an automated electric bilge pump designed to remove accumulated water from the bilge areas of boats and other marine vessels. It combines a Rule bilge pump and an automatic water-level sensing system within one housing, eliminating the need to install a separate external float switch. This all-in-one arrangement helps simplify the bilge pumping system while providing automatic operation when water rises around the pump.

With a rated open-flow capacity of 1,500 gallons per hour, equivalent to approximately 5,678 litres per hour, this automatic bilge pump is suitable for marine applications requiring higher-capacity routine water removal. The actual discharge rate depends on vertical lift, hose length, hose diameter, bends, electrical supply, and installation conditions. Manufacturer performance data indicate approximately 1,200 GPH at a 1-metre discharge head and 680 GPH at a 2-metre head, demonstrating why correct hose routing and installation are important for effective performance.

Two voltage configurations are available for different onboard electrical systems. The RM1500A-12V is intended for a 12V DC supply, while the RM1500A-24V is intended for a 24V DC supply. Both versions provide automatic operation, an integrated pump-and-switch arrangement, and a 1-1/8-inch outlet diameter for connection to a suitable marine discharge hose. Buyers should select the voltage that matches the vessel’s battery bank and electrical system; the 12V and 24V versions are not interchangeable.

The Rule Mate bilge pump uses built-in programming to monitor whether the motor is operating without moving water. If debris interferes with the sensing area or the pump becomes air-bound, the system can stop continuous operation and periodically check for water until normal pumping conditions return. Under normal conditions, the pump activates when the bilge water reaches its operating level and switches off after the water level has been reduced. This automatic level-sensing design is useful for managing nuisance water caused by rain, spray, minor seepage, washdown activities, or normal onboard drainage. It is intended for routine bilge-water management and should not be treated as a damage-control pump for flooding caused by hull damage.

Key Features:

• Rule Mate 1500 GPH Automatic Bilge Pump – 12V & 24V combines a high-capacity boat bilge pump and an automatic water-level sensing system in a single housing.
• Delivers a rated open-flow capacity of 1,500 GPH or approximately 5,678 LPH for efficient routine bilge-water removal.
• Automatic operation reduces the need to manually switch the bilge pump on and off whenever water collects around the unit.
• Integrated sensing technology means that a separate mechanical float switch is not required for normal automatic operation.
• Available as the RM1500A-12V for 12V DC systems and the RM1500A-24V for 24V DC systems.
• Features a 1-1/8-inch outlet diameter, suitable for connection to a correctly sized marine bilge hose.
• Built-in pump programming can recognise certain no-water or obstructed operating conditions and use a periodic checking mode until normal operation resumes.
• Suitable for installation in freshwater or saltwater bilge pumping applications when installed and maintained according to the manufacturer’s instructions.
• Designed as a submersible electric bilge pump for installation in the lower bilge area where water naturally collects.
• Helps keep the bilge clearer of everyday nuisance water, supporting cleaner and more manageable onboard spaces.
• The removable lower strainer area allows access to the pump inlet for routine inspection and removal of collected debris.
• Compatible with properly planned marine plumbing that includes suitable wiring, circuit protection, discharge hose, and an above-waterline discharge outlet.

Applications / Suitable For:

• Rule Mate 1500 GPH Automatic Bilge Pump – 12V & 24V is suitable for automatic bilge-water removal aboard boats with a compatible 12V or 24V DC electrical system.
• Suitable for motorboats, fishing boats, leisure craft, sailboats, yachts, workboats and similar marine vessels where the specified pumping capacity matches the bilge-system design.
• Can be installed in main bilge compartments, machinery-space bilges or other low areas where routine water accumulation may occur.
• Useful for removing rainwater, spray, minor seepage, condensation, washdown water, and other non-hazardous bilge water.
• Suitable for new marine plumbing installations or replacement projects where a 1-1/8-inch discharge connection and automatic level-sensing pump are required.
• Appropriate for owners who prefer an all-in-one automatic bilge pump without a separate external float switch.
• Suitable as part of a properly designed bilge pumping arrangement that includes regular testing, clean inlet access, and correctly routed discharge plumbing.
• Intended for fresh water and salt water only, not fuel, oil, chemicals, sewage, corrosive liquids or other hazardous fluids.

FAQs:

Q: Does the Rule Mate 1500 GPH Automatic Bilge Pump require a separate float switch?
A: No. It contains an integrated automatic water-level sensing system, so a separate float switch is not required for normal automatic operation.

Q: What is the difference between the RM1500A-12V and RM1500A-24V versions?
A: The RM1500A-12V is designed for a 12V DC marine electrical system, while the RM1500A-24V is designed for a 24V DC system. Always choose the version matching the vessel’s power supply.

Q: Does the pump always deliver exactly 1,500 GPH?
A: The 1,500 GPH figure is the rated open-flow output. Actual performance decreases as discharge height, hose length, bends, and system resistance increase.

Q: What discharge hose size is required?
A: The pump has a 1-1/8-inch outlet, so a compatible marine-grade discharge hose and correctly sized fittings should be used.
