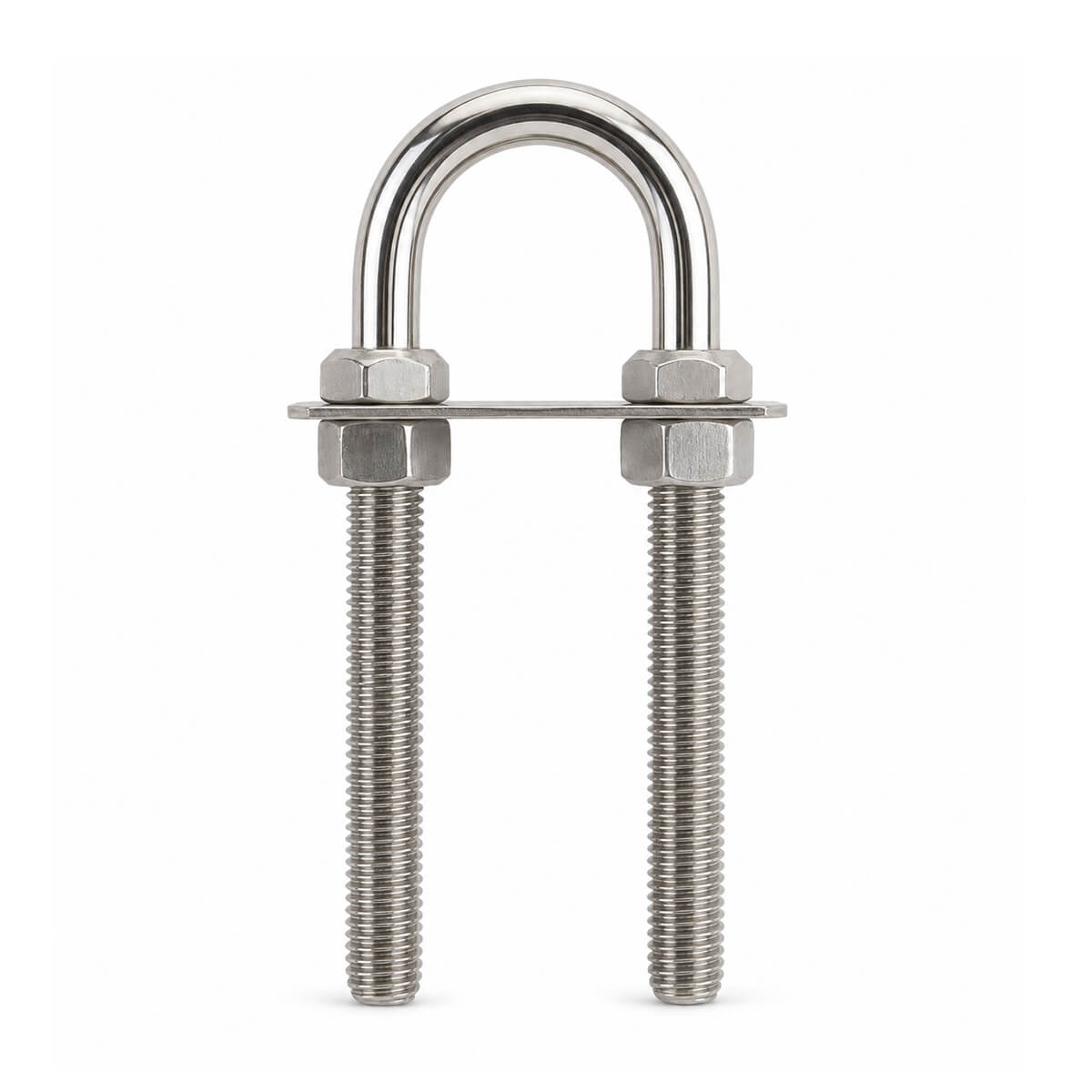

Stainless Steel Bow Eye U Bolt – AISI 316 is a strong, practical mounting fitting designed to create a secure attachment point on boats, marine structures, and suitable trailer assemblies. Its rounded U-shaped eye provides a convenient connection point for compatible ropes, straps, hooks, cables, and other fastening hardware. The two threaded legs allow the bow eye to pass through a suitable mounting surface and be secured from the opposite side using the supplied plate and nuts.

Manufactured from AISI 316 stainless steel, this marine bow eye offers good resistance to corrosion in wet, humid, and saltwater-exposed environments. AISI 316 stainless steel is commonly selected for marine hardware because it is suitable for demanding conditions where ordinary metal components may corrode more quickly. Its polished metal finish also provides a clean appearance that complements other stainless steel deck fittings and boat hardware.

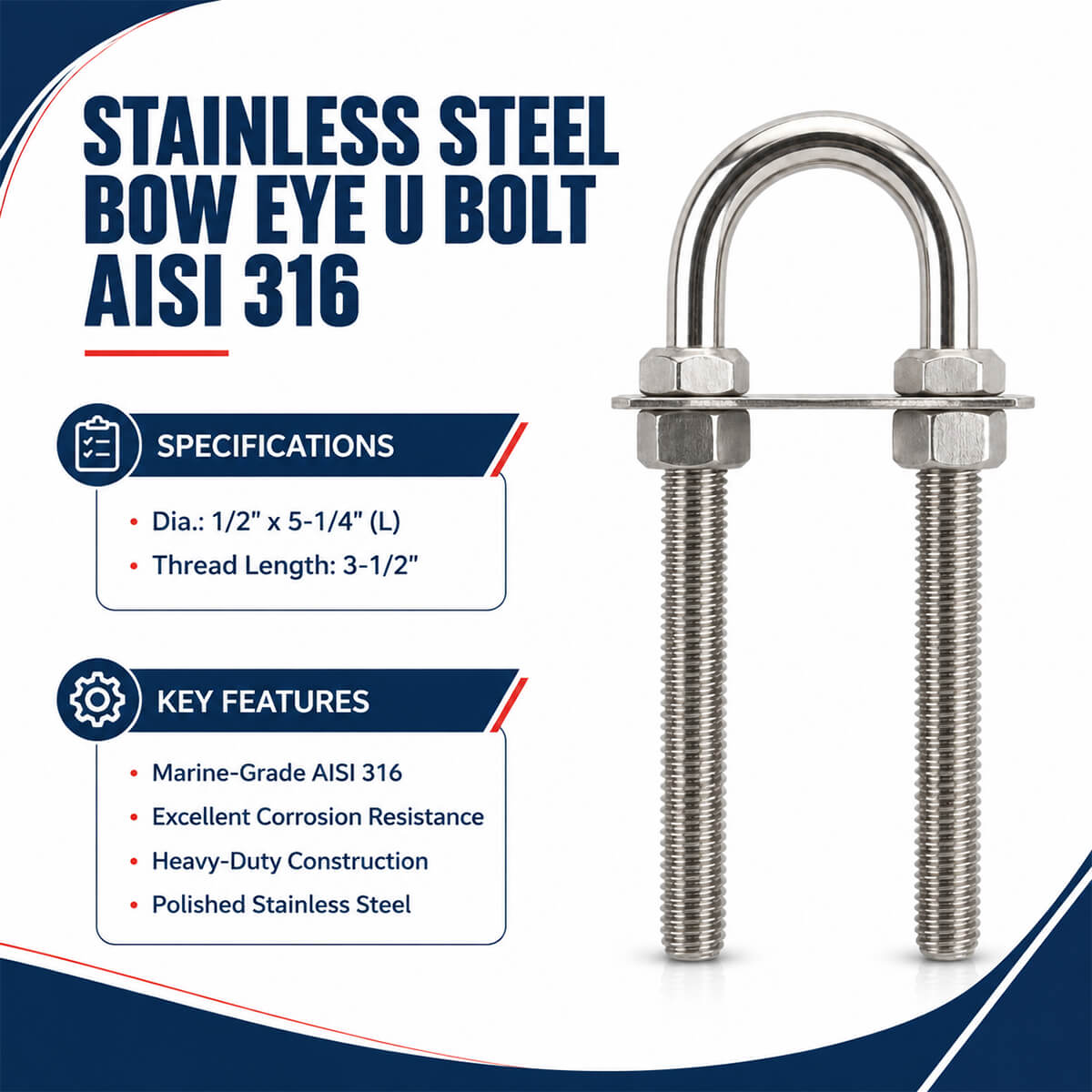

This model has a nominal diameter and overall length of 1/2″ x 5-1/4″ (L), with a 3-1/2″ thread length for installation through an appropriately prepared mounting surface. The extended threaded legs provide adjustment space for positioning the plate and nuts according to the thickness and construction of the mounting area. The internal eye opening is approximately 37.4 mm, offering space for compatible connecting hardware. Buyers should verify all mounting dimensions, installation clearance, and connection requirements before ordering.

Unlike a general-purpose U bolt used mainly to clamp pipes or tubes, this stainless steel U bolt is formed with a rounded exposed eye intended to function as an attachment point. It can be installed as a boat bow fitting, tie-down connection, securing point, or general marine attachment eye where its dimensions and intended use are suitable. The included backing plate helps distribute the clamping force across the installation area, while the nuts secure the fitting in position.

Correct installation is important for dependable use. The Stainless Steel Bow Eye U Bolt – AISI 316 should be fitted through correctly spaced mounting holes on a structurally suitable surface. The mounting area should be inspected to ensure it can support the intended application. Appropriate backing, sealant, or additional reinforcement may be required depending on the hull material, panel construction, mounting position, and exposure to water. Any working-load requirement should be confirmed separately, as no rated load capacity is provided for this product.

The smooth U-shaped design makes this u bolt for boat installations a useful choice for new builds, maintenance work, or replacement of a similarly sized fitting. It may also suit selected boat trailer u bolts applications when used as an attachment eye rather than as an axle or suspension clamp. Matching the existing hole spacing, thread size, overall length, and eye clearance will help ensure proper installation.

Key Features:

• Stainless Steel Bow Eye U Bolt – AISI 316 provides a rounded attachment eye with two threaded mounting legs for secure through-bolt installation.
• Made from AISI 316 stainless steel for good corrosion resistance in marine, coastal, wet, and humid environments.
• Measures 1/2″ in diameter and 5-1/4″ in overall length, with approximately 3-1/2″ of thread length.
• Features an internal eye opening of approximately 37.4 mm for use with suitably sized ropes, hooks, straps, cables, or connecting hardware.
• Supplied with a backing plate and fastening nuts to help secure the bow eye against the mounting surface.
• Extended threaded legs provide installation adjustment for compatible mounting surfaces and reinforcement arrangements.
• Polished stainless steel construction offers a clean appearance alongside other boat deck hardware and marine fittings.
• Suitable for replacement projects when its dimensions correspond with the original bow eye and mounting arrangement.
• Simple mechanical design makes the fitting easy to inspect during normal boat or trailer maintenance.
• Load capacity is not specified; suitability should be confirmed according to the installation surface and intended use.

Applications / Suitable For:

• Stainless Steel Bow Eye U Bolt – AISI 316 is suitable for creating an attachment or securing point on compatible boats, marine panels, and structural mounting areas.
• Boat bow and hull attachment points where the mounting structure is suitable for through-bolt installation.
• Connecting compatible trailer winch straps or bow securing hardware when properly positioned and supported.
• Selected marine tie-down, restraint, and general fastening arrangements that match the fitting’s dimensions.
• Small craft, fishing boats, leisure boats, workboats, and other marine projects requiring a stainless steel bow eye.
• Boatbuilding, refitting, restoration, maintenance, and replacement of worn or corroded bow-eye hardware.
• Installation on fiberglass, timber, aluminium, or metal structures when suitable reinforcement and installation methods are used.
• Marine equipment cabinets, dockside structures, and general hardware projects requiring a corrosion-resistant attachment eye.
• Boat trailer applications where this marine bow eye is used as an attachment fitting and not as an axle or suspension U bolt.

FAQs:

Q: What are the dimensions of the Stainless Steel Bow Eye U Bolt – AISI 316?
A: It has a 1/2″ diameter, a 5-1/4″ overall length, a 3-1/2″ thread length, and an internal eye opening of approximately 37.4 mm.

Q: What is the Stainless Steel Bow Eye U Bolt – AISI 316 used for?
A: It creates an attachment point for compatible ropes, hooks, straps, cables, or trailer winch connections on a suitably reinforced mounting surface.

Q: Is this bow eye suitable for saltwater environments?
A: Its AISI 316 stainless steel construction provides good corrosion resistance for marine use, but routine cleaning and inspection are still recommended.

Q: Does this marine bow eye have a specified load rating?
A: No load rating is provided. Confirm the fitting, mounting surface, backing arrangement, and intended load before installation.
