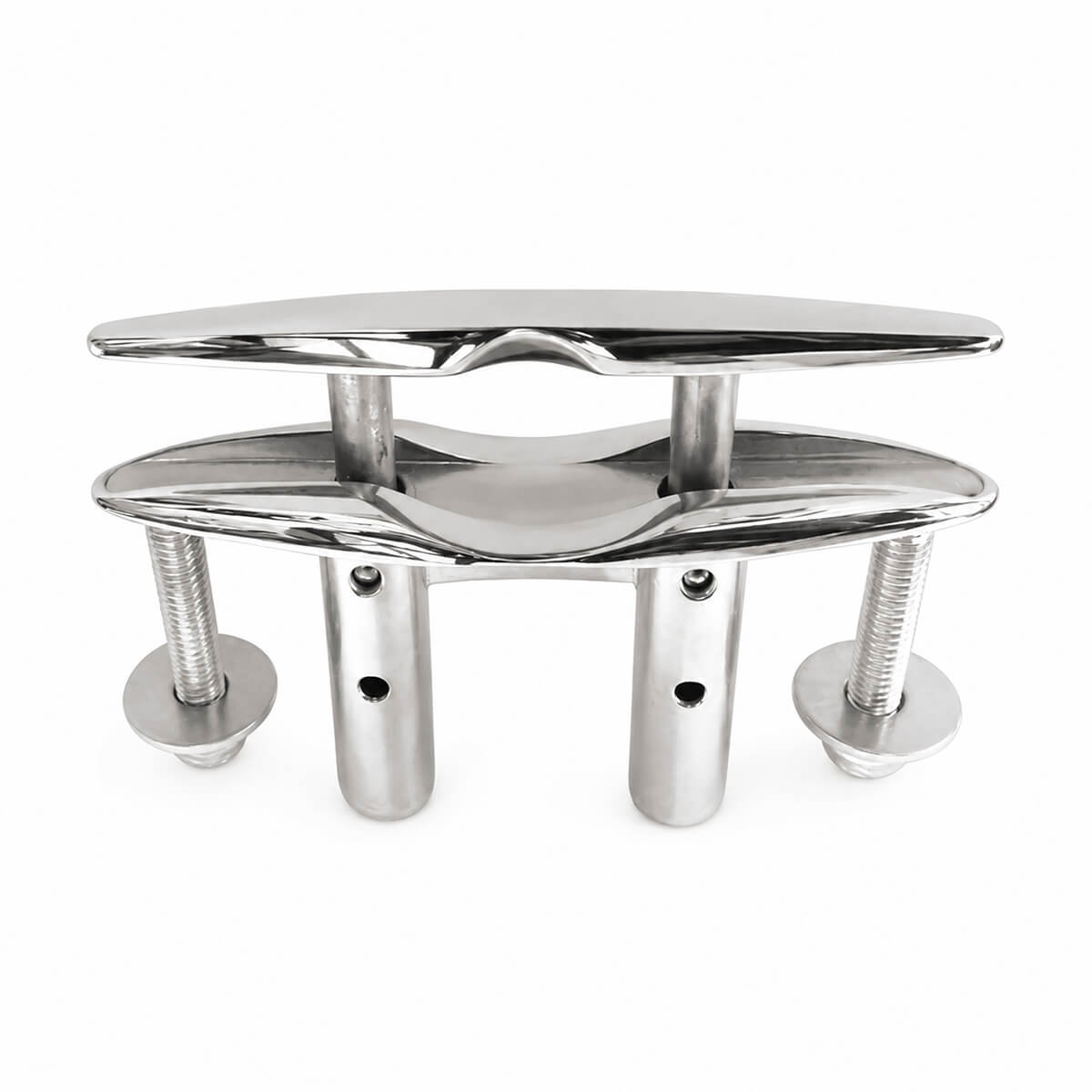

Stainless Steel Pull Up Boat Cleat – AISI 316 is a flush-mount marine rope cleat designed for securing mooring lines, dock lines, fender ropes, and other suitable lines on boats. Its pull-up configuration allows the cleat head to be raised when needed and lowered closer to the mounting surface when not in use. This creates a cleaner deck appearance while reducing unnecessary obstruction compared with a permanently raised conventional cleat. The polished stainless steel finish also complements modern boat, yacht and marine deck hardware.

Manufactured from AISI 316 stainless steel, this boat cleat is suitable for marine environments where deck fittings may be regularly exposed to water, salt spray and changing weather conditions. Grade 316 stainless steel is commonly selected for marine hardware because of its corrosion-resistant properties. The cleat’s two-post pull-up arrangement provides an accessible horn-shaped top for wrapping or tying a correctly sized rope. Its recessed body installs through the mounting surface, so the available space below the deck must be checked before installation.

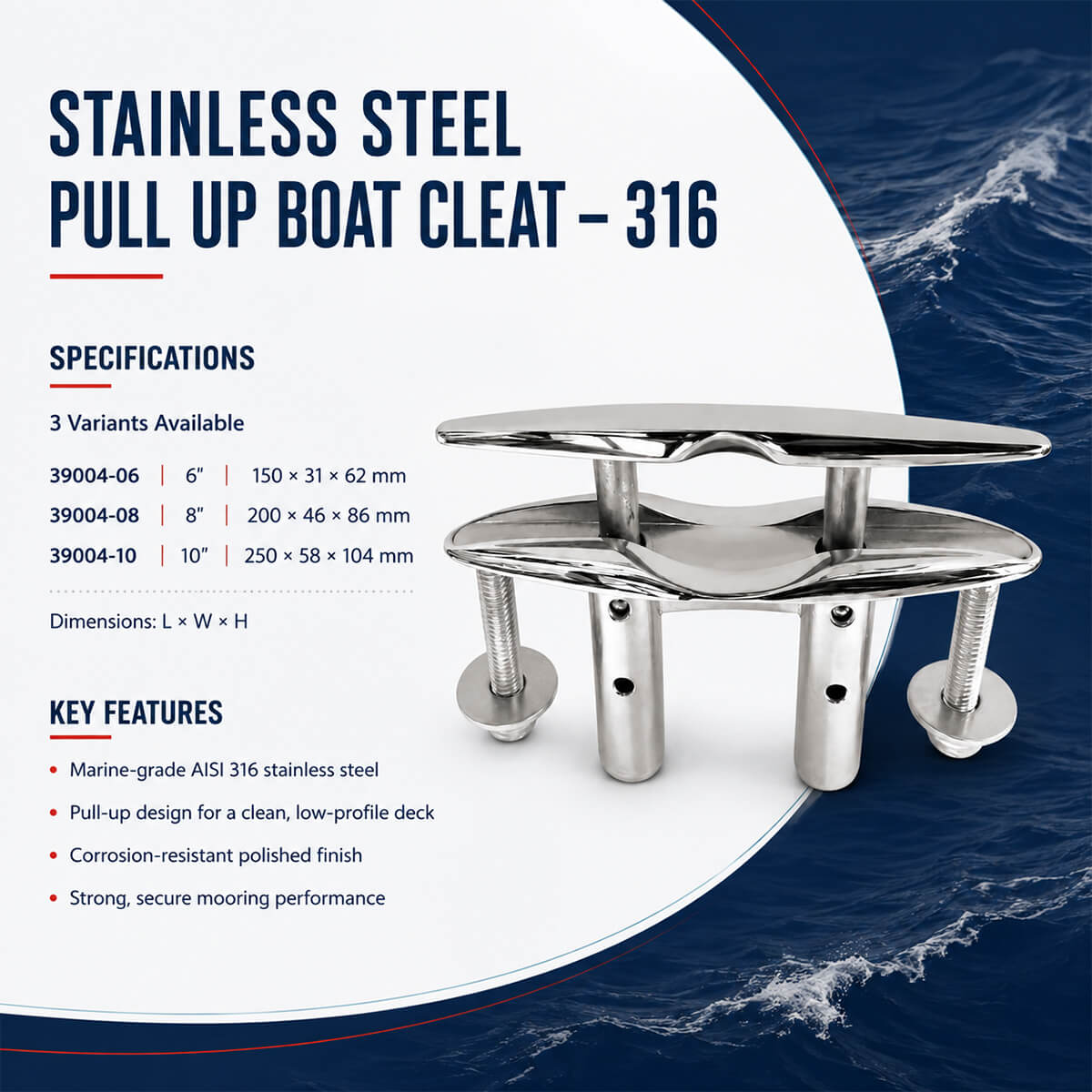

Three variants are available to suit different deck layouts and rope-handling requirements. Model 39004-06 is the 6-inch option and measures 150mm long, 31mm wide and 62mm high. Model 39004-08 is the 8-inch option, measuring 200mm long, 46mm wide and 86mm high. The largest model, 39004-10, is the 10-inch option and measures 250mm long, 58mm wide and 104mm high. These clearly defined dimensions help boat builders, repair yards and vessel owners choose an appropriate size while allowing for both the visible deck footprint and the required under-deck clearance.

As a retractable mooring cleat, it can be installed in suitable deck areas where convenient rope access and a lower-profile finish are preferred. Potential positions include bow, stern, or side-deck locations, depending on the vessel’s design and intended line arrangement. It may also be used as a rope cleat for fender lines where the installation and expected load are appropriate. Before fitting, confirm the mounting location, structural support, drainage, under-deck access, and clearance. Installation and line selection should follow the vessel builder’s requirements and accepted marine practices.

Key Features:

• Stainless Steel Pull Up Boat Cleat – AISI 316 combines a retractable cleat head with a recessed, flush-mount body for an organised marine deck installation.
• Manufactured from AISI 316 stainless steel, a material commonly used for boat fittings exposed to wet and saltwater conditions.
• Pull-up operation allows the cleat to be raised for handling a line and lowered when it is not required.
• The horn-style cleat head provides a practical surface for securing suitable mooring, docking, or fender ropes.
• The lowered position helps minimise the profile of unused deck hardware and maintains a cleaner deck layout.
• Two-post design and recessed mounting arrangement are visible parts of the integrated pull-up mechanism.
• Available as 6-inch, 8-inch, and 10-inch pop up boat cleats for different vessel layouts and installation requirements.
• Model 39004-06: 150mm (L) × 31mm (W) × 62mm (H).
• Model 39004-08: 200mm (L) × 46mm (W) × 86mm (H).
• Model 39004-10: 250mm (L) × 58mm (W) × 104mm (H).
• Polished stainless steel appearance coordinates well with other stainless steel boat cleats, rails, and deck fittings.
• Suitable for new boat construction, marine refitting and replacement of a dimensionally compatible pull-up cleat.

Applications / Suitable For:

• Stainless Steel Pull Up Boat Cleat – AISI 316 is suitable for securing appropriate dock lines and mooring ropes on compatible powerboats, yachts and other recreational vessels.
• Suitable for bow, stern and side-deck locations where the vessel structure provides adequate mounting support and under-deck clearance.
• Useful for boat owners who prefer retractable or pop up cleats instead of a cleat that remains permanently raised.
• Can be considered for fender-rope management when the selected size, mounting position, and intended load are suitable.
• Appropriate for boatbuilding, deck-hardware upgrades, restoration work, and replacement projects after checking all dimensions.
• Designed for marine deck areas where a functional rope cleat and a neat, low-profile appearance are required.

FAQs:

Q: What sizes are available for the Stainless Steel Pull Up Boat Cleat – AISI 316?
A: The Stainless Steel Pull Up Boat Cleat – AISI 316 is available in 6-inch, 8-inch, and 10-inch versions under model numbers 39004-06, 39004-08, and 39004-10.

Q: Does this cleat remain raised above the deck?
A: No. The cleat can be pulled up when needed and lowered closer to the deck surface when not in use.

Q: What material is used for this pull-up boat cleat?
A: It is manufactured from AISI 316 stainless steel, which is widely used for corrosion-resistant marine hardware.

Q: What should be checked before installation?
A: Confirm the cut-out and mounting requirements, under-deck clearance, structural support, drainage, and access for securing the hardware.
