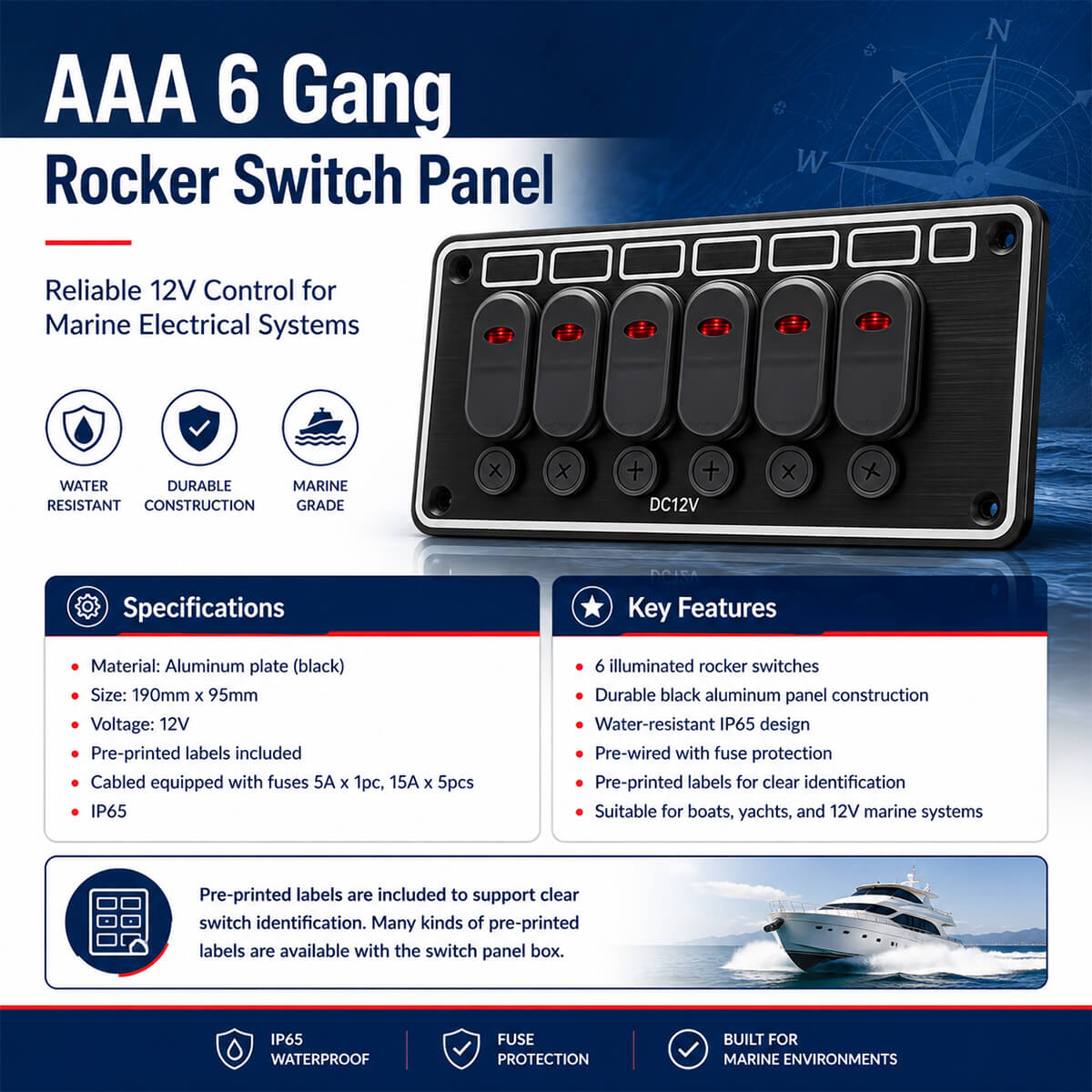

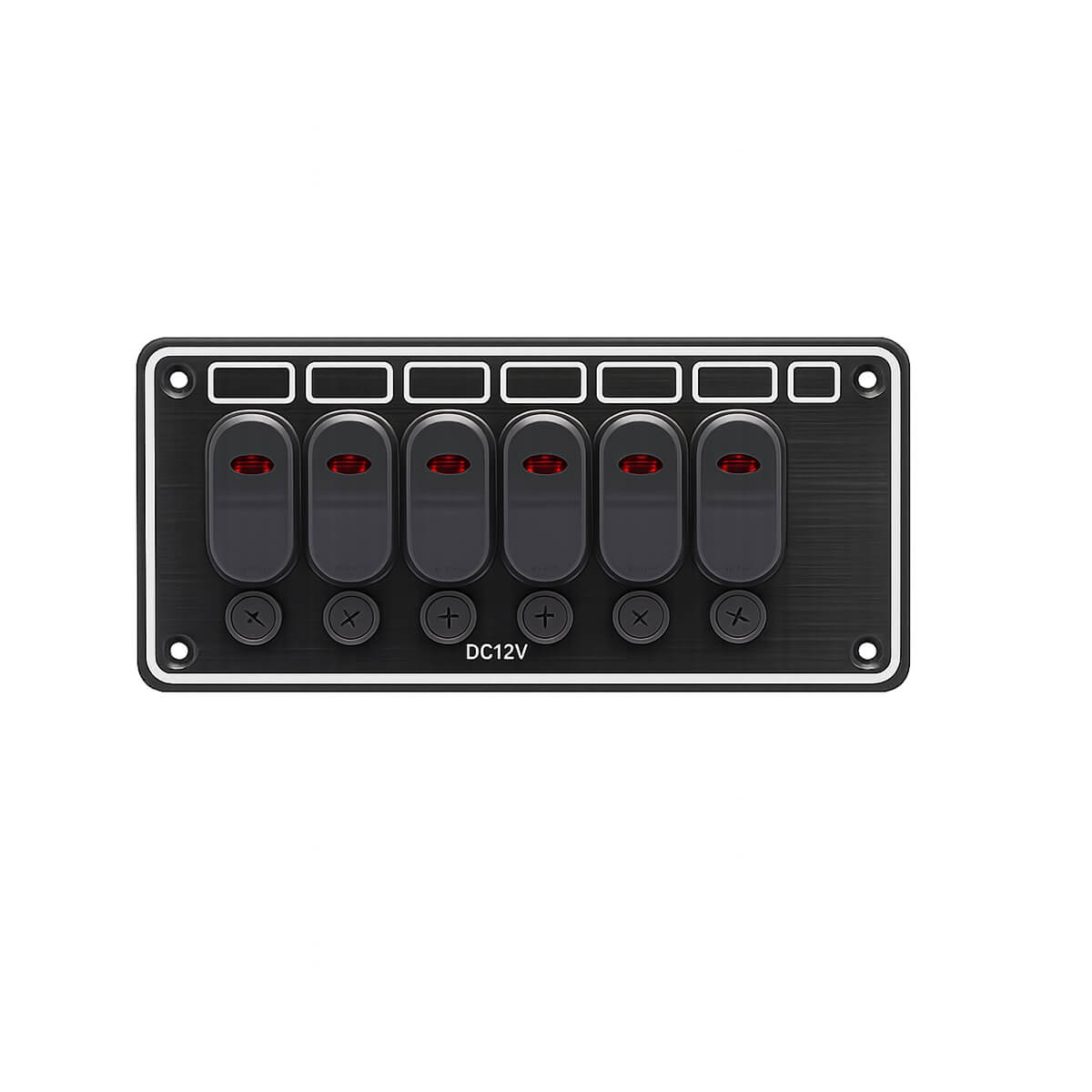

The AAA 6 Gang Rocker Switch Panel, model 10147-BK, is a compact 12V DC electrical control panel designed for organising multiple accessory circuits in one convenient location. With six rocker switches arranged on a black aluminium plate, it helps create a cleaner and more manageable control area for boats, yachts, fishing vessels, small craft, and other compatible 12V installations. This marine switch panel is useful where separate circuits need individual on/off control from a single dashboard, helm station, cabin panel, or service area. The manufacturer lists this model with six waterproof LED-indicator rocker switches, a black aluminium plate, and a 12V DC operating voltage.

Designed for clear circuit identification, this 6 gang switch panel includes label windows above each rocker switch and comes with pre-printed labels. The labels can be used to identify connected functions such as lights, pumps, fans, navigation-related accessories, cabin equipment, or other correctly specified 12V electrical devices. A variety of pre-printed labels is included with the switch panel box, allowing installers to choose labels that match the connected accessories. This makes the boat switch panel easier to operate, especially when several circuits are installed together in a compact helm, console, or dashboard space.

The panel measures 190 mm x 95 mm, making it a practical option for installations that require six switched circuits without taking up excessive dashboard space. Its black aluminium plate provides a neat, rigid panel face for marine electrical control layouts. The rocker switches include red LED indicator lenses, providing a visible reference at the switch position. With an IP65 rating, the 12V rocker switch panel is designed with protection against dust and water jets, supporting use in marine control areas exposed to normal splashes, spray, or washdown conditions. IP ratings are used to describe enclosure resistance to dust and liquid ingress; IP65 should not be treated as a submersion rating.

For circuit management, the AAA 6 Gang Rocker Switch Panel is supplied cabled and equipped with six fuses: one 5A fuse and five 15A fuses. This arrangement provides individual fused circuit provisions within the panel. The final accessory load, wiring size, fuse selection, and installation method should always be checked against the electrical requirements of the connected equipment and the vessel’s 12V electrical system. As a switch panel for boat installations, it can be used for replacement projects, marine console upgrades, or new electrical layouts where a tidy six-switch control point is required. Its compact size, fused wiring arrangement, pre-printed labels, LED rocker switches, and IP65-rated construction make it a useful choice for structured 12V accessory control.

Key Features:

• Six-gang layout for controlling up to six separate compatible 12V circuits
• Black aluminium plate construction
• 12V DC operating voltage
• Six rocker switches with LED indicators
• IP65-rated panel design
• Compact size: 190 mm x 95 mm
• Supplied cabled for installation
• Equipped with one 5A fuse and five 15A fuses
• Pre-printed labels included for switch identification
• Label windows above the switches for clear circuit naming
• Suitable as a marine switch panel, boat switch panel, and 12V rocker switch panel

Applications / Suitable For:

• Boat helm stations, dashboards, and centre consoles
• Yacht cabin electrical control areas
• Fishing boats and recreational marine vessels
• Marine lighting, pumps, fans, and accessory circuits when correctly specified
• Cabin, deck, navigation-related, and service-panel controls
• Camper vans, utility vehicles, and compatible 12V projects
• Replacement installations requiring a compact 6 gang switch panel

FAQs:

Q: How many circuits can this AAA 6 Gang Rocker Switch Panel control?
A: It has six rocker switches and can control up to six separate compatible 12V circuits.

Q: Is this boat switch panel suitable for marine use?
A: Yes. It is designed as a marine switch panel with an IP65-rated construction, a black aluminium plate, and waterproof LED rocker switches.

Q: Are labels included with the switch panel?
A: Yes. Pre-printed labels are included to help identify the function assigned to each rocker switch.

Q: What fuses are supplied with the panel?
A: The panel is cabled and equipped with one 5A fuse and five 15A fuses.
