The AAA 6 Gang Rocker Switch Panel is a 12V marine electrical control panel designed to bring multiple onboard accessory circuits into one organised control location. It features six rocker switch positions, making it suitable for managing separate electrical functions from a single dashboard, console or helm area. This type of switch panel is commonly used where a boat requires clearly separated controls for lighting, wipers, aerators, and other 12V auxiliary equipment.

The panel is made from black UV-stabilized plastic, a practical material choice for marine switch panels installed in areas exposed to daylight and regular boat use. Its overall size is 195mm x 130mm, providing a compact but clearly arranged layout for six individual circuits. The panel face includes mounting holes at the corners, allowing it to be installed onto a suitable flat dashboard, cabin panel, helm console or electrical control surface. Its black finish helps it blend well with many marine dashboard and cockpit console layouts.

This AAA 6 Gang Rocker Switch Panel operates on 12V electrical systems and is supplied cabled for installation. It is equipped with built-in circuit breakers in three ratings: 5A x 1, 10A x 3, and 15A x 2. These six breaker-protected circuit positions allow the installer to allocate different circuits according to the electrical requirements of the connected accessories. Circuit selection and installation should always be matched with the electrical load and wiring requirements of the connected boat equipment.

The product is rated IP65, supporting its use in marine electrical areas where protection from dust and water exposure is important. This makes the panel suitable for use in protected cockpit consoles, cabin control areas, helm stations, and similar boat electrical locations. It is not intended to replace correct marine wiring practice, proper fuse or breaker selection, or suitable installation procedures.

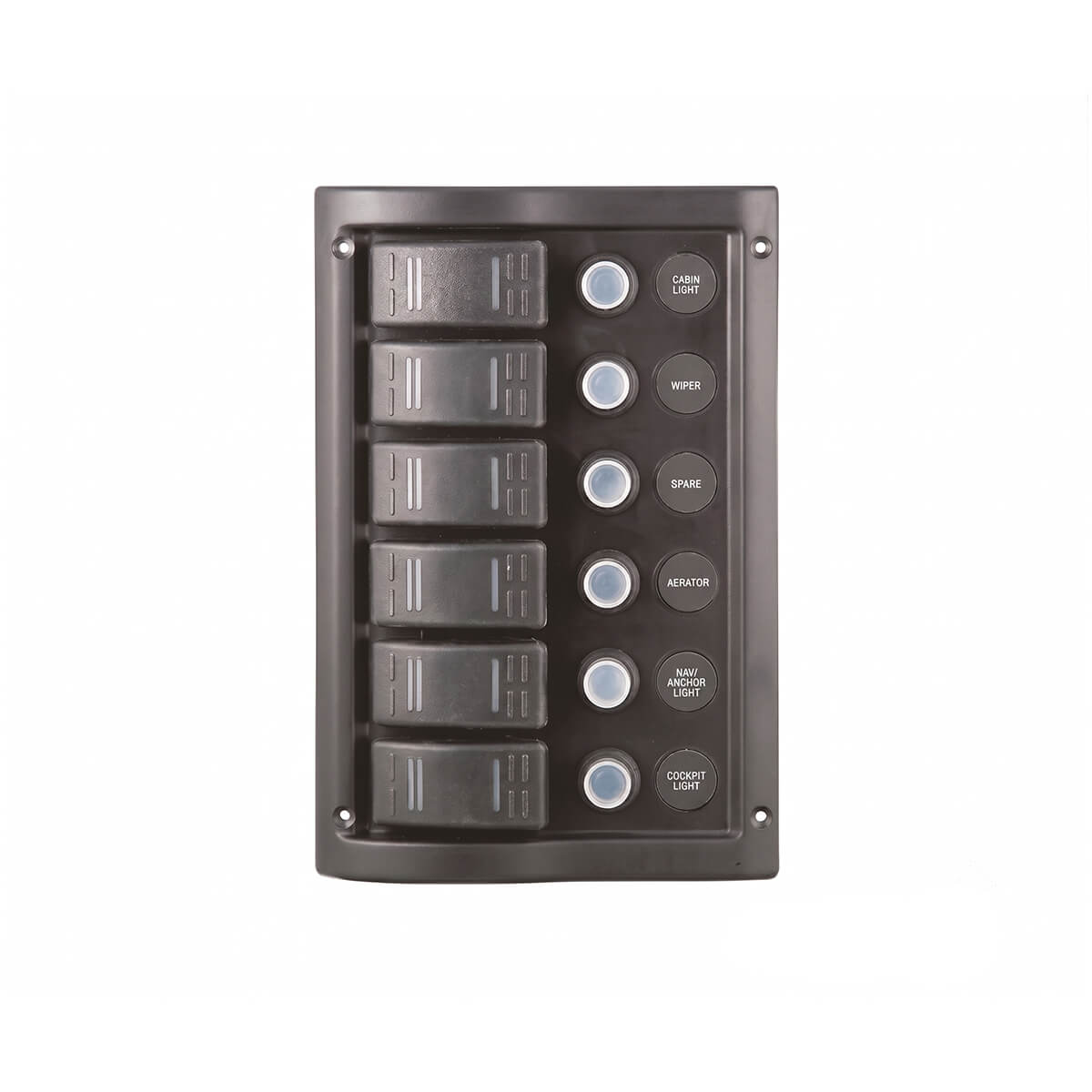

Pre-printed labels are included with the switch panel to support clear switch identification. The attached product image shows labels such as Cabin Light, Wiper, Spare, Aerator, Nav/Anchor Light, and Cockpit Light. These labels help boat operators quickly recognise the function of each rocker switch during normal use, especially in low-light conditions or when several accessories are installed on the same vessel. Additional pre-printed labels are available with the switch panel box, allowing the panel layout to be adapted for different onboard equipment and circuit requirements.

This marine switch panel is useful for boat owners, marine technicians, and installers who want to keep 12V accessory controls in one tidy location. Instead of placing multiple separate switches around a dashboard, the 6 gang configuration provides a more organised control arrangement. It can be used during new boat electrical installations, marine dashboard upgrades, console replacements or electrical refit projects where a six-circuit rocker switch panel is required.

The AAA 6 Gang Rocker Switch Panel is suitable for a range of marine applications where separate 12V circuits need simple manual control. It can be installed on leisure boats, fishing boats, small workboats, yachts, tenders, and other vessels using compatible 12V electrical systems. Its combination of rocker switches, included labels, circuit breakers, and IP65-rated panel design makes it a practical option for marine electrical control installations where clear circuit identification is needed.

Key Features:

• 6 gang rocker switch panel for six separate 12V circuits
• Designed for marine electrical control applications
• Black UV-stabilized plastic panel
• Operating voltage: 12V
• Panel size: 195mm x 130mm
• IP65-rated panel design
• Cabled for installation
• Built-in circuit breakers included
• Circuit breaker configuration: 5A x 1, 10A x 3, 15A x 2
• Six rocker switch positions
• Pre-printed labels included for switch identification
• Additional label options supplied with the switch panel box
• Four visible corner mounting holes
• Suitable for boat dashboards, helm stations, cabin consoles, and control panels

Applications / Suitable For:

• Boat dashboard electrical control panels
• Marine helm station switch installations
• Cabin light control circuits
• Cockpit light control circuits
• Navigation and anchor light circuits
• Boat wiper control circuits
• Aerator circuit control
• Spare 12V accessory circuits
• Fishing boat electrical panels
• Leisure boat and yacht control consoles
• Small vessel electrical upgrades
• Marine refit and replacement switch panel projects
• 12V marine accessory control installations
• Boat console and cabin electrical organisation

FAQs:

Q: How many circuits can this switch panel control?
A: The AAA 6 Gang Rocker Switch Panel has six rocker switch positions for controlling six separate 12V circuits.

Q: What voltage system is this marine switch panel designed for?
A: This panel is designed for 12V electrical systems.

Q: Does the switch panel include circuit breakers?
A: Yes. It is equipped with one 5A circuit breaker, three 10A circuit breakers and two 15A circuit breakers.

Q: Are switch labels included with the panel?
A: Yes. Pre-printed labels are included to help identify different switch functions, and multiple label options are available with the switch panel box.
