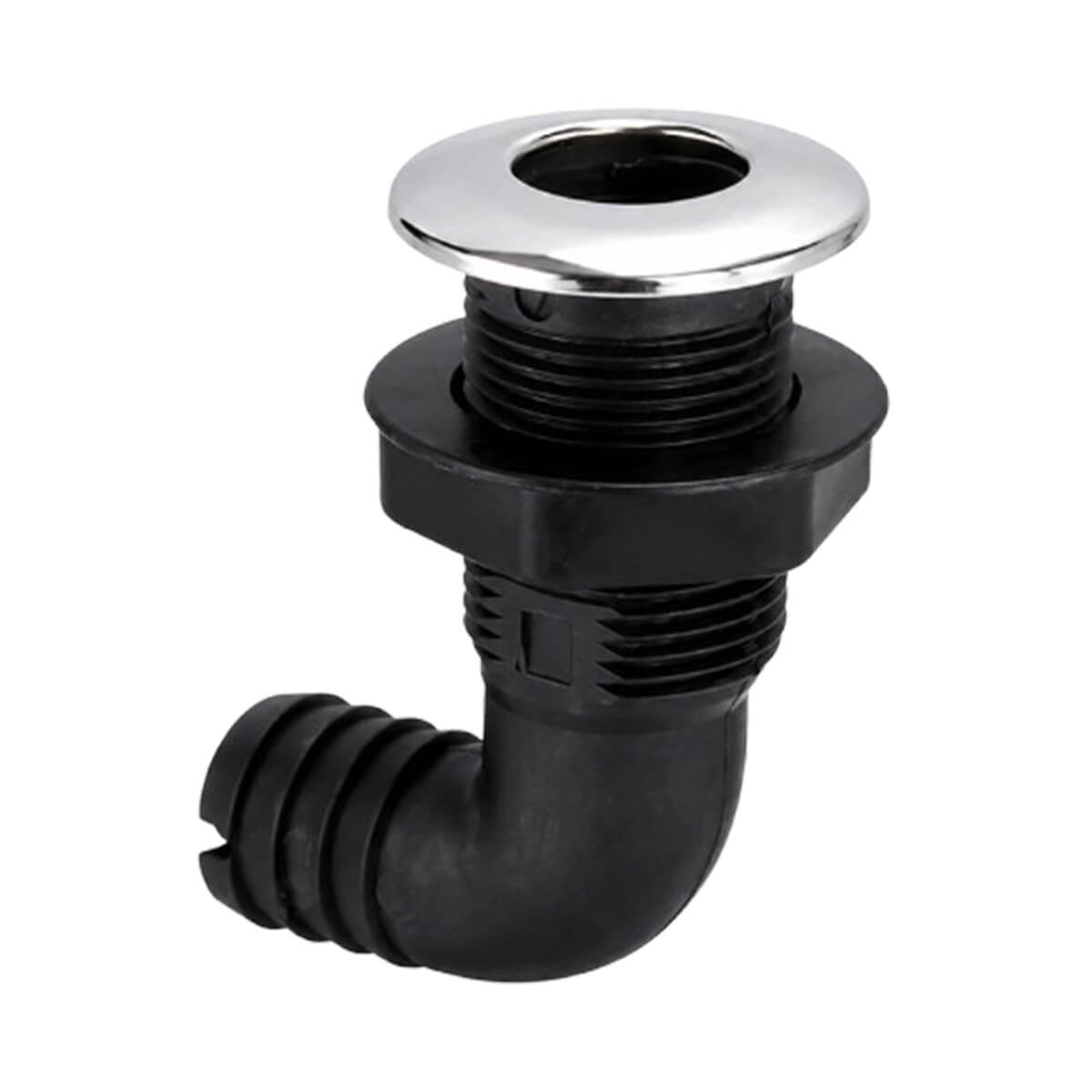

AAA 90° Elbow Thru Hull Fitting With Stainless Steel Top Cover is a marine drain outlet component designed to provide a reliable connection between a boat’s drainage system and an external discharge point through the hull. This 90-degree elbow thru hull fitting features a black P.P. (polypropylene) tubing body with an S.S.316 stainless steel trim ring, offering a practical solution for marine applications where a clean external finish and efficient hose routing are required. The angled elbow design helps direct the drain hose connection while maintaining a compact installation layout.

Designed for marine drainage and water outlet applications, the AAA 90° Elbow Thru Hull Fitting With Stainless Steel Top Cover is suitable for installation on various types of boats and marine equipment where through-hull drainage connections are needed. The stainless steel top cover provides a neat appearance on the outside of the hull, while the threaded body design allows secure mounting through the hull surface. This thru hull fitting is commonly used as a drain port connection for managing water discharge from onboard systems.

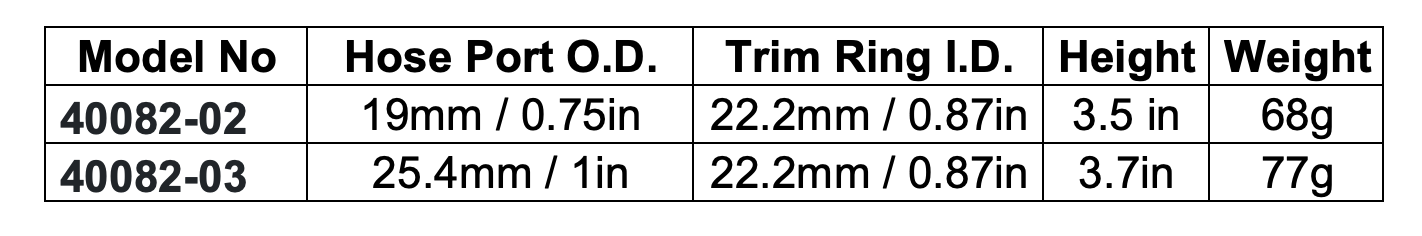

The fitting is available in two variants to support different hose connection requirements. Model 40082-02 – Thru Hull 90-W / SS 316 Trim 3/4″ features a hose port outside diameter of 19mm / 0.75 inch, a trim ring inside diameter of 22.2mm / 0.87 inch, a height of 3.5 inches, and a weight of 68g. Model 40082-03 – Thru Hull 90-W / SS 316 Trim 1″ features a hose port outside diameter of 25.4mm / 1 inch, a trim ring inside diameter of 22.2mm / 0.87 inch, a height of 3.7 inches, and a weight of 77g.

The combination of polypropylene construction and stainless steel 316 trim ring makes this marine thru hull fitting suitable for environments where corrosion-resistant materials and dependable drainage connections are important. Its 90-degree elbow configuration helps simplify hose installation by allowing the drain line to change direction without requiring additional fittings. This makes it a practical choice for boat builders, marine technicians, and owners maintaining drainage systems, water outlets, and hull-mounted discharge points.

Key Features:

• AAA 90° Elbow Thru Hull Fitting With Stainless Steel Top Cover provides a compact 90-degree drain hose connection for marine hull installations.
• Made with P.P. (polypropylene) tubing and an S.S.316 stainless steel trim ring for marine-use durability.
• Available in two hose port size options:
  • 40082-02: 19mm / 0.75 inch hose port O.D.
  • 40082-03: 25.4mm / 1 inch hose port O.D.
• Stainless steel top cover provides a clean and finished external hull appearance.
• 90-degree elbow design helps route drain hoses efficiently in limited installation spaces.
• Suitable for thru hull drainage, water outlet, and marine drain port applications.
• Lightweight design:
  • 40082-02: 68g
  • 40082-03: 77g
• Trim ring inside diameter: 22.2mm / 0.87 inch.

Applications / Suitable For:

• The AAA 90° Elbow Thru Hull Fitting With Stainless Steel Top Cover is suitable for boat drainage and hull-mounted water outlet applications.
• Used for marine drain hose connections where a 90-degree elbow outlet design is required.
• Suitable for recreational boats, yachts, fishing boats, and other marine vessels.
• Can be used for onboard drainage systems requiring a thru hull fitting connection.
• Suitable for replacing or installing marine drain ports and hose outlet fittings.
• Useful for boat maintenance, repair projects, and new marine equipment installations.

FAQs:

Q: What is the AAA 90° Elbow Thru Hull Fitting With Stainless Steel Top Cover used for?
A: It is used as a marine drain port and water outlet fitting to connect a boat’s drainage hose through the hull.

Q: What materials are used in this thru hull fitting?
A: The fitting is made with P.P. tubing and includes an S.S.316 stainless steel trim ring.

Q: What size options are available for this 90 degree thru hull fitting?
A: It is available in two variants: 40082-02 with a 19mm / 0.75 inch hose port and 40082-03 with a 25.4mm / 1 inch hose port.

Q: Where can this marine thru hull fitting be installed?
A: It is suitable for boat hull drainage systems, water outlet connections, and other marine applications requiring a secure drain hose outlet.
