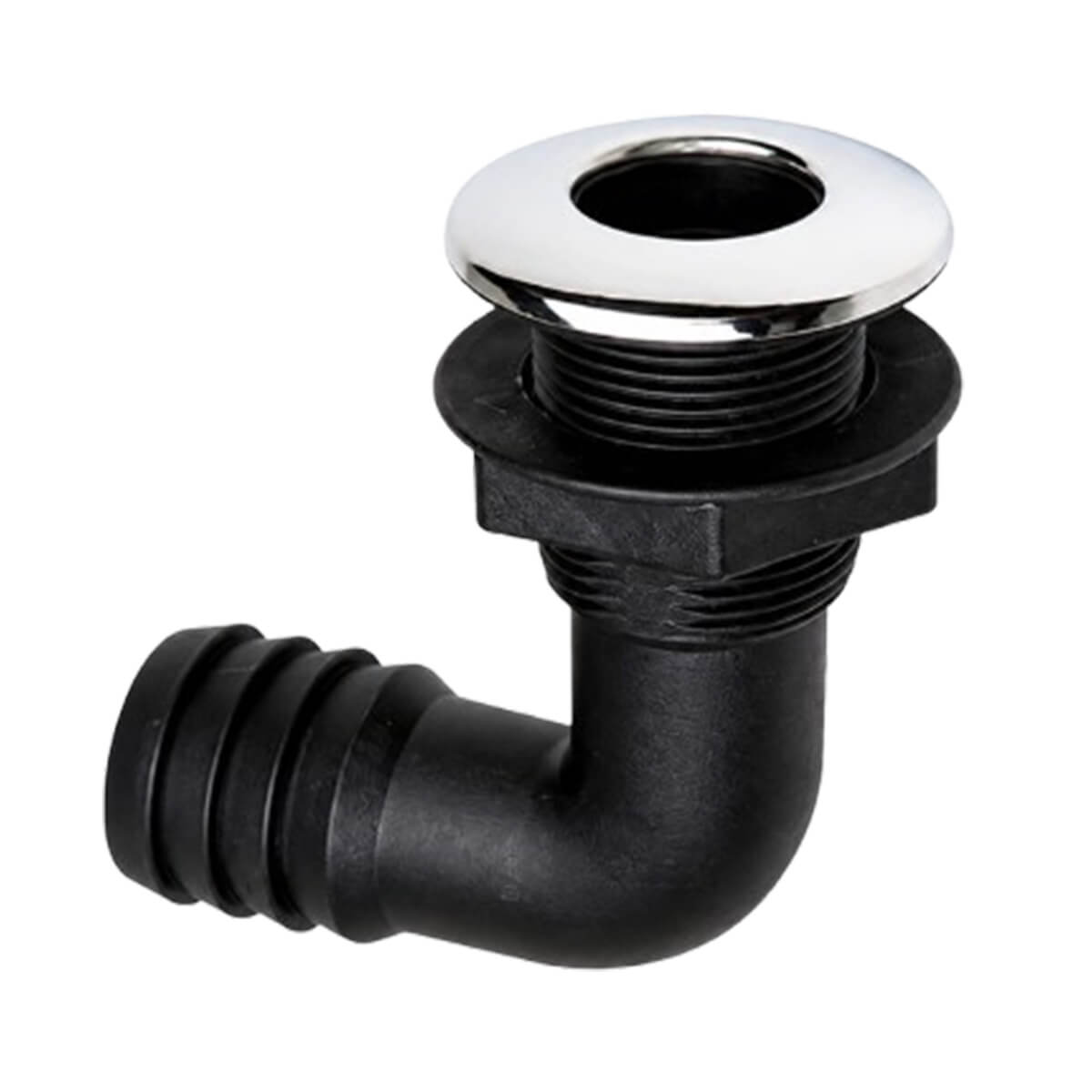

CANSB 90° Thru Hull Fitting With SS Top Cover is a marine water outlet fitting designed for installing a secure through-hull drainage connection on boats and marine structures. This 90-degree thru hull fitting combines a durable body design with a stainless steel top cover, providing a practical solution for directing water flow through the hull while maintaining a clean and finished exterior appearance. It is commonly used for marine drainage applications where a reliable water outlet connection is required.

The fitting features a right-angle hose outlet design that allows easier hose routing in areas where installation space is limited. The 90° angle helps reduce sharp hose bends and provides a more organized connection between the drainage outlet and the connected hose system. The threaded mounting section allows installation through the hull surface with proper sealing components, creating a stable connection for marine applications.

The CANSB 90° Thru Hull Fitting With SS Top Cover is manufactured with a black marine-grade fitting body and a stainless steel top cover for the visible outer section. The stainless steel cover provides a neat appearance on the exterior side of the boat, while the angled outlet design supports efficient drainage routing. This thru hull connector is suitable for various boat drainage requirements, including deck drains, cockpit drains, bilge drainage outlets, and other marine water discharge systems.

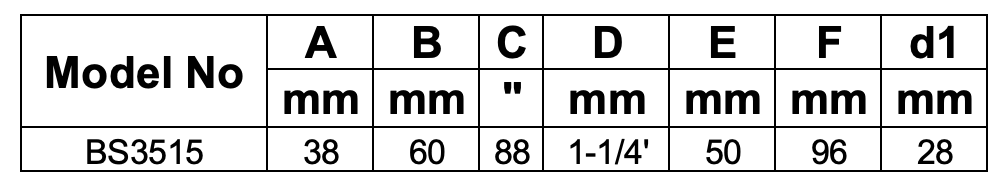

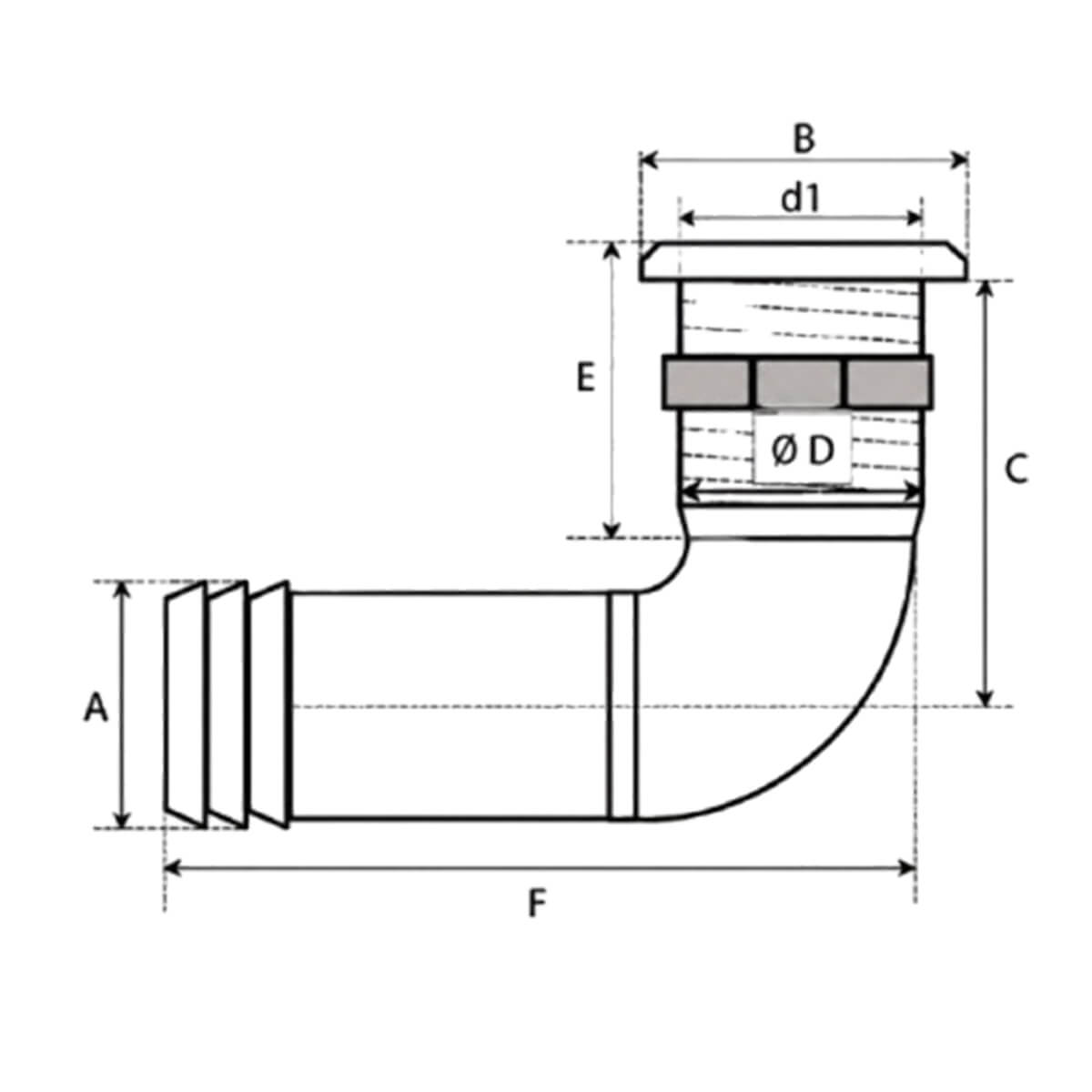

According to the provided dimensions, this model (BS3515) has a hose outlet diameter of 38 mm, an overall top cover diameter of 60 mm, a mounting diameter of 28 mm, and a total length of 96 mm. The fitting height is approximately 50 mm, with a 1-1/4 inch connection size indicated in the specification drawing. These dimensions make it suitable for installations requiring a compact 90-degree water outlet connection.

Designed for marine environments, this thru hull fitting is suitable for installation on boats, yachts, fishing boats, speedboats, and other marine vessels where controlled water drainage is required. Proper installation with suitable marine sealant and compatible hose connections helps create a secure and functional drainage assembly.

Key Features:

• CANSB 90° Thru Hull Fitting With SS Top Cover provides a practical 90-degree marine drainage connection solution for boats and water outlet applications.
• 90-degree angled hose outlet design helps simplify hose routing in tight installation areas.
• Stainless steel top cover provides a clean exterior finish for visible hull installations.
• Durable black fitting body suitable for marine drainage and water discharge applications.
• Designed as a thru hull connector for passing drainage outlets through boat hull surfaces.
• Threaded mounting design allows secure installation with appropriate sealing materials.
• Hose outlet diameter: 38 mm.
• Top cover diameter: 60 mm.
• Mounting diameter (d1): 28 mm.
• Connection size: 1-1/4 inch.
• Overall length: 96 mm.
• Compact design suitable for areas with limited installation space.

Applications / Suitable For:

• CANSB 90° Thru Hull Fitting With SS Top Cover is suitable for marine drainage systems where a reliable 90-degree water outlet connection is required.
• Boat deck drainage systems.
• Cockpit drain outlet installations.
• Yacht and leisure boat drainage applications.
• Fishing boat and workboat water discharge systems.
• Bilge drainage outlet connections.
• Marine hose routing systems requiring a right-angle thru hull fitting.
• Replacement or new installation of boat thru hull connectors.
• Various marine water outlet applications requiring a compact through-hull mounting solution.

FAQs:

Q: What is the CANSB 90° Thru Hull Fitting With SS Top Cover used for?
A: It is used as a marine water outlet and drainage fitting for connecting hoses through a boat hull, deck, or cockpit drainage system.

Q: What is the hose outlet size of this thru hull fitting?
A: The BS3515 model has a 38 mm hose outlet diameter according to the provided specification.

Q: Does this fitting include a stainless steel cover?
A: Yes, this model includes a stainless steel top cover designed for the visible exterior side of the installation.

Q: Where can this 90 degree thru hull fitting be installed?
A: It can be used for boats, yachts, fishing vessels, and other marine applications requiring a through-hull water outlet or drainage connection.
