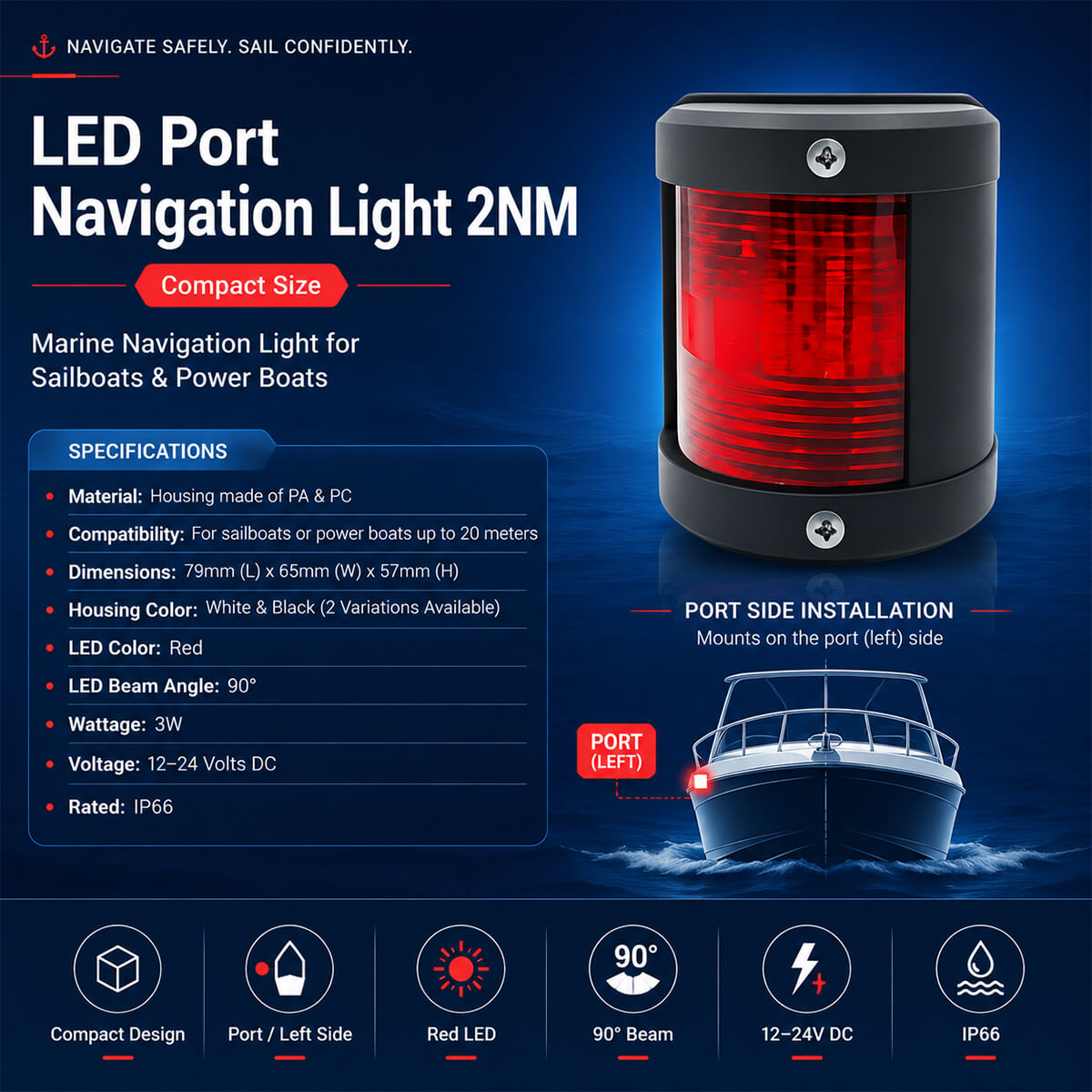

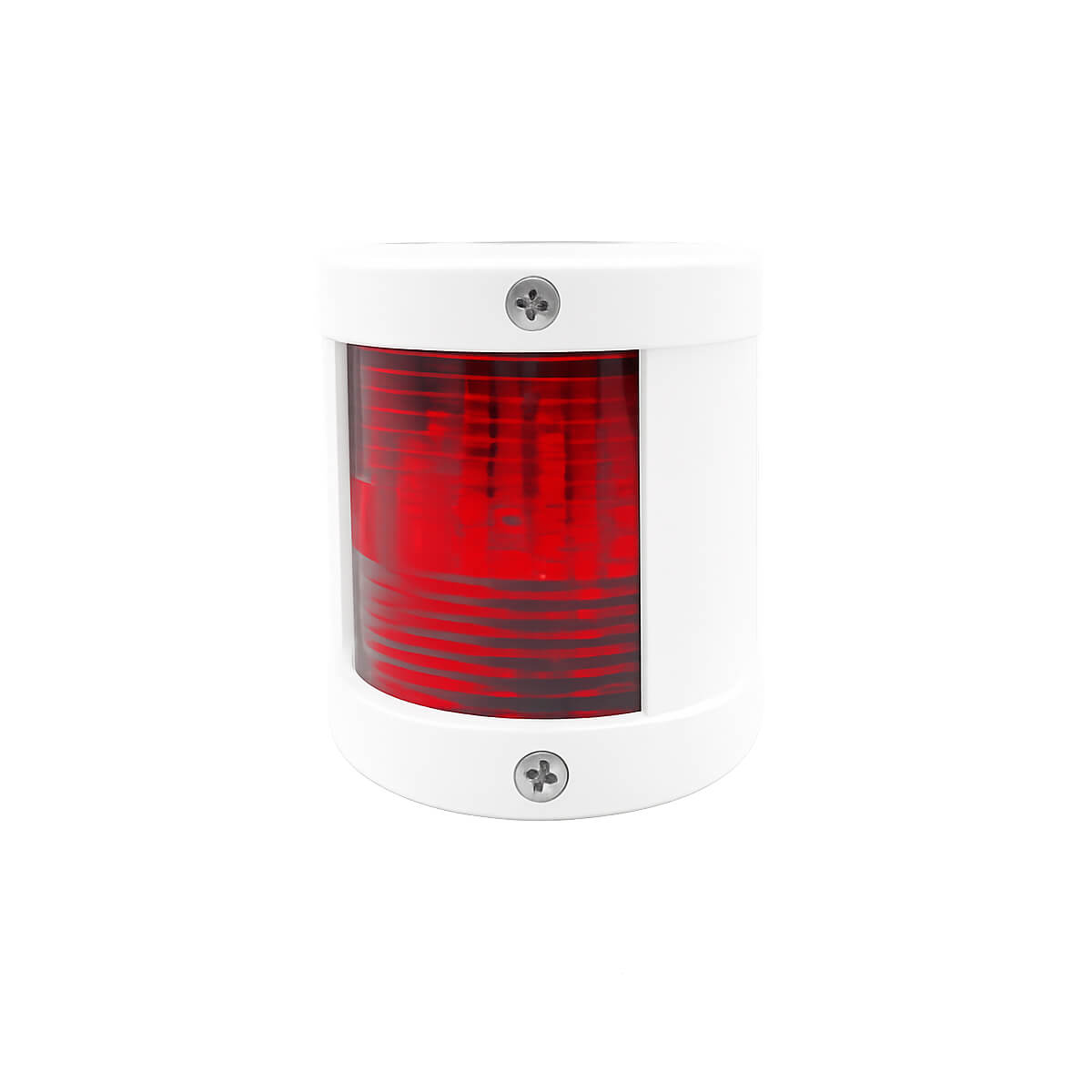

The LED Port Navigation Light 2NM – Compact Size is a compact red marine navigation light designed for use on the port side of compatible boats and vessels. It is suitable for sailboats or power boats up to 20 metres in length and can be used as part of a vessel’s navigation-light arrangement. With a 90° red LED beam angle, this port light helps identify the port-side position of a boat during low-light and nighttime marine operation.

This compact port navigation light has a PA and PC housing, providing a practical construction for regular marine installations. Its small overall dimensions of 79 mm (L) × 65 mm (W) × 57 mm (H) make it a useful option where installation space is limited. It is available with either a white or black housing, allowing buyers to select the version that better matches the boat, yacht, fishing boat, or workboat exterior.

Operating on 12–24 Volts DC, this LED navigation light is suitable for compatible marine electrical systems. The 3W LED design provides red illumination while using a compact fixture size. With an IP66 rating, the housing is designed to help protect the light from dust and powerful water jets encountered in normal marine environments. Before installation, users should confirm vessel wiring, voltage compatibility, mounting position, and applicable local navigation-light requirements.

This compact port lighting unit is suitable for boat owners, yacht operators, fishing boat crews, marine engineers, shipyards, and vessel-maintenance teams seeking a red port navigation light for replacement, refit, maintenance, or new installation projects. It can be paired with compatible port and starboard lights to create a complete side-light arrangement for suitable vessels. For correct use, install the light in an appropriate port-side location based on the vessel layout and relevant marine regulations.

Key Features:

• Compact LED port navigation light for compatible boats up to 20 metres
• Red LED illumination for port-side marine navigation-light applications
• 90° LED beam angle
• PA and PC housing construction
• Available in two housing colour variations: white and black
• Compact dimensions: 79 mm (L) × 65 mm (W) × 57 mm (H)
• Suitable for 12–24V DC marine electrical systems
• 3W power consumption
• IP66-rated housing
• Suitable for port and starboard lights arrangements on compatible vessels

Applications / Suitable For:

• Sailboats and power boats up to 20 metres
• Small yachts and leisure boats
• Fishing boats
• Marine workboats
• Boat refit and maintenance projects
• Replacement port light installations
• Shipyards and marine service workshops
• Marine engineers and vessel installers
• Boats requiring compact port lighting where installation space is limited

FAQs:

Q: What is this LED port navigation light used for?
A: It is used as a red port-side navigation light for compatible boats and vessels up to 20 metres.

Q: What voltage does this port light support?
A: This navigation light operates on 12–24 Volts DC electrical systems.

Q: Is this available in different body colours?
A: Yes. It is available in two housing colour variations: white and black.

Q: What are the dimensions of the compact light?
A: The dimensions are 79 mm long, 65 mm wide, and 57 mm high.
