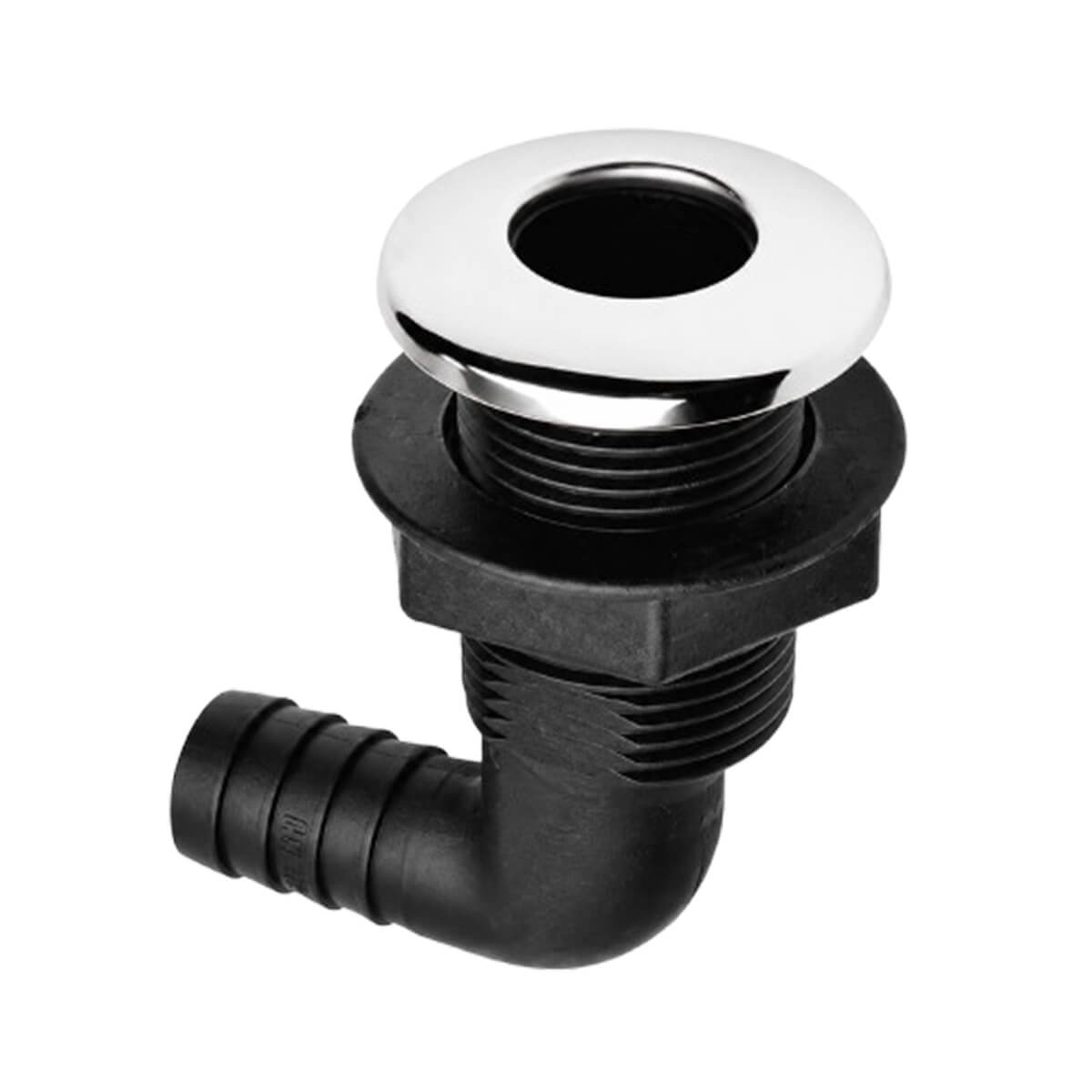

CANSB 90° Thru Hull Fitting With SS Top Cover is a marine plumbing component designed to create a secure through-hull connection for boat drainage and water outlet applications. This 90 degree thru hull fitting features a practical elbow outlet design with a stainless steel top cover, providing a clean external appearance while allowing efficient hose routing in marine installations. It is commonly used as a boat water outlet, drain outlet, and marine thru hull fitting for different onboard water management systems.

The fitting is designed with a threaded mounting body that allows installation through the boat hull or deck surface with a suitable sealing arrangement. The 90-degree angled hose outlet helps direct the connected hose horizontally, making it suitable for areas where installation space is limited. This design helps maintain a cleaner plumbing layout compared with straight thru hull connectors, especially in compact marine environments.

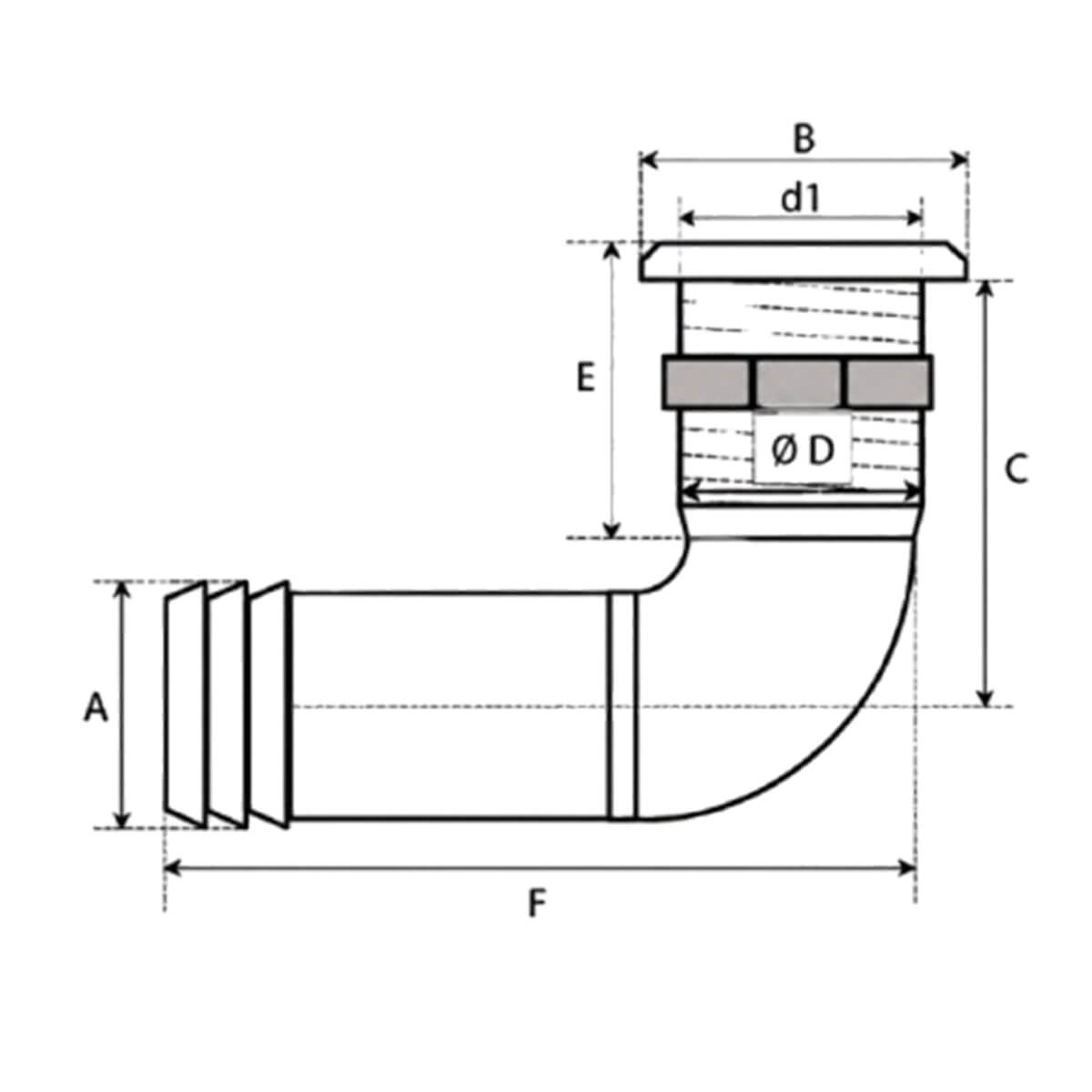

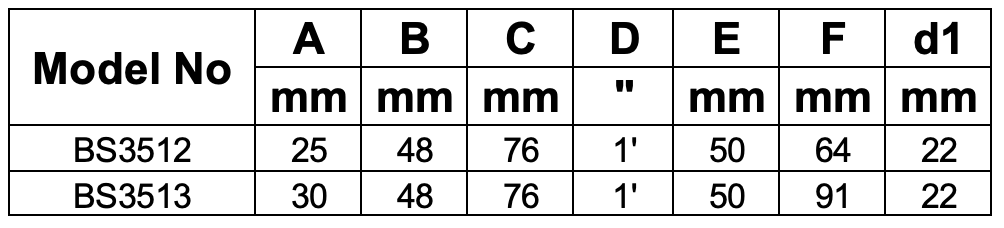

CANSB 90° Thru Hull Fitting With SS Top Cover is available in two hose outlet size variants to support different marine hose connection requirements. The available hose outlet sizes are 25 mm and 30 mm, allowing users to select the suitable option according to their plumbing system. According to the provided specifications, the fitting has a B dimension of 48 mm, C dimension of 76 mm, E dimension of 50 mm, and d1 dimension of 22 mm.

This marine thru hull fitting is suitable for various boat and yacht plumbing applications where water needs to pass safely through the hull or deck area. The angled outlet design makes it useful for cockpit drains, deck drainage systems, boat water outlets, and other marine drainage connections where flexible hose positioning is required. The compact structure helps provide an organized installation while maintaining easy access for hose connection and maintenance.

The stainless steel top cover gives the fitting a clean and professional appearance on the exterior side of the boat, making it suitable for visible hull and deck installations. Combined with the threaded body and 90-degree hose outlet, this thru hull connector provides a practical solution for marine builders, boat manufacturers, repair professionals, and boat owners working on drainage and water outlet systems.

Designed for marine plumbing applications, the CANSB 90° Thru Hull Fitting With SS Top Cover offers flexibility with multiple hose outlet size options, reliable mounting design, and a space-saving 90-degree configuration. It is an effective choice for boat drainage installations where proper water flow routing and a neat external finish are required.

Key Features:

• CANSB 90° Thru Hull Fitting With SS Top Cover is designed for marine water outlet and drainage connections with a 90-degree angled hose outlet design.
• Available with two hose outlet size options: 25 mm and 30 mm.
• Stainless steel top cover provides a clean and finished exterior appearance.
• 90-degree elbow outlet design helps simplify hose routing in limited spaces.
• Suitable for boat drainage and water outlet applications.
• Threaded thru hull fitting design supports secure mounting through hull or deck surfaces.
• Compact design helps maintain an organized marine plumbing layout.
• Suitable for connection with compatible marine hoses and drainage systems.

Applications / Suitable For:

• Boat water outlet connections
• Marine thru hull installations
• Cockpit drain systems
• Deck drainage systems
• Yacht and boat plumbing applications
• Marine hose connection systems
• Boat repair and maintenance projects
• Drain outlet installations requiring a 90-degree fitting
• Water routing applications on boats and marine vessels

FAQs:

Q: What is the CANSB 90° Thru Hull Fitting With SS Top Cover used for?
A: It is used for creating a through-hull connection for marine drainage, water outlet, and hose connection applications on boats and yachts.

Q: What hose outlet sizes are available for this thru hull fitting?
A: The CANSB 90° Thru Hull Fitting With SS Top Cover is available with two hose outlet sizes: 25 mm and 30 mm.

Q: Why is the outlet designed at 90 degrees?
A: The 90-degree outlet design helps direct the hose connection sideways, making installation easier in areas with limited space and helping create a cleaner plumbing arrangement.
