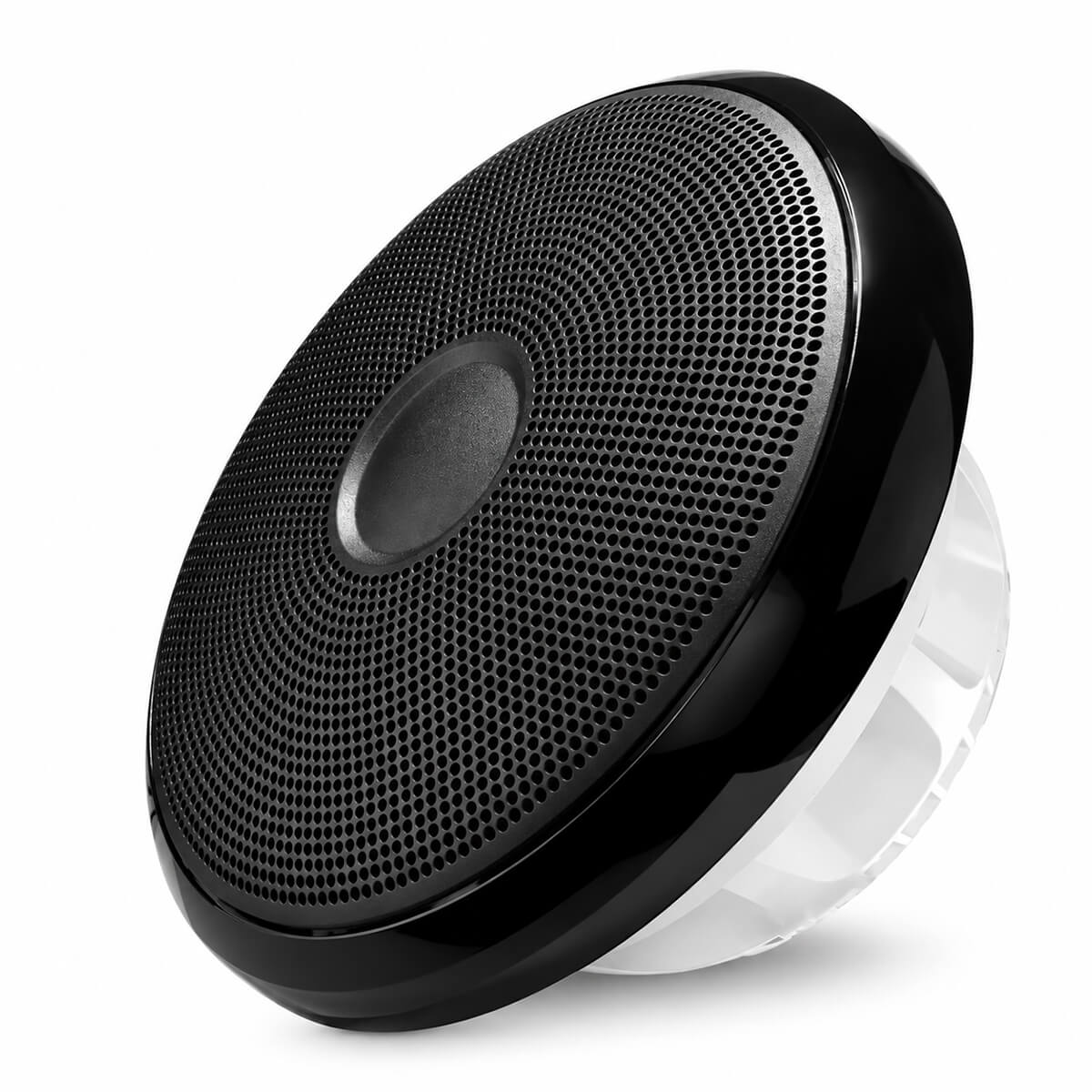

Fusion XS Series 10″ Marine Subwoofer is a purpose-built marine bass speaker designed to add clear, powerful low-frequency sound to an onboard audio system. With 120 W RMS continuous power handling, 4 Ω nominal impedance, and a frequency response of 30 Hz–2 kHz, it supports strong bass reproduction for music played aboard boats and other marine vessels. The 87 dB sensitivity rating helps the subwoofer convert amplifier power into effective sound output, making it a practical addition to a compatible Fusion marine audio installation.

Designed for exposed marine environments, this 10-inch marine subwoofer carries an IP65 water and dust rating. This means its enclosure design is protected against dust ingress and water jets when correctly installed. The polypropylene cone and rubber surround provide a suitable combination of rigidity and flexibility for reliable low-frequency operation. Fusion’s marine-focused construction makes this waterproof subwoofer suitable for locations where ordinary automotive or indoor speakers may be exposed to moisture, spray, dust, and changing temperatures. Its specified operating temperature range is 0°C to 50°C (32°F to 122°F).

The Fusion XS Series 10″ Marine Subwoofer has an overall diameter of 274 mm (10.79″) and an overall depth of 142 mm (5.59″). Installation requires a mounting-diameter clearance of 223 mm (8.78″) and a mounting-depth clearance of 113 mm (4.45″). Once fitted, the front grille projects 37 mm (1.46″) from the mounting surface. These dimensions should be checked carefully against the selected panel, bulkhead or enclosure before cutting the installation opening. The unit weighs 2.8 kg (6.17 lbs) and uses spade connectors for its speaker wiring.

Supplied with interchangeable white and black grille options, the boat subwoofer can be coordinated with different cockpit, cabin and deck-area colour schemes. Its clean, circular design works with modern boat interiors while allowing the grille colour to be selected according to the installation area. The specified compass-safe distance is 370 cm (146″), so its mounting position must be planned with adequate separation from a magnetic compass.

This 10 inch marine subwoofer is designed to reproduce the lower frequencies that standard full-range marine speakers may not deliver with the same depth. It can support a more balanced onboard sound system by handling bass content while the main speakers reproduce vocals and higher frequencies. For correct performance, it should be connected to a compatible marine amplifier or audio system that matches its 4 Ω impedance and 120 W RMS rating. Amplifier settings, wiring size, and installation configuration should follow the equipment manufacturer’s guidance.

Part number 010-02198-00 identifies this XS Series 10-inch model. Fusion specifies a three-year warranty for the product. Buyers comparing a marine subwoofer, boat subwoofer, or marine bass speaker should confirm the available mounting space, amplifier compatibility, and compass separation before installation.

Key Features:

• Fusion XS Series 10″ Marine Subwoofer delivers dedicated low-frequency reproduction for compatible onboard marine audio systems.
• Handles 120 W RMS continuous power through a 4 Ω nominal-impedance design.
• Provides a 30 Hz–2 kHz frequency response with a sensitivity rating of 87 dB at 1 W/1 m.
• IP65-rated construction protects against dust and water jets when the subwoofer is properly installed.
• Uses a polypropylene cone with a rubber surround for controlled bass movement and marine-oriented durability.
• Includes white and black grille colour options to suit different vessel interiors and installation styles.
• Measures 274 mm (10.79″) in overall diameter and 142 mm (5.59″) in overall depth.
• Requires a 223 mm (8.78″) mounting-diameter clearance and 113 mm (4.45″) mounting-depth clearance.
• Features a 37 mm (1.46″) frontal grille protrusion for installation planning.
• Uses straightforward spade connectors for speaker wiring.
• Operates within a specified temperature range of 0°C to 50°C (32°F to 122°F).
• Requires a compass-safe separation distance of 370 cm (146″).
• Weighs 2.8 kg (6.17 lbs) and is covered by a three-year manufacturer warranty.
• Identified by Fusion part number 010-02198-00.

Applications / Suitable For:

• Fusion XS Series 10″ Marine Subwoofer is suitable for adding dedicated bass to compatible audio systems on boats, yachts, and other recreational marine vessels.
• Marine stereo upgrades where full-range speakers need additional low-frequency support.
• Cockpit, cabin, deck, and entertainment-area installations with suitable mounting space and protection.
• New boat audio installations using a compatible 4 Ω marine amplifier.
• Replacement or system-expansion projects requiring a 10 inch marine subwoofer with 120 W RMS power handling.
• Installations where a white or black grille is needed to coordinate with the vessel’s interior or deck design.
• Marine environments that require an IP65-rated speaker rather than a standard indoor or automotive subwoofer.
• Fixed-panel installations that provide the specified cut-out diameter, mounting depth, and compass-safe distance.

FAQs:

Q: Is the Fusion XS Series 10″ Marine Subwoofer waterproof?
A: It has an IP65 water and dust rating, providing protection against dust and water jets when properly installed. It should not be treated as a fully submersible speaker.

Q: What amplifier is suitable for this marine subwoofer?
A: Use a compatible amplifier designed to operate with a 4 Ω subwoofer and its 120 W RMS continuous power rating. Confirm the amplifier settings and wiring requirements before connection.

Q: What space is required to install it?
A: Installation requires a 223 mm (8.78″) mounting-diameter clearance and at least 113 mm (4.45″) of mounting-depth clearance. The front grille protrudes 37 mm (1.46″).

Q: Does it come in both black and white?
A: The Fusion XS Series 10″ Marine Subwoofer is supplied with white and black grille colour options, allowing the visible finish to match different boat interiors.
