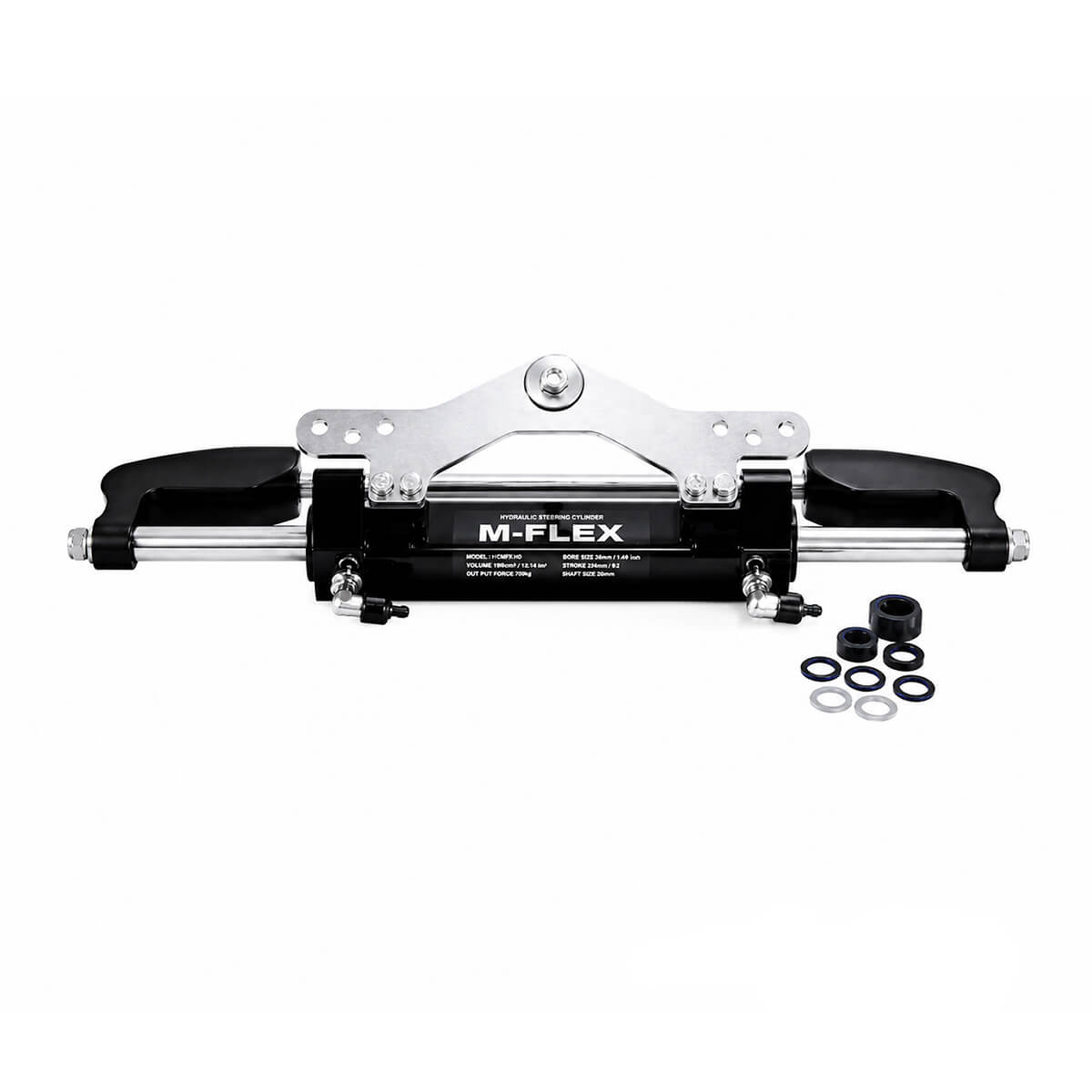

M-FLEX Hydraulic Steering Cylinder For Outboard Steering System – 100HP, 150HP, 600HP & 700HP is a front-mount hydraulic steering cylinder designed for mechanical-to-hydraulic steering conversions and complete hydraulic steering systems used on outboard-powered boats. Available in four variants for engines up to 100HP, 150HP, 600HP, and 700HP, this marine steering cylinder converts hydraulic pressure from the helm pump into smooth and controlled engine movement, helping improve steering response while reducing operator effort. It is suitable for single outboard installations across a wide range of recreational and commercial marine applications, including fishing boats, center console boats, workboats, patrol boats, rescue vessels, leisure boats, and utility craft.

Built as a key component of a hydraulic steering system, this hydraulic steering cylinder is engineered for dependable steering performance in demanding marine environments. The cylinder features a stainless steel shaft with a hard chrome-plated finish for corrosion resistance, an anodized aluminum tube, anodized aluminum steering arms, and stainless steel lock nuts for durability in saltwater and freshwater applications. Its compact front-mount design allows installation where available space is limited, while the balanced cylinder design provides the same number of steering wheel turns from lock-to-lock in both port and starboard directions, resulting in consistent steering feel during operation.

The M-FLEX range includes four models to match different engine capacities and steering requirements. The HCMFX-R1 is designed for single outboard engines up to 100HP, offering an 83cc cylinder volume, 264kg output force, 12mm shaft diameter, 25mm bore diameter, and 220mm stroke. The HCMFX-R2 supports single outboard engines up to 150HP, with a 101cc volume, 354kg output force, 16mm shaft diameter, 30mm bore diameter, and 200mm stroke. The HCMFX-R is suitable for single outboard engines up to 600HP, featuring a 132cc volume, 454kg output force, 20mm shaft diameter, 35mm bore diameter, and 203mm stroke. For larger applications, the HCMFX-HD model is designed for single outboard engines up to 700HP, delivering a 162cc cylinder volume, 528kg output force, 22mm shaft diameter, 38mm bore diameter, and 215mm stroke.

Whether replacing an existing boat steering cylinder, upgrading from mechanical steering, or installing a complete hydraulic steering system, this marine steering cylinder integrates as an essential steering component within compatible front-mount hydraulic steering systems. The hydraulic steering ram converts pressure generated by the helm pump into precise linear movement, providing smooth engine articulation for low-speed maneuvering, docking, cruising, and higher-speed navigation. Its balanced hydraulic design also helps maintain equal steering travel in both directions for predictable handling.

The cylinder’s heavy-duty construction is intended to withstand continuous marine use while minimizing maintenance requirements. The corrosion-resistant materials make it suitable for boats operating in coastal, offshore, inland, and freshwater environments. The compact mounting arrangement allows easier installation where engine splash wells or transom space may be limited. In addition, the design supports installation for single and multiple engine configurations, making it adaptable for various hydraulic steering system layouts depending on the selected application.

As a hydraulic cylinder for steering, this product works together with compatible hydraulic helm pumps, hydraulic steering hoses, steering fittings, and hydraulic fluid to create a responsive marine steering system. It is commonly selected by boat owners, marine workshops, boat builders, commercial operators, and maintenance professionals seeking a reliable hydraulic steering ram for outboard-powered vessels. The robust cylinder construction, corrosion-resistant materials, and balanced steering characteristics help provide consistent directional control during everyday marine operation.

For buyers looking for a power steering cylinder, marine steering ram, boat steering cylinder, or hydraulic steering cylinder for outboard boats, the M-FLEX Hydraulic Steering Cylinder range offers multiple capacity options to match different engine sizes while maintaining the same durable construction, compact front-mount installation, and balanced hydraulic steering performance.

Key Features:

• M-FLEX Hydraulic Steering Cylinder For Outboard Steering System – 100HP, 150HP, 600HP & 700HP is available in four variants to suit different outboard engine capacities.
• Front-mount hydraulic steering cylinder for outboard steering systems.
• Suitable for mechanical-to-hydraulic steering conversions and complete hydraulic steering installations.
• Models available for engines up to 100HP, 150HP, 600HP, and 700HP.
• Stainless steel steering shaft with hard chrome plating.
• Anodized aluminum cylinder tube for improved corrosion resistance.
• Anodized aluminum steering arms.
• Stainless steel lock nuts.
• Compact design for installations where steering space is limited.
• Balanced cylinder design provides equal lock-to-lock steering from port to starboard.
• Designed for installation on single and multiple engine steering systems where applicable.
• Smooth hydraulic steering response with reduced steering effort.
• Suitable as a replacement hydraulic cylinder, hydraulic steering ram, marine steering cylinder, or boat steering cylinder within compatible hydraulic steering systems.

Applications / Suitable For:

• M-FLEX Hydraulic Steering Cylinder For Outboard Steering System – 100HP, 150HP, 600HP & 700HP is suitable for outboard-powered boats requiring hydraulic steering control.
• Single outboard engine installations.
• Compatible hydraulic steering system upgrades.
• Mechanical-to-hydraulic steering conversions.
• Fishing boats.
• Center console boats.
• Recreational boats.
• Leisure boats.
• Commercial workboats.
• Patrol boats.
• Rescue boats.
• Utility boats.
• Inland watercraft.
• Coastal marine applications.
• Freshwater and saltwater boating environments.
• Marine repair and replacement steering projects.

FAQs:

Q: Which engine sizes are available for this hydraulic steering cylinder?
A: Four models are available for outboard engines up to 100HP, 150HP, 600HP, and 700HP.

Q: Is this a front-mount hydraulic steering cylinder?
A: Yes. It is designed as a front-mount hydraulic steering cylinder for compatible hydraulic steering systems.

Q: What materials are used in the cylinder construction?
A: The cylinder features a hard chrome-plated stainless steel shaft, anodized aluminum tube, anodized aluminum arms, and stainless steel lock nuts.

Q: Can this steering cylinder be used for multiple engine installations?
A: Yes. According to the manufacturer, the cylinder design supports installation for single and multiple engine steering systems where applicable.
