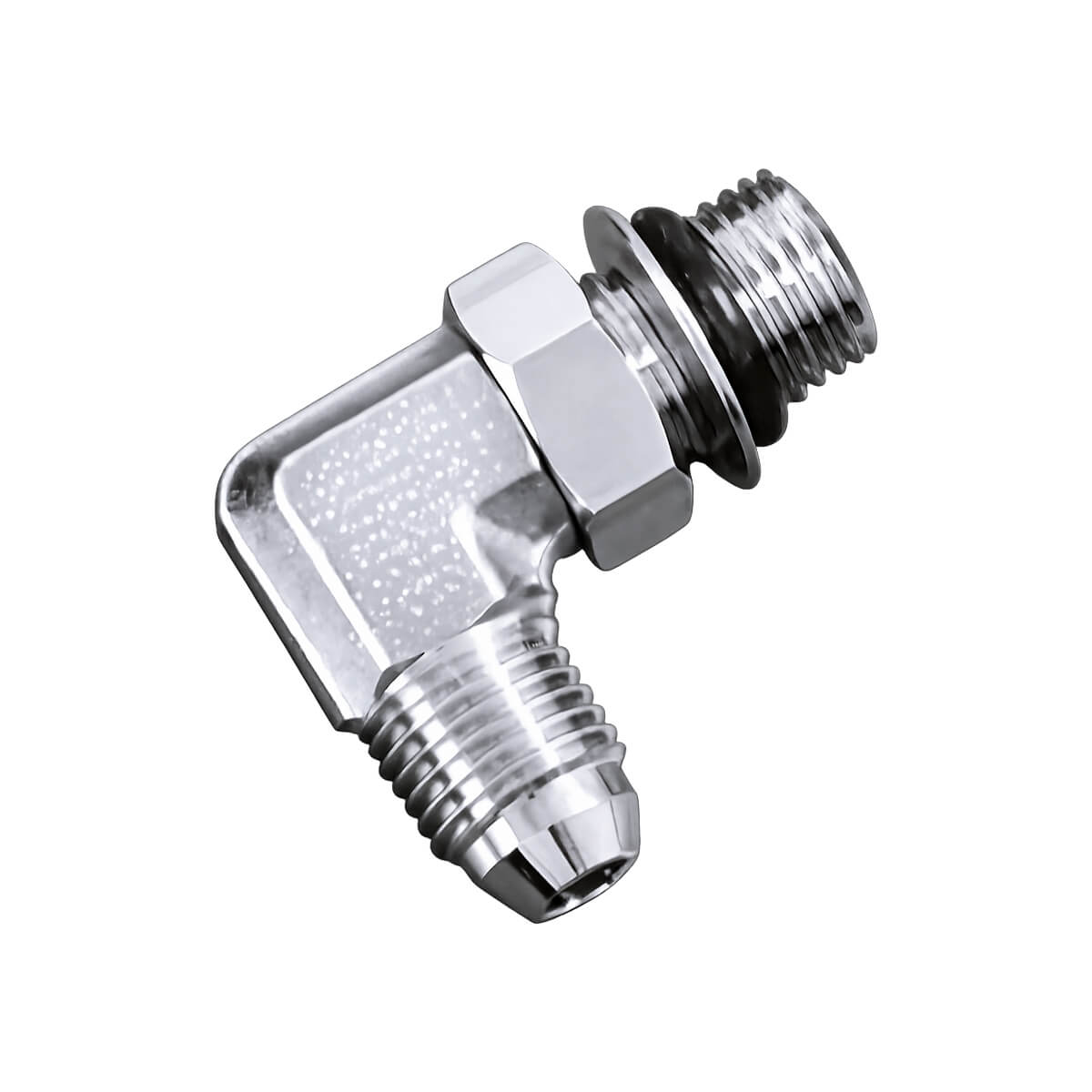

M-FLEX 1/4″ & 3/8″ SS Hydraulic Steering Elbow Fitting is designed to provide a secure 90-degree hydraulic hose connection for marine hydraulic steering systems where space is limited or a straight fitting is not practical. Manufactured from stainless steel, this hydraulic elbow fitting helps create a clean and efficient hose routing while maintaining a reliable hydraulic connection between steering components. It is commonly used with hydraulic steering helm pumps, steering cylinders, and hydraulic hoses installed on recreational boats, fishing boats, workboats, RIBs, center console boats, and other marine vessels equipped with hydraulic steering.

A well-designed steering elbow plays an important role in reducing unnecessary hose bending and minimizing stress on hydraulic hose assemblies. By changing the hose direction at a right angle, the fitting helps simplify installation in confined engine compartments or steering consoles where routing space is limited. Stainless steel construction offers excellent resistance to moisture, saltwater exposure, and harsh marine environments, making it a suitable choice for long-term marine use. The fitting is available in 1/4″ and 3/8″ hydraulic connection sizes, allowing it to suit a variety of hydraulic steering system configurations depending on the installation requirements.

This elbow hydraulic fitting is manufactured with precision-machined threaded connections to help achieve a proper seal when installed according to the steering system manufacturer’s recommendations. It can be used during new hydraulic steering installations, replacement of worn fittings, or maintenance of existing steering systems. The compact 90-degree design helps improve hose management by reducing excessive hose twisting and allowing a cleaner installation around helm pumps, steering cylinders, bulkheads, and transoms. For marine technicians and boat owners, selecting the correct hydraulic fitting elbow helps maintain efficient hydraulic fluid flow while supporting an organized steering system layout.

Whether you are servicing a recreational vessel or replacing hydraulic steering components during routine maintenance, the M-FLEX 1/4″ & 3/8″ SS Hydraulic Steering Elbow Fitting offers a practical solution for hydraulic hose routing. Its stainless steel body is suitable for demanding marine conditions where corrosion resistance is an important consideration. Designed specifically for hydraulic steering applications, this hydraulic elbow integrates easily into compatible hydraulic steering systems that require right-angle hydraulic connections. Before installation, always confirm thread size, fitting compatibility, and hydraulic hose specifications with your steering system requirements to ensure proper fitment and reliable operation.

Key Features:

• M-FLEX 1/4″ & 3/8″ SS Hydraulic Steering Elbow Fitting is designed to create a reliable 90-degree hydraulic connection for marine hydraulic steering systems.
• Manufactured from stainless steel for improved corrosion resistance in marine environments.
• Available in 1/4″ and 3/8″ connection sizes.
• 90-degree elbow design helps simplify hydraulic hose routing in confined installation spaces.
• Helps reduce excessive hose bending and unnecessary hose stress.
• Suitable for use with compatible hydraulic steering helm pumps, steering cylinders, and hydraulic hoses.
• Precision-machined threaded connections for proper installation with compatible hydraulic components.
• Suitable for replacement, repair, maintenance, or new hydraulic steering installations.
• Compact design supports neat and organized hydraulic hose layouts.
• Ideal for recreational, commercial, and offshore marine steering applications.

Applications / Suitable For:

• M-FLEX 1/4″ & 3/8″ SS Hydraulic Steering Elbow Fitting is suitable for hydraulic steering systems installed on boats and marine vessels requiring a 90-degree hydraulic hose connection.
• Hydraulic steering helm pumps.
• Hydraulic steering cylinders.
• Marine hydraulic hose assemblies.
• Fishing boats.
• Center console boats.
• Cabin cruisers.
• Rigid inflatable boats (RIBs).
• Leisure and recreational boats.
• Workboats and commercial marine applications.
• Steering system maintenance and replacement projects.
• New hydraulic steering installations requiring compact hose routing.

FAQs:

Q: What is this hydraulic elbow fitting used for?
A: It is used to create a 90-degree hydraulic hose connection in compatible marine hydraulic steering systems where space is limited or improved hose routing is required.

Q: What material is the fitting made from?
A: The fitting is manufactured from stainless steel for corrosion resistance in marine environments.

Q: What connection sizes are available?
A: This fitting is available in 1/4″ and 3/8″ hydraulic connection sizes.

Q: Can this fitting be used with any hydraulic steering system?
A: It should only be used with compatible hydraulic steering systems that match the required thread type, connection size, and hydraulic hose specifications. Always verify compatibility before installation.
