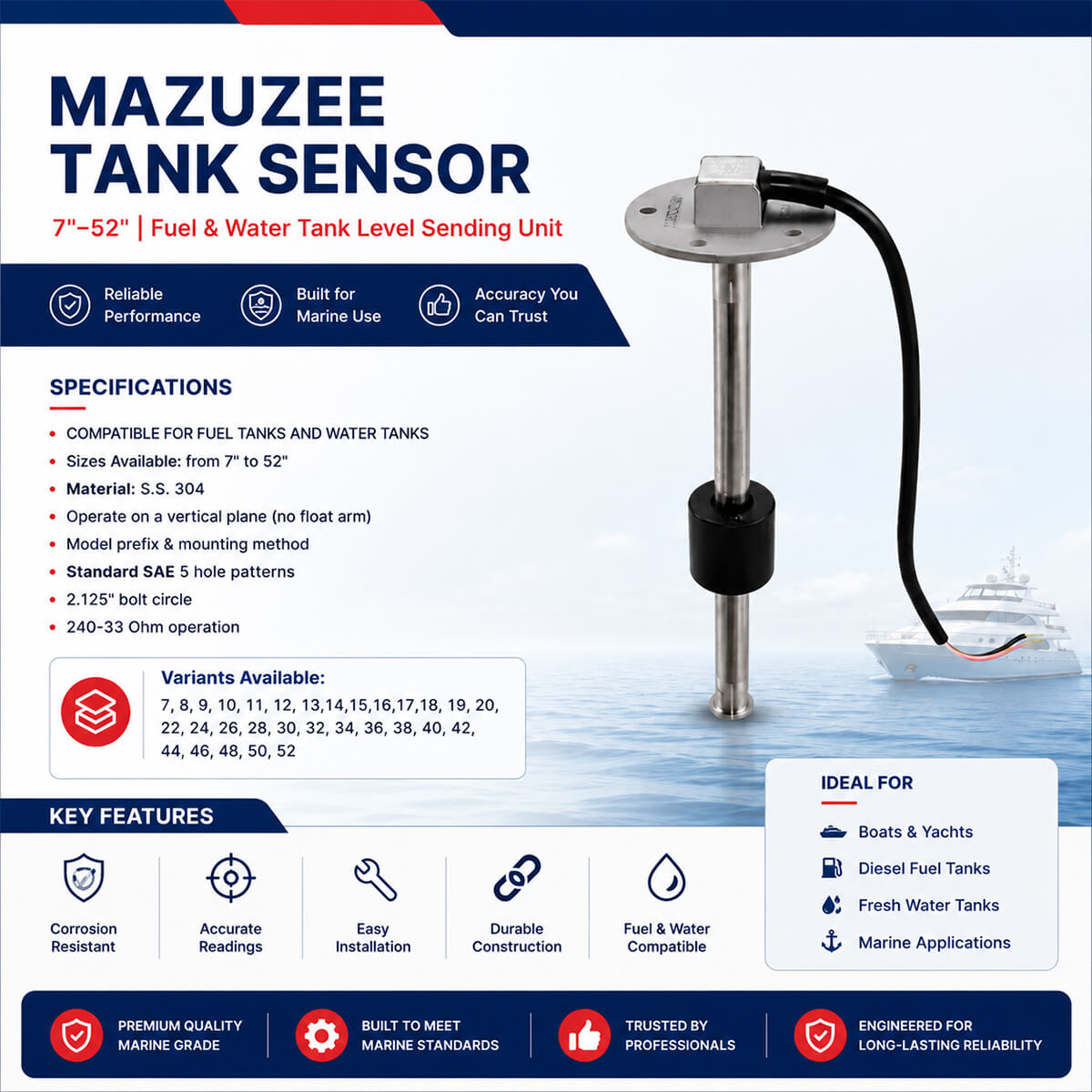

MAZUZEE Tank Sensor 7″–52″ | Fuel & Water Tank Level Sending Unit is a vertical tank level sensor designed to accurately monitor the liquid level inside fuel tanks and water tanks used in marine applications. Built with durable SS 304 stainless steel, this tank sensor is engineered to provide reliable level measurement while resisting corrosion in demanding marine environments. The vertical float design eliminates the need for a traditional float arm, making it an excellent choice for tanks with limited installation space or irregular internal shapes. Available in lengths ranging from 7 inches to 52 inches, it allows installers to select the correct sender based on the depth of the tank for accurate fuel or water level readings.

This fuel tank level sending unit operates using the widely recognised 240–33 Ohm resistance range, making it compatible with many marine fuel gauges and water level gauges that use the same resistance standard. It features a standard SAE 5-hole mounting pattern with a 2.125-inch bolt circle, simplifying installation on tanks designed for SAE sender openings. The vertical reed switch construction provides smooth level measurement while reducing moving mechanical parts compared to conventional swing-arm senders. This design helps deliver consistent readings for fuel gauges and water tank level indicators commonly installed on boats, yachts, workboats, fishing vessels, and other marine craft.

A boat fuel sending unit plays an important role in providing accurate tank level information, allowing operators to monitor fuel or water levels during operation. Whether installed as a fuel level sender, fuel gauge sending unit, water tank level sensor, or tank level sensor, this MAZUZEE sender is suitable for new installations as well as replacement applications where the tank uses the standard SAE 5-bolt mounting arrangement and 240–33 Ohm gauge system. The vertical operating mechanism is particularly suitable for deeper tanks where accurate measurement throughout the tank height is required. Since it measures on a vertical plane instead of using a float arm, it can be installed in many tank designs where side clearance is limited.

Manufactured from 304 stainless steel, the sender body offers excellent resistance to corrosion, making it suitable for marine environments where moisture and exposure to water are common. The stainless steel construction also helps maintain durability over extended service periods. The electrical connection is provided through an integrated cable for straightforward wiring to compatible marine gauges. Choosing the correct sender length according to the internal tank depth is important for obtaining accurate fuel or water level indication.

This fuel tank sensor is commonly used alongside marine dashboard gauges to provide continuous level monitoring. It is equally suitable as a water tank sensor for freshwater storage systems on recreational boats, commercial vessels, service boats, and other marine installations. Whether replacing an existing fuel level sending unit, installing a boat fuel gauge sending unit, or fitting a water tank level indicator, this sensor offers a practical solution for reliable tank level monitoring. Its combination of multiple size options, standard mounting dimensions, stainless steel construction, and industry-standard resistance output makes it suitable for a wide range of marine tank installations where dependable level measurement is required.

The MAZUZEE Tank Sensor is available in the following lengths to suit different tank depths: 7″, 8″, 9″, 10″, 11″, 12″, 13″, 14″, 15″, 16″, 17″, 18″, 19″, 20″, 22″, 24″, 26″, 28″, 30″, 32″, 34″, 36″, 38″, 40″, 42″, 44″, 46″, 48″, 50″, and 52″. Selecting the appropriate length ensures the fuel tank level sensor or water tank level sensor measures the liquid level accurately throughout the usable depth of the tank. This versatility makes it suitable for a wide variety of marine fuel tanks and freshwater tanks across different vessel types.

Key Features:

• MAZUZEE Tank Sensor 7″–52″ | Fuel & Water Tank Level Sending Unit is designed for accurate fuel and water tank level measurement using a vertical float mechanism.
• Compatible with both fuel tanks and water tanks.
• Available in lengths from 7 inches to 52 inches to suit various tank depths.
• Manufactured from SS 304 stainless steel for corrosion resistance and durability.
• Operates on a vertical plane without a traditional float arm.
• Uses the industry-standard 240–33 Ohm resistance range for compatible gauges.
• Standard SAE 5-hole mounting pattern for straightforward installation.
• 2.125-inch bolt circle mounting specification.
• Suitable for use as a fuel tank sensor, fuel level sender, fuel gauge sending unit, boat fuel sending unit, water tank level sensor, and tank level sender.
• Designed for installation in marine fuel and freshwater tank systems where compatible mounting and resistance specifications are used.

Applications / Suitable For:

• MAZUZEE Tank Sensor 7″–52″ | Fuel & Water Tank Level Sending Unit is suitable for monitoring fuel and freshwater tank levels in marine applications.
• Boats and recreational vessels.
• Yachts and cruising vessels.
• Fishing boats.
• Commercial marine vessels.
• Workboats and utility boats.
• Freshwater storage tanks.
• Marine fuel tanks.
• Replacement of compatible fuel level sending units.
• Installation with compatible fuel gauges and water tank level indicators using the 240–33 Ohm system.
• Marine tank monitoring systems requiring a vertical tank level sensor with SAE 5-hole mounting.

FAQs:

Q: Is this tank sensor suitable for both fuel and water tanks?
A: Yes. It is designed for use with both fuel tanks and freshwater tanks.

Q: What resistance range does this sender use?
A: The sensor operates on the 240–33 Ohm resistance standard.

Q: How do I choose the correct sensor length?
A: Select the sender length that matches the internal depth of your tank for accurate level measurement.

Q: What mounting pattern does this tank sender use?
A: It uses the standard SAE 5-hole mounting pattern with a 2.125-inch bolt circle.
