The MAZUZEE Rudder Angle Gauge | Boat Rudder Angle Indicator is a compact marine instrument designed to provide a clear visual indication of the current rudder position while a vessel is underway. By displaying the rudder angle in real time, this rudder angle gauge helps the helm maintain better steering awareness during docking, maneuvering in confined waterways, navigating marinas, and general vessel operation. Whether installed on a recreational boat, fishing vessel, workboat, yacht, or other marine craft, a rudder indicator gauge allows the operator to quickly understand the rudder position without relying solely on steering feel, improving confidence during navigation. The gauge features a standard 52mm diameter for straightforward installation in many marine instrument panels and is available in both black dial (JY09229) and white dial (JY09301) variants to match different dashboard styles. The integrated yellow and orange illumination improves dial visibility in low-light conditions, while the built-in extra circuit for 24V systems supports installation on both 12V and 24V marine electrical systems.

Designed specifically for marine steering indication, this boat rudder angle indicator provides a simple and easy-to-read analog display that helps operators monitor steering corrections during normal cruising and precision maneuvers. The balanced pointer and clearly marked port and starboard scale make it easier to observe rudder movement at a glance, helping reduce unnecessary steering adjustments. A rudder position indicator is especially valuable when operating larger vessels, twin-engine boats, commercial workboats, pilot boats, passenger vessels, or yachts where accurate rudder awareness contributes to smoother handling. The compact 52mm form factor fits neatly alongside other essential marine gauges such as tachometers, voltmeters, fuel gauges, trim gauges, and engine monitoring instruments, creating a clean and organized helm station.

MAZUZEE offers this gauge in two appearance options without changing the functional design. Model JY09229 features a black dial that complements darker instrument panels, while Model JY09301 features a white dial for brighter dashboards or modern helm layouts. Both versions share the same 52mm diameter, integrated yellow and orange lighting, and an extra circuit for 24V applications. These options allow boat builders, marine service providers, and vessel owners to select a gauge that matches the existing dashboard while maintaining consistent steering indication across the helm.

A rudder angle indicator is commonly installed as part of a vessel’s steering instrumentation to provide continuous feedback on rudder position. During docking, reversing, slow-speed maneuvering, and operation in crowded waterways, knowing the exact rudder angle helps improve steering accuracy and reduces uncertainty when making directional changes. This makes the instrument suitable for both new marine installations and replacement of existing rudder indicator gauges with the same mounting size. The illuminated dial also improves readability during early morning departures, night navigation, and reduced-light operating conditions.

The MAZUZEE Rudder Angle Gauge is intended for use with compatible marine rudder angle sensing systems. When properly connected within the vessel’s steering indication system, it provides a clear analog display of rudder position to assist with routine navigation and vessel handling. The standard panel size simplifies integration into many marine dashboards without requiring significant modifications, making it a practical solution for marine technicians, boat manufacturers, refit projects, and vessel maintenance professionals.

With its compact design, analog needle display, illuminated dial, and dual voltage compatibility through the additional 24V circuit, the MAZUZEE Rudder Angle Gauge serves as an important part of a vessel’s navigation instrument panel. It is well suited for operators seeking a reliable boat rudder angle indicator, rudder position indicator, rudder indicator gauge, or marine steering indicator that integrates neatly with other marine instrumentation while providing clear steering position information during everyday vessel operation.

Key Features:

• MAZUZEE Rudder Angle Gauge | Boat Rudder Angle Indicator provides a clear analog display of rudder position for improved steering awareness during vessel operation.
• Standard 52mm diameter gauge for common marine instrument panel installations.
• Available in two variants:
  • JY09229 – Black Dial

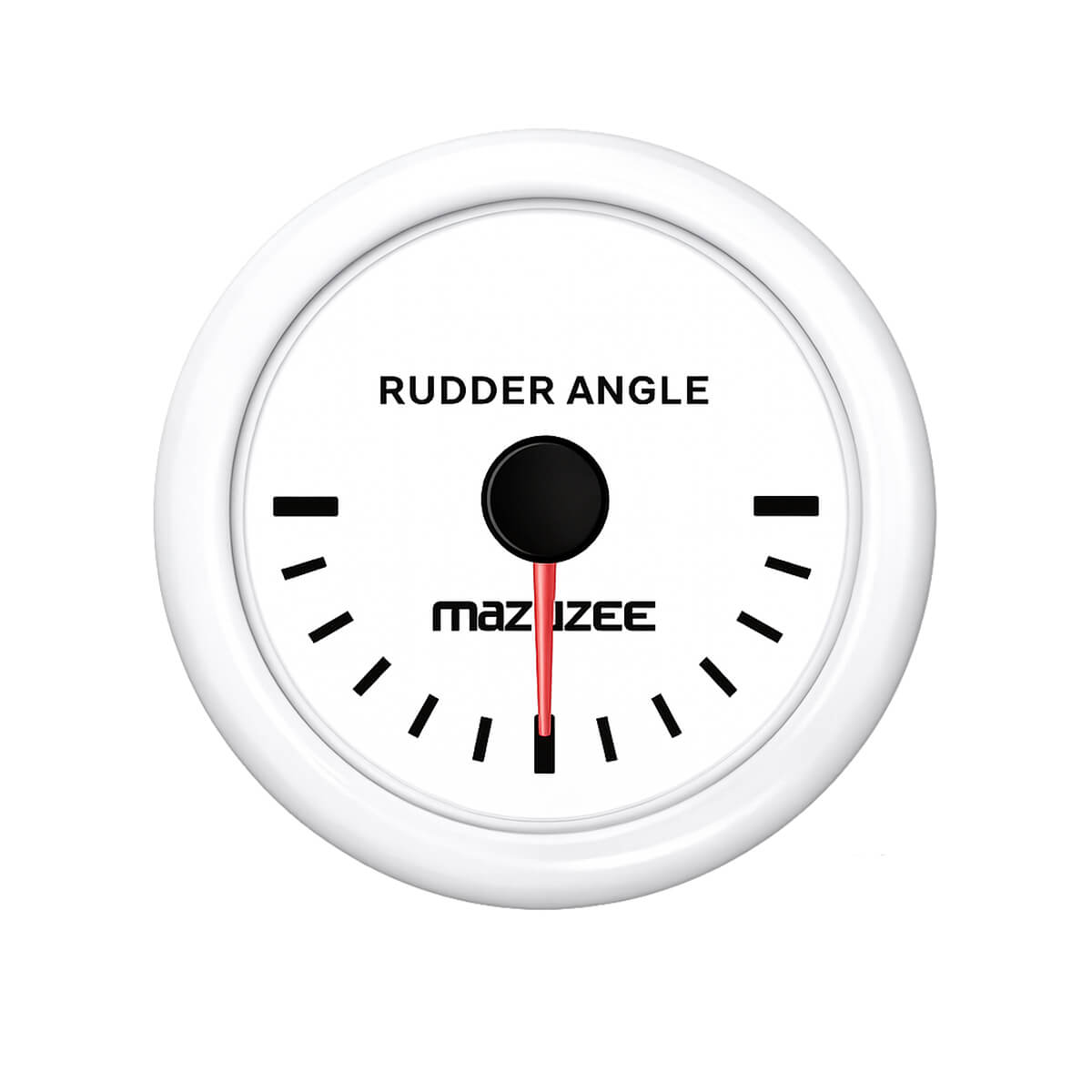

  • JY09301 – White Dial
• Built-in yellow and orange illumination for improved visibility in low-light conditions.
• Includes an extra circuit for 24V systems.
• Easy-to-read pointer with clearly marked port and starboard indication.
• Suitable for installation alongside other marine dashboard gauges.
• Compact marine instrument designed for use with compatible rudder angle sensing systems.
• Helps operators monitor rudder position during docking, maneuvering, and normal navigation.

Applications / Suitable For:

• MAZUZEE Rudder Angle Gauge | Boat Rudder Angle Indicator is suitable for boats requiring visual monitoring of rudder position during steering and navigation.
• Recreational boats.
• Fishing boats.
• Cabin cruisers.
• Motor yachts.
• Sailing yachts.
• Commercial workboats.
• Passenger vessels.
• Patrol boats.
• Pilot boats.
• Marine steering control panels.
• Boat dashboard upgrades and replacement marine gauge installations.

FAQs:

Q: What is the purpose of a rudder angle gauge?
A: A rudder angle gauge displays the current rudder position, helping the operator monitor steering direction during navigation and maneuvering.

Q: What size is the MAZUZEE Rudder Angle Gauge?
A: Both available variants feature a standard 52mm diameter gauge.

Q: What are the available variants?
A: The gauge is available as JY09229 with a black dial and JY09301 with a white dial.

Q: Does this gauge support 24V electrical systems?
A: Yes. Both variants include an extra circuit for 24V applications and feature yellow and orange illumination.
