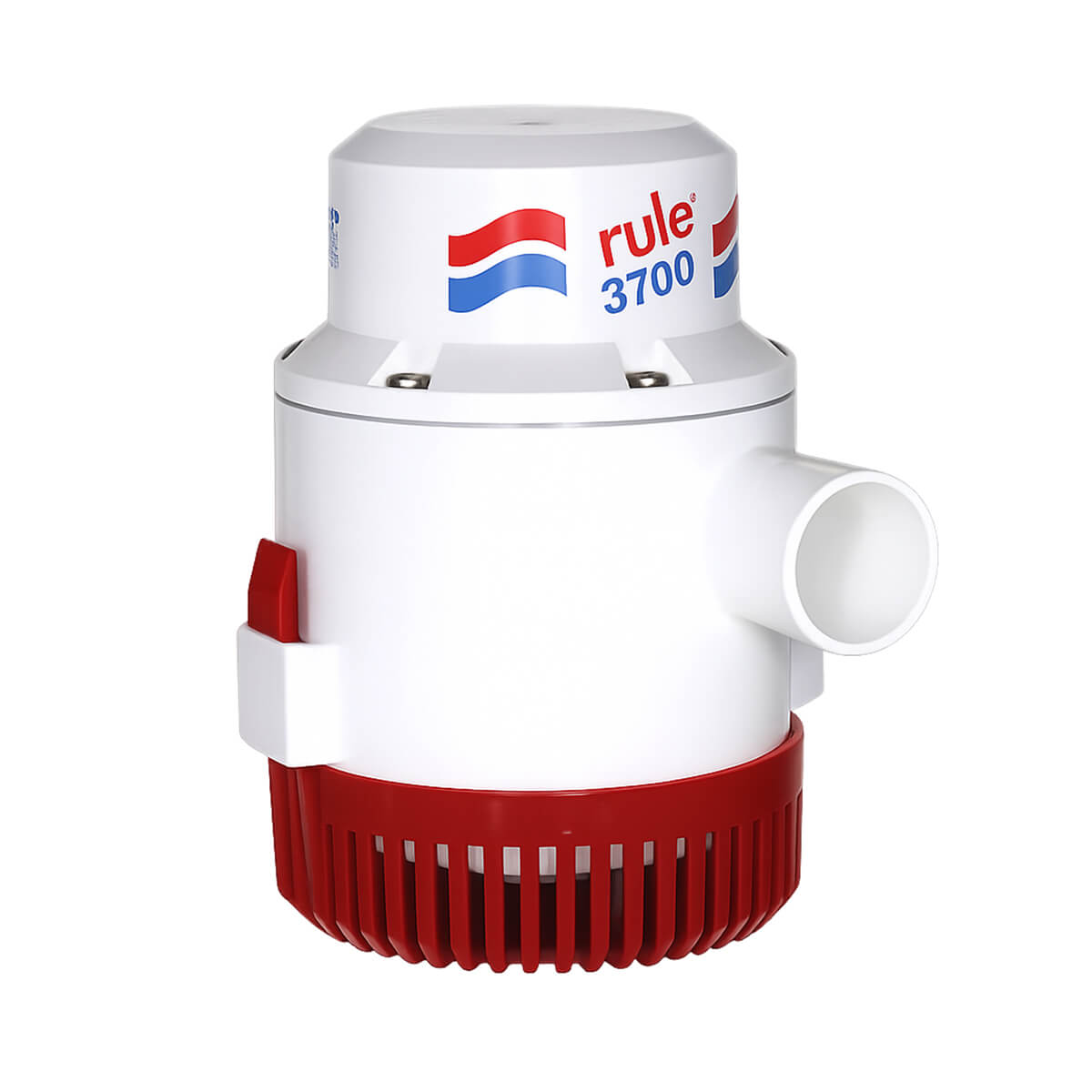

Rule 3700 GPH Boat Bilge Pump – 12V & 24V is a high-capacity electric bilge pump designed to remove accumulated water from the lower bilge areas of boats, yachts, workboats, and other marine vessels. With a rated open-flow capacity of 3,700 gallons per hour, or approximately 14,000 litres per hour, it is suitable for marine installations where a substantial volume of bilge water may need to be discharged. The large 1-1/2-inch outlet supports the higher flow rate and connects to a suitable marine discharge hose. Actual pumping output may vary depending on discharge height, hose length, bends, electrical supply, and overall installation conditions.

This Rule bilge pump is available in two DC voltage variants. The M14A model operates on a 12V DC marine electrical system, while the M16A model is intended for a 24V DC system. Both versions are non-automatic pumps and provide the same rated 3700 GPH capacity and 1-1/2-inch outlet diameter. Buyers should select the voltage that matches the vessel’s existing battery bank and onboard electrical system. A 12V pump must not be connected to a 24V supply, and the 24V version should not be selected for a 12V installation.

As a non-automatic bilge pump, the unit requires an external control method. It can be connected to a compatible float switch for automatic water-level operation or to a marine panel switch for direct manual control. In this context, the term manual bilge pump refers to switch-controlled operation; the product is still an electrically powered submersible pump rather than a hand-operated pump. Rule’s guidance confirms that non-automatic bilge pumps require a float switch or panel switch to operate.

The pump is designed for installation inside the bilge, where its submersible construction allows it to collect water through the lower strainer area and discharge it through the side outlet. Its removable snap-lock strainer base helps provide access for cleaning and routine inspection. This is useful in bilge spaces where dirt, leaves, fibres, and other debris can gather around the pump intake. The product is also described with a compact long-life motor, anti-airlock protection, marine-grade sealed wiring, a stainless-steel shaft, and protection against rust and corrosion. These features support regular operation in demanding onboard environments.

For dependable performance, the pump should be installed at a low point in the bilge and connected to a correctly sized 1-1/2-inch discharge hose. The discharge route should be kept as direct as practical because excessive hose length, sharp bends, and greater vertical lift can reduce the delivered flow. Proper cable sizing and a stable power supply are also important, as voltage loss can affect pump output. The outlet should lead to an appropriately positioned marine discharge fitting that prevents discharged water from returning to the bilge. Installation and electrical protection should follow the pump documentation and applicable marine wiring practices.

The Rule 3700 GPH bilge pump for boat applications is particularly useful where a smaller pump may not provide sufficient water-removal capacity. It may be installed as the vessel’s primary high-capacity pump or as part of a multi-pump bilge arrangement, depending on the boat design and pumping requirements. Because the pump is non-automatic, the required float switch, panel switch, wiring, hose, and installation fittings should be confirmed separately before purchase.

Key Features:

• Rule 3700 GPH Boat Bilge Pump – 12V & 24V provides high-capacity electric water removal for larger marine bilge spaces, with a rated open-flow capacity of 3,700 GPH or approximately 14,000 LPH.
• Available in two variants: M14A for 12V DC systems and M16A for 24V DC systems.
• Non-automatic operation allows control through a compatible external float switch or marine panel switch.
• Large 1-1/2-inch or 38 mm discharge outlet supports the required high-volume hose connection.
• Completely submersible design for installation at a suitable low point inside the vessel’s bilge.
• Removable snap-lock strainer base provides easier access for intake cleaning and routine maintenance.
• Anti-airlock construction helps support continuous water movement through the pump.
• Marine-grade sealed wiring and corrosion-protected components are intended for onboard use.
• Compact electric motor design provides high pumping capacity without requiring an unnecessarily large installation area.
• Suitable for properly planned primary, secondary, or emergency bilge-pumping arrangements.

Applications / Suitable For:

• Rule 3700 GPH Boat Bilge Pump – 12V & 24V is suitable for high-volume bilge-water removal in boats, yachts, workboats, and commercial or recreational marine vessels.
• Larger bilge compartments require more pumping capacity than a small general-purpose boat bilge pump.
• 12V marine electrical installations using the M14A variant.
• 24V marine electrical installations using the M16A variant.
• Float-switch-controlled systems require automatic activation when bilge water reaches the selected level.
• Panel-switch-controlled installations where the operator starts and stops the pump manually.
• Primary or additional bilge pumping systems are designed according to the vessel’s size and drainage requirements.
• Marine refits, pump replacements, and new-build installations requiring a 1-1/2-inch discharge connection.

FAQs:

Q: Is the Rule 3700 GPH Boat Bilge Pump – 12V & 24V automatic?
A: No. The M14A and M16A are non-automatic electric pumps. A compatible float switch can be added for automatic water-level operation, or a panel switch can be used for manual control.

Q: What is the difference between the M14A and M16A variants?
A: The M14A operates on 12V DC, while the M16A operates on 24V DC. Both provide a rated 3700 GPH capacity and use a 1-1/2-inch discharge outlet.

Q: Is this a hand-operated manual bilge pump?
A: No. It is an electric submersible pump. “Manual” means that it can be activated through an external panel switch rather than starting automatically by itself.

Q: Will the pump always deliver exactly 3700 GPH?
A: The 3700 GPH figure is the rated open-flow capacity. Actual output can be lower because of discharge height, hose length, bends, battery voltage, wiring, and other installation conditions.
