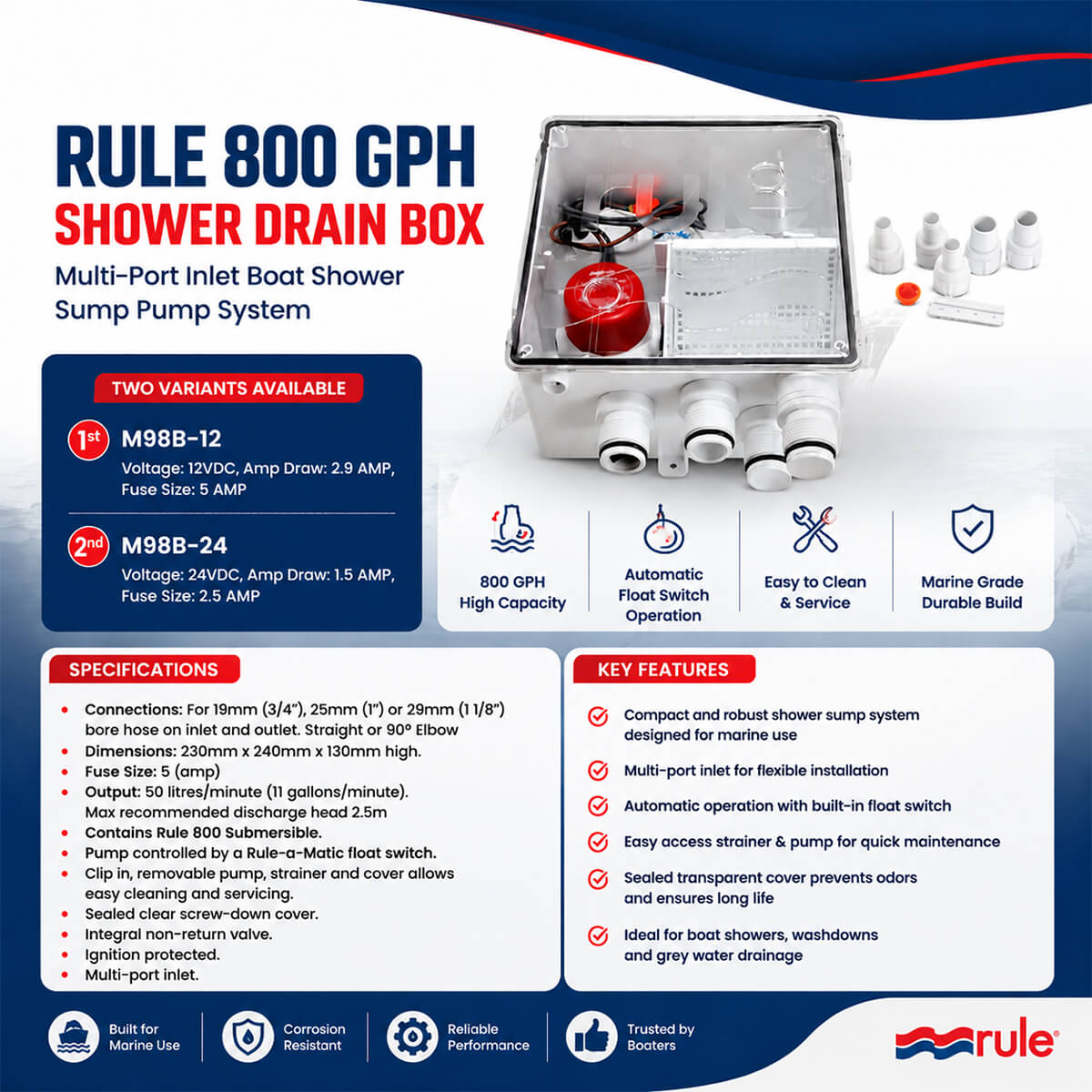

RULE 800 GPH Shower Drain Box – Multi-Port Inlet Boat Shower Sump Pump System is a complete shower drain management solution designed for marine shower installations where efficient removal of grey water is required. This boat shower sump pump system combines a Rule 800 submersible pump, automatic float switch control, and a multi-port inlet design inside a compact drain box to collect and discharge water from onboard shower areas. It is designed to help maintain a clean and dry marine environment by automatically pumping shower waste water away from the collection box.

The RULE 800 GPH Shower Drain Box is suitable for a wide range of marine applications, including boats, yachts, and other vessels with onboard shower facilities. The system features multiple inlet connection options, allowing flexible hose installation using 19mm (3/4″), 25mm (1″), or 29mm (1 1/8″) bore hoses with straight or 90º elbow configurations. Its sealed, clear screw-down cover provides easy visibility of the internal components, while the removable pump, strainer, and cover design allow convenient cleaning and servicing when required.

This marine shower sump pump system is available in two electrical variants: M98B-12 and M98B-24. The M98B-12 model operates at 12VDC with a 2.9 AMP draw and requires a 5 AMP fuse, while the M98B-24 model operates at 24VDC with a 1.5 AMP draw and requires a 2.5 AMP fuse. The system delivers an output capacity of 50 litres per minute (11 gallons per minute) with a maximum recommended discharge head of 2.5 metres.

Designed for practical marine plumbing installations, the shower drain box includes an integral non-return valve and a Rule-a-Matic float switch that automatically controls pump operation. The multi-port inlet design makes it easier to connect shower drains and manage grey water flow from different onboard areas. With dimensions of 230mm x 240mm x 130mm high, this compact boat sump pump system can be installed in limited spaces while providing reliable shower drainage performance.

Key Features:

• RULE 800 GPH Shower Drain Box – Multi-Port Inlet Boat Shower Sump Pump System provides an integrated solution for collecting and removing shower grey water from marine vessels.
• Contains a Rule 800 submersible pump designed for shower drain applications.
• Automatic operation through a Rule-a-Matic float switch for convenient water level control.
• Available in two voltage options: M98B-12 (12VDC) and M98B-24 (24VDC).
• M98B-12 specification: 12VDC operation, 2.9 AMP amp draw, 5 AMP fuse size.
• M98B-24 specification: 24VDC operation, 1.5 AMP amp draw, 2.5 AMP fuse size.
• Multi-port inlet design supports flexible hose routing and installation.
• Compatible with 19mm (3/4″), 25mm (1″), and 29mm (1 1/8″) bore hoses.
• Supports straight or 90º elbow hose connection configurations.
• Output capacity of 50 litres/minute (11 gallons/minute).
• Maximum recommended discharge head of 2.5 metres.
• Clip-in removable pump, strainer, and cover allow easier cleaning and maintenance.
• Sealed clear screw-down cover allows quick inspection of internal components.
• An integral non-return valve helps manage discharge water flow.
• Compact dimensions: 230mm x 240mm x 130mm high.

Applications / Suitable For:

• RULE 800 GPH Shower Drain Box – Multi-Port Inlet Boat Shower Sump Pump System is suitable for marine shower drainage applications where automatic grey water removal is required.
• Boat shower sump systems for recreational and commercial vessels.
• Yacht and cruiser shower drainage installations.
• Marine bathrooms and onboard shower compartments.
• Grey water collection and discharge systems on boats.
• Applications requiring compact sump pump installation in limited spaces.
• Marine plumbing systems using multiple shower or drain hose connections.

FAQs:

Q: What is the RULE 800 GPH Shower Drain Box used for?
A: It is used to collect and automatically pump shower grey water from onboard marine shower areas into the vessel’s discharge system.

Q: What voltage options are available for this boat shower sump pump system?
A: The system is available in two variants: M98B-12 with 12VDC operation and M98B-24 with 24VDC operation.

Q: What hose sizes can be connected to the shower drain box?
A: The drain box supports 19mm (3/4″), 25mm (1″), and 29mm (1 1/8″) bore hoses with straight or 90º elbow connection options.

Q: Is the pump operation automatic?
A: Yes, the system uses a Rule-a-Matic float switch to control the pump automatically based on water level.
