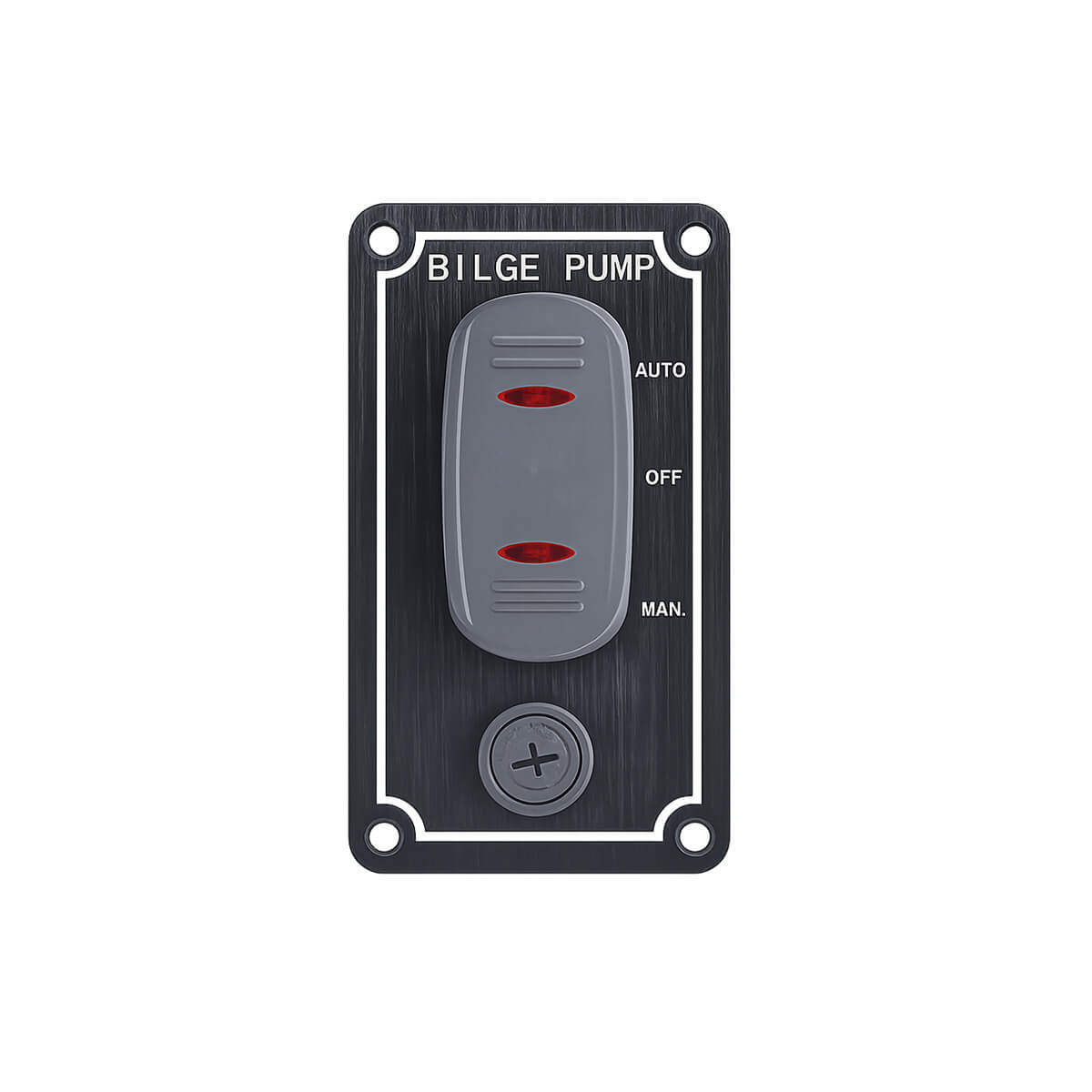

The AAA Bilge Pump Switch is a compact 12V control panel for operating a bilge pump from a boat’s electrical panel, helm station, cabin console or service area. It provides a clearly marked three-way Auto / Off / Manual control arrangement, allowing the user to select automatic pump operation, switch the circuit off, or operate the pump manually when required. The switch is supplied in two panel-orientation variants: Vertical Mount for portrait-style installations and Horizontal Mount for landscape-style installations. Both variants use the same 88.9mm × 50.7mm × 1.5mm panel size, so the choice is based on available mounting space and the preferred layout of the boat’s switch panel.

Designed for 12V DC marine electrical systems, this boat bilge pump switch is built around a black aluminum plate and includes one 15A fuse. The front face is marked “BILGE PUMP,” helping to identify the controlled circuit quickly on a multi-function marine dashboard. Its Auto, Off, and Man labels are arranged beside the rocker control for simple status recognition. The product information confirms an IP65 rating, and the listed configuration includes LED indication. This makes the unit an appropriate choice where a dedicated, clearly labelled control is required for a 12V bilge pump circuit.

In Auto mode, the switch remains in the selected position for continuous automatic control. In Manual mode, the control uses a spring return, returning to the Off position when released; this supports brief attended pump operation rather than leaving the manual setting selected. This practical arrangement makes the AAA Bilge Pump Switch useful where a bilge pump is used with an appropriate automatic switching arrangement, while still giving the operator a direct manual control option at the panel. The 15A fuse forms part of the supplied switch panel configuration. Confirm that the switch is suitable for the installed pump circuit and that the boat’s electrical wiring is correctly planned before fitting.

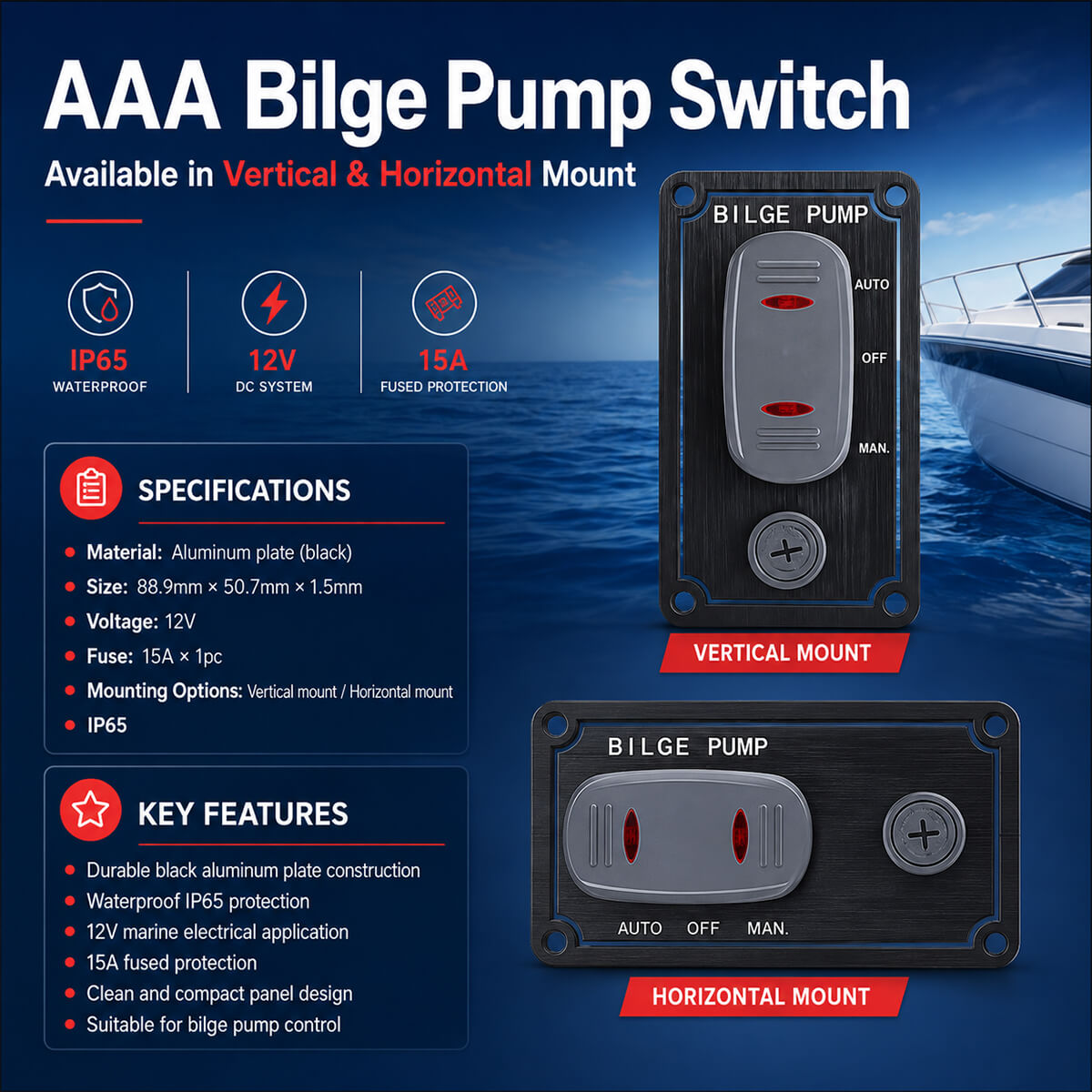

The vertical-mount and horizontal-mount versions make it easier to maintain a consistent, readable layout across different boat control panels. Select the Vertical Mount version when the panel opening and label orientation suit a portrait layout; select the Horizontal Mount version when a landscape arrangement fits the available space better. Whether fitted on a leisure boat, fishing boat, yacht, tender, small craft or workboat, the AAA Bilge Pump Switch provides a dedicated, labelled bilge control point without adding unnecessary complexity. It is a focused marine bilge pump switch for 12V systems, with a black aluminum panel, 15A fuse, IP65 rating and two mounting-orientation choices.

Key Features:

• Dedicated 12V bilge pump switch panel for marine electrical systems.
• Three-way Auto / Off / Manual control layout.
• Manual position has a spring return to Off when released.
• Auto position remains selected for automatic control.
• Black aluminum plate construction.
• Built-in 15A fuse: 1 piece.
• IP65-rated panel configuration.
• LED indication on the switch configuration.
• Compact panel size: 88.9mm × 50.7mm × 1.5mm.
• Two variants available: Vertical Mount and Horizontal Mount.

Applications / Suitable For:

• 12V bilge pump control panels on motorboats and sailing boats.
• Yacht, cruiser and fishing-boat helm stations.
• Cabin, console or utility-area bilge pump controls.
• Tenders, small craft and workboat electrical panels.
• New installations or replacement of a dedicated bilge switch where the panel orientation matches the selected vertical or horizontal variant.

FAQs:

Q: What is the difference between the vertical and horizontal versions?
A: Both versions have the same listed 12V specification, black aluminum panel, 15A fuse, IP65 rating, and 88.9mm × 50.7mm × 1.5mm size. The difference is the panel orientation: Vertical Mount uses a portrait layout, while Horizontal Mount uses a landscape layout.

Q: Can this three way bilge pump switch be used on a 24V boat?
A: No. The supplied product information lists this bilge switch for 12V operation only.

Q: Is a fuse included with the AAA Bilge Pump Switch?
A: Yes. The switch is listed with one 15A fuse.

Q: How does Manual mode work?
A: The Manual position is spring-return, so it returns to Off when the control is released. The Auto position remains fixed when selected.
