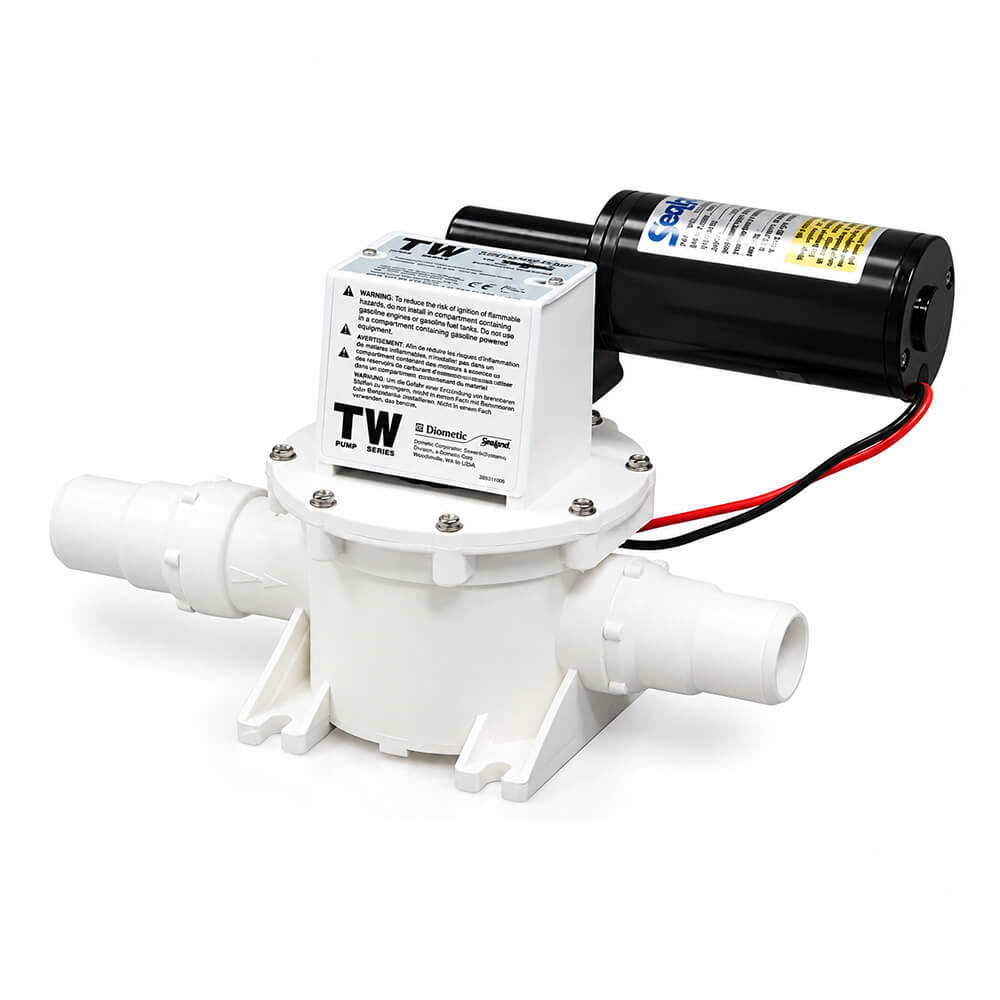

Dometic T-Series TW12 Marine Waste Discharge Pump – 12V is a holding tank discharge pump designed to move stored toilet waste through a boat’s sanitation discharge system. It connects to the waste tank discharge line and transfers the contents towards the system’s discharge outlet. This Dometic waste discharge pump serves a different purpose from a toilet flushing pump: it empties the holding tank after waste has been collected. For buyers searching for a marine toilet pump, understanding this distinction helps identify the correct equipment for the job. The TW12 is intended for holding tank discharge and must not be used as a VacuFlush toilet vacuum pump.

Powered by 12V DC, the pump draws an average of 6 amps and has a stated flow rate of 300 US gallons per hour, approximately 1,136 litres per hour. These figures help boat owners and marine installers assess the electrical requirements and pumping capacity when planning a sanitation installation or replacing an existing discharge pump. Its ability to run dry without damage is useful as the holding tank empties and liquid stops reaching the inlet. The self-priming design provides suction lift of up to 10 feet, allowing installation above the holding tank when the plumbing arrangement follows the manufacturer’s instructions. Actual pumping performance depends on the installation, including suction and discharge lift.

The TW12 uses a bellows-type diaphragm mechanism to move wastewater and can pass solids up to ½ inch, approximately 12.7 mm. Its 1½-inch connections accommodate sanitation plumbing, making connection size an important consideration when matching the pump to an existing boat waste system. The bellows and duckbill valves form part of the pumping assembly, directing waste through the discharge line. This construction makes the product relevant to buyers looking for a holding tank pump, boat waste pump, or marine sanitation discharge pump. Before ordering a replacement, check the existing hose size, available mounting space, electrical supply, and discharge route rather than choosing by the general term “Dometic pump” alone.

Installation planning is particularly important in enclosed boat compartments, where access to hoses, wiring and serviceable components may be limited. Dometic specifies horizontal mounting with the motor on top, using a suitable floor, deck or shelf. Vertical mounting with the discharge side upwards, or mounting on the pump’s side, may reduce efficiency. The manufacturer also recommends positioning the pump above the holding tank to reduce waste overflow during maintenance. For the 12V version, the installation instructions specify 10-amp fuse or circuit-breaker protection. The discharge route must remain open during pumping because operation against a closed seacock can damage the duckbill valves. These details help installers plan a serviceable holding tank discharge arrangement.

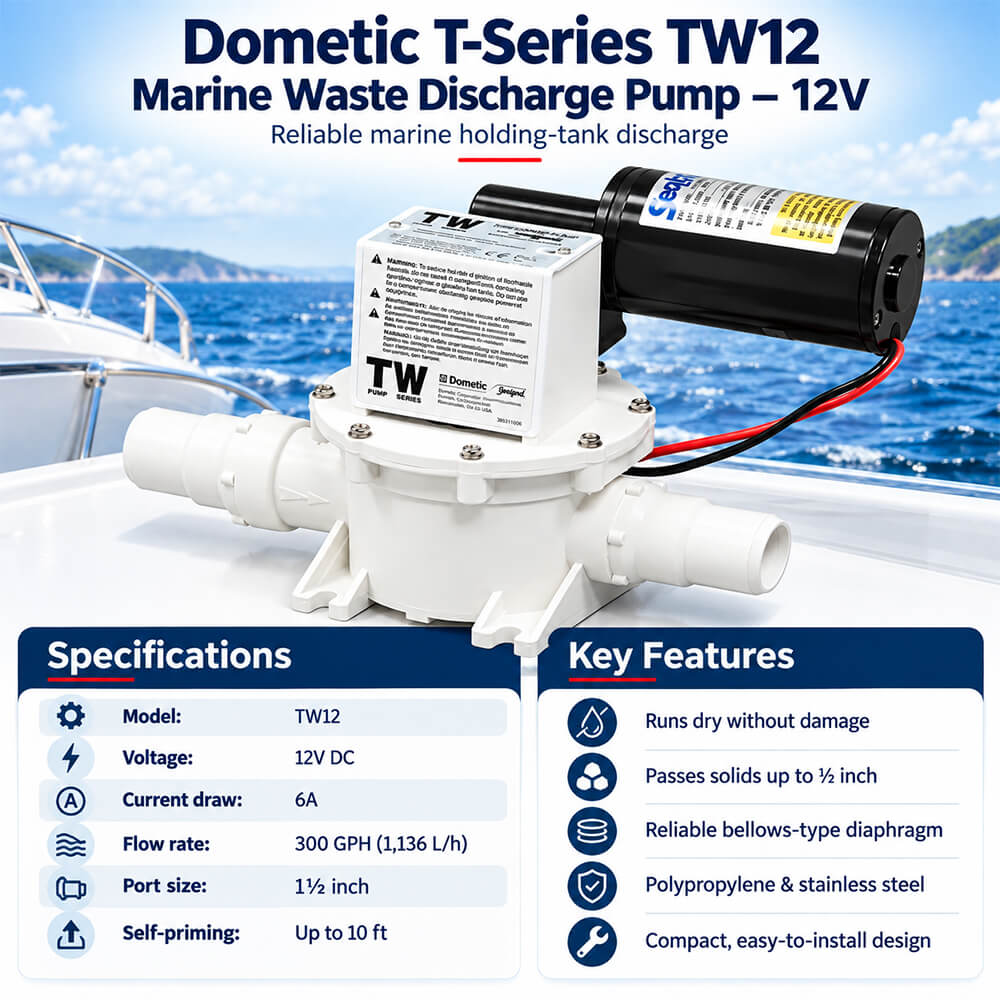

Key Features:

• Dometic T-Series TW12 Marine Waste Discharge Pump – 12V combines a self-priming bellows mechanism with 12V DC operation for emptying marine waste holding tanks.
• Stated flow rate: Moves 300 US gallons per hour, approximately 1,136 litres per hour, with installation conditions affecting delivered performance.
• Average electrical draw: Uses 6 amps at 12V DC, with 10-amp circuit protection specified in the installation instructions.
• Dry-running capability: Can run dry without damage when liquid is no longer reaching the pump inlet.
• Waste-handling design: Passes solids up to ½ inch through a bellows-type diaphragm pumping mechanism.
• Sanitation connections: Uses 1½-inch plumbing connections; check the existing hose and fittings before installation.
• Self-priming operation: Allows placement above the holding tank within the manufacturer’s suction-lift and installation limits.

Applications / Suitable For:

• Dometic T-Series TW12 Marine Waste Discharge Pump – 12V is suitable for boat and yacht holding tank discharge installations with a compatible 12V DC electrical supply and sanitation plumbing.
• Marine toilet waste systems: Empty waste collected in a holding tank as part of the vessel’s sanitation arrangement.
• Replacement projects: Suitable for consideration when replacing a holding tank discharge pump, after checking voltage, connection size, mounting position, and discharge requirements.
• Sanitation refits: Supports installations where the pump can be positioned above the tank and accessible for inspection or maintenance.

FAQs:

Q: What does this pump do?
A: Dometic T-Series TW12 Marine Waste Discharge Pump – 12V transfers stored toilet waste from a holding tank through the sanitation discharge line.

Q: Can it replace a VacuFlush vacuum pump?
A: No. Dometic specifically states that this discharge pump must not be used as a VacuFlush toilet vacuum pump.

Q: What voltage and hose size does it use?
A: It operates on 12V DC and uses 1½-inch sanitation plumbing connections. Check the complete installation requirements before fitting.

Q: Can the TW12 run dry?
A: Yes. Dometic confirms dry-running capability without damage. This does not mean the pump can operate against a closed discharge valve.
